SATA RAID Setup Procedure
1. Go to the operable computer running Windows XP
and insert a prepared formatted blank 3.5" 1.44MB
floppy diskette.
2. Insert the Device Drivers & Utilities + User's Manual
CD-ROM into the CD/DVD drive of the operable
computer.
3. Click Start (menu)
(Browse..)
D:\Others\f6flpy\f6flpy32\F6flpy32.exe and click
OK.
4. Make sure the formatted blank 3.5" 1.44MB floppy
diskette i s inserted, and click OK.
5. A SATA RAID driver diskette will now be created
for you.
6. Remove the SATA RAID driver diskette.
7. Attach the external USB CD/DVD device drive
(containing the Microsoft Windows OS CD) to the
computer.
8. Start-up your notebook computer and press <F2> to
enter the BIOS.
9. Go to the Advanced menu.
10. Select "Advanced Chipset Control" and press
Enter.
11. Select "SATA RAID Function:" and press Enter,
then select "Enabled" and press Enter.
> Run... and navigate
to
Windows XP Information
12. Press Esc and go to the Boot menu.
13. Set the external CD/DVD-ROM Drive (make sure
the Microsoft Windows OS CD is inserted) as the
first device in the boot order from the Boot Device
menu.
14. Attach the external USB floppy disk drive to one of
the notebook computer's USB ports.
15. Select Exit Saving Changes from the Exit menu
(or press F10 and Enter) and press Enter to exit the
BIOS and reboot the computer.
16. Press Ctrl + i to enter RAID configuration menu.
17. Select 1.Create RAID Volume and press Enter.
Intel(R) Matrix Storage Manager option ROM v5.0.0.9046 ICH7R
Copyright (C) 2003-04 Intel Corporation. All Rights Reserved.
[ MAIN MENU
1. Create RAID Volume
2. Delete RAID Volume
3. Reset Disks to Non-RAID
4. Exit
[ DISK/VOLUME INFORMATION ]
RAID Volumes:
None Defined
Physical Disks:
Port Drive Model Serial #
0 FUJITSU MHV2040B NW56T5C25FAF
2 FUJITSU MHT2060B NR0UT52256W7
[ ]-Select [ESC]-Exit

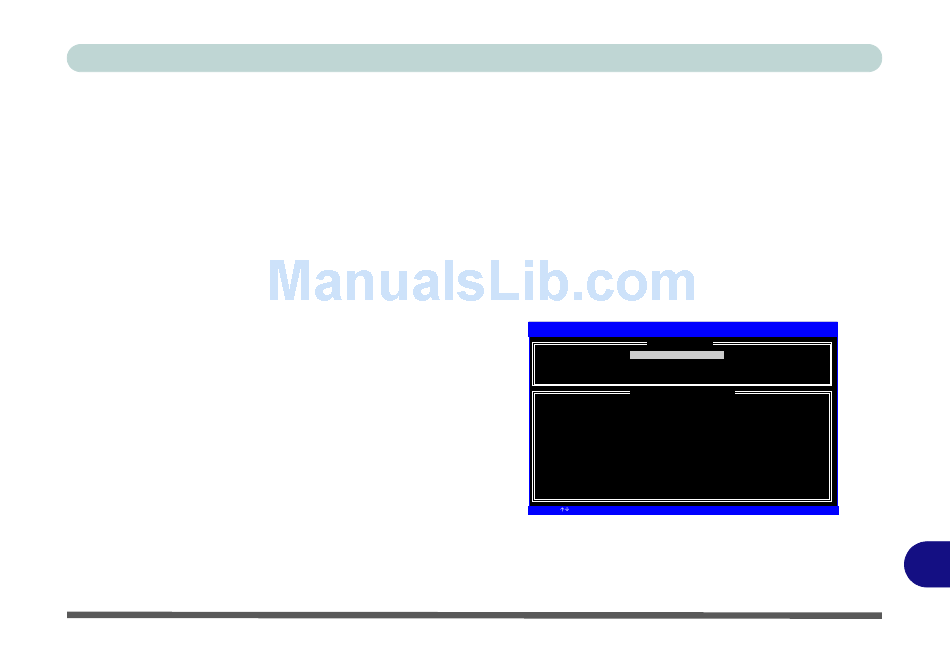

Figure D - 18
- Intel(R) Matrix Storage Manager
18. Type the RAID volume name and then press Tab
or Enter to advance to the next field.
Setting Up SATA RAID D - 35
]
Size Type/Status(Vol ID)
37.3GB Non-RAID Disk
55.9GB Non-RAID Disk
[ENTER]-Select Menu
