Quick Start Guide
1

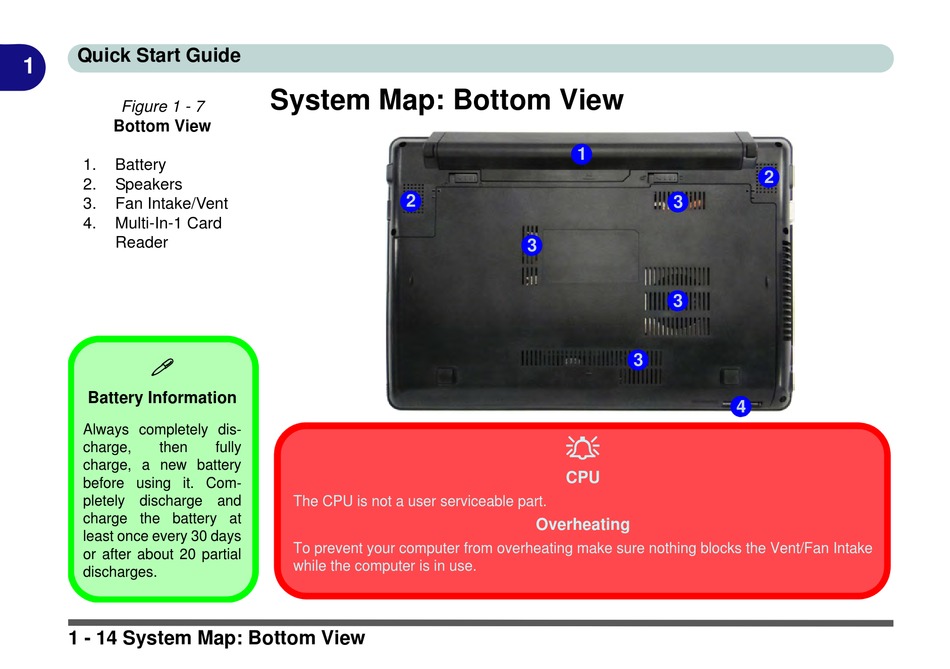

Figure 1 - 7
Bottom View
1. Battery
2. Speakers
3. Fan Intake/Vent
4. Multi-In-1 Card
Reader

Battery Information
Always completely dis-
charge, then
charge, a new battery
before using it. Com-
pletely discharge and
charge the battery at
least once every 30 days
or after about 20 partial
discharges.

1 - 14 System Map: Bottom View

System Map: Bottom View
fully
The CPU is not a user serviceable part.
To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake
while the computer is in use.
1
2
3

CPU
Overheating
2
3
3
3
4
