EUROCOM Notebook V12.1.10 User Manual page 109

1. Turn off the computer, and turn it over and remove the battery (see page
bottom cover (see page
2. Remove the screw
1
3. Slide the hard disk assembly in the direction of arrow
(gold colored) HDD connector
6 - 6).
.
.
3
1
Upgrading The Computer
6 - 4) and
until you can see the
2
2
3
Upgrading the Hard Disk Drive 6 - 9

Hard Disk Handling
Do not press down on the
center off the hard disk as
this area houses the hard
disk drive motor.

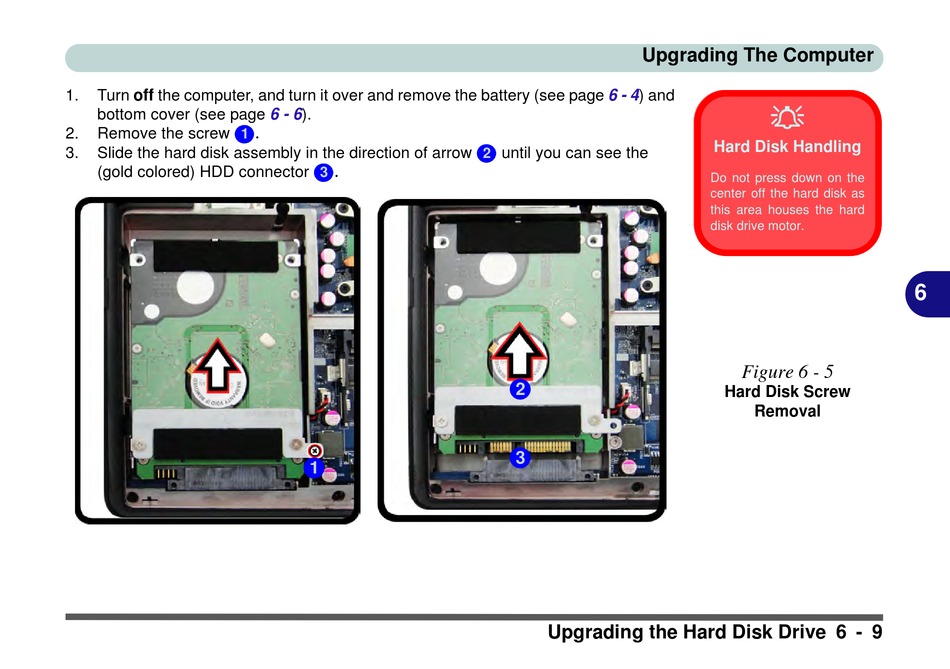

Figure 6 - 5
Hard Disk Screw
Removal
6
