EUROCOM Notebook V12.1.10 User Manual page 57

Expert Mode will allow you to access more advanced configuration menus for
Speaker, Microphone and Stereo Mix.
Also see "THX TruStudio Pro Audio" on page 7 - 43
information.
Note that to adjust the Left & Right volume balance independently click the Sync
Left and Right Volume icon (it should be faded) and adjust the slider as required.
for more audio configuration
Features & Components

Syncing Left & Right
Volume
Balance
If you wish to adjust the left
and right channel volume
levels separately, you will
need to adjust this from the
VIA HD Audio Deck in Ex-
pert Mode.
Click Speaker in VIA HD
Audio Deck (in Expert
Mode) and click the Sync
Left and Right volume
button (see left). You can
then adjust the volume slid-
ers independently (this set-
ting also controls
Balance setting in the Win-
dows Sound control pan-
el).

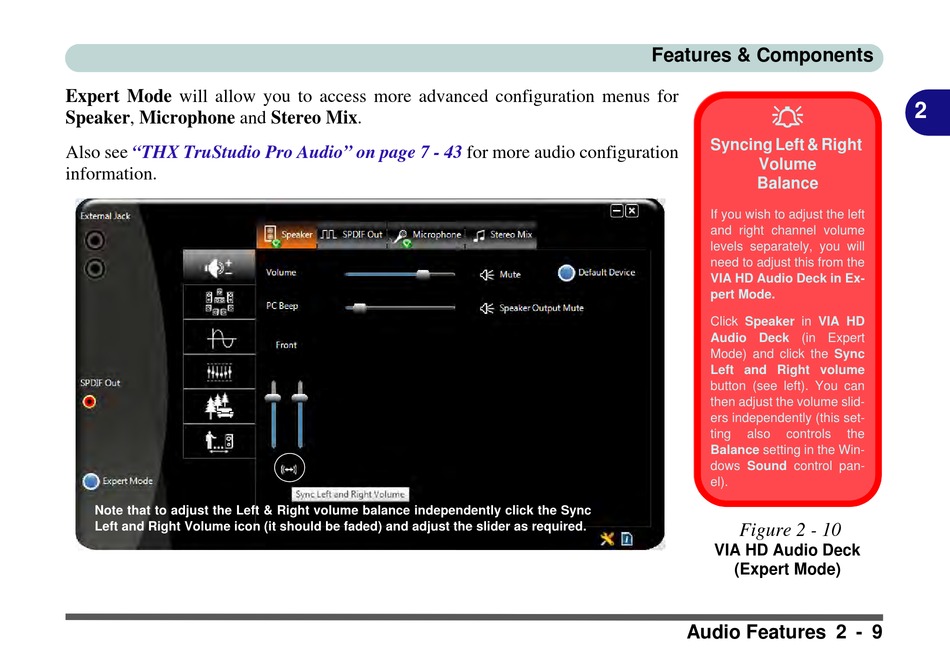

Figure 2 - 10
VIA HD Audio Deck
(Expert Mode)
Audio Features 2 - 9
