Removing The Component Bay Cover - EUROCOM Notebook V12.1.10 User Manual

Upgrading The Computer

Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.
6

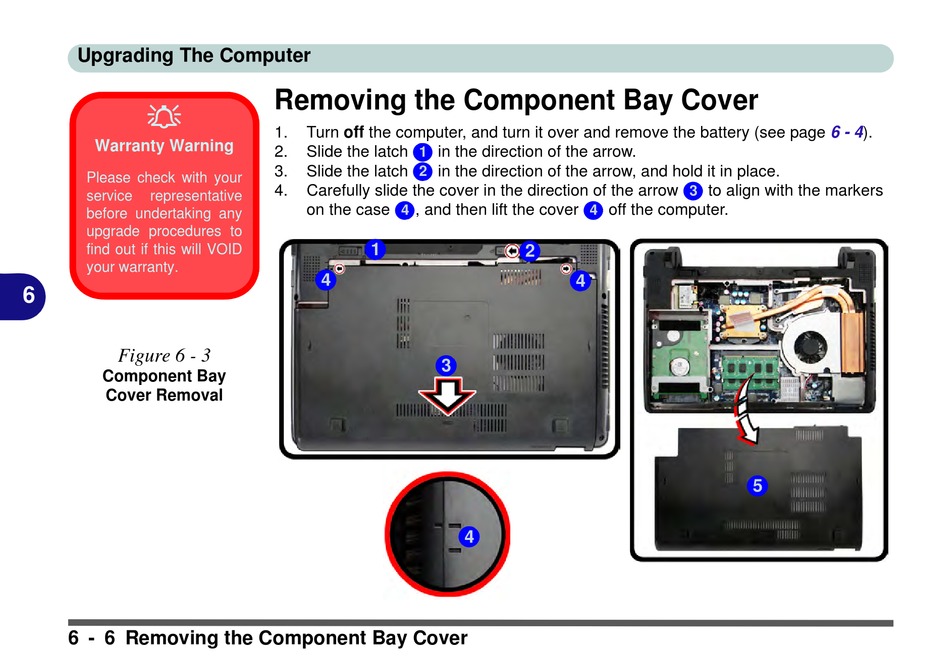

Figure 6 - 3
Component Bay
Cover Removal

6 - 6 Removing the Component Bay Cover

Removing the Component Bay Cover
1. Turn off the computer, and turn it over and remove the battery (see page
2. Slide the latch in the direction of the arrow.
1
3. Slide the latch in the direction of the arrow, and hold it in place.
2
4. Carefully slide the cover in the direction of the arrow
on the case , and then lift the cover
4
1
4
3
off the computer.
4
2
4
4
6 - 4).
to align with the markers
3
5
