Upgrading The Computer

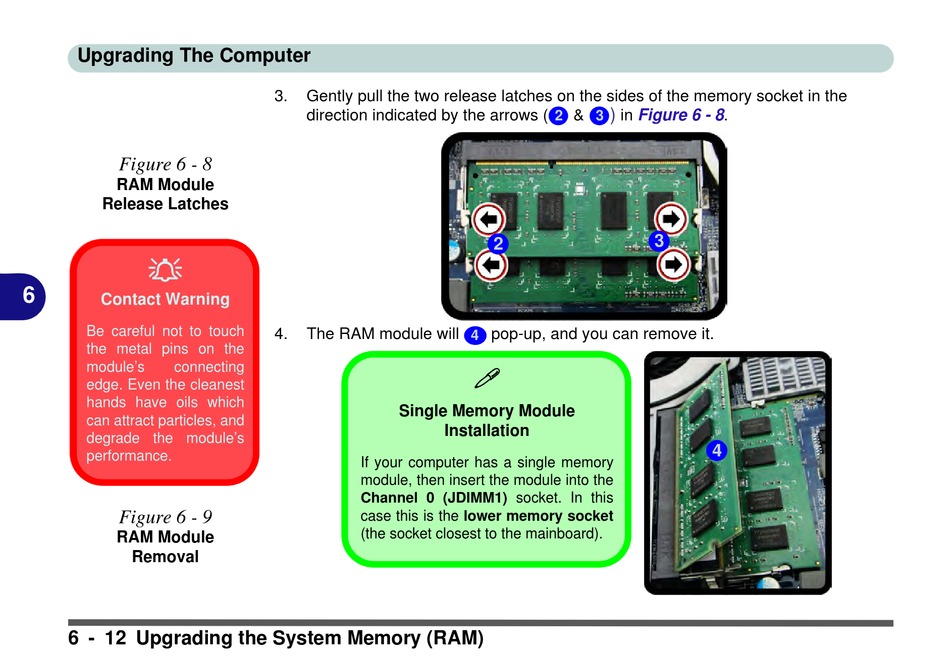

Figure 6 - 8
RAM Module
Release Latches

6
Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module's
performance.
Figure 6 - 9
RAM Module
Removal
6 - 12 Upgrading the System Memory (RAM)
3. Gently pull the two release latches on the sides of the memory socket in the
direction indicated by the arrows (
4. The RAM module will
Single Memory Module
Installation
If your computer has a single memory
module, then insert the module into the
Channel 0 (JDIMM1) socket. In this
case this is the lower memory socket
(the socket closest to the mainboard).
)
& in Figure 6 -
2 3
2
pop-up, and you can remove it.
4

8.
3
4
