Upgrading The Computer

Hard Disk Handling
Do not press down on the
center off the hard disk as
this area houses the hard
disk drive motor.
6

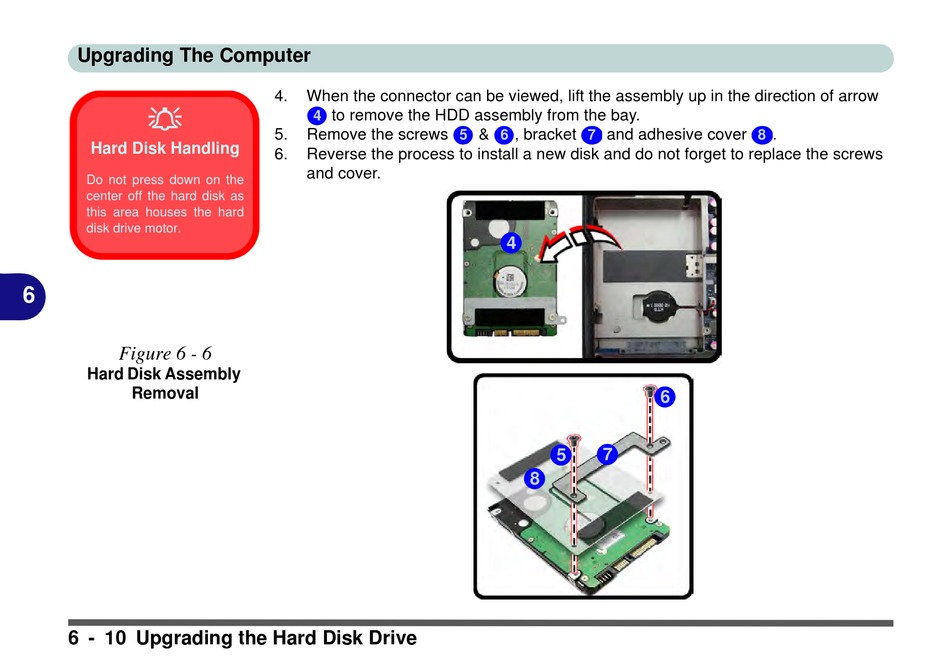

Figure 6 - 6
Hard Disk Assembly
Removal
6 - 10 Upgrading the Hard Disk Drive
4. When the connector can be viewed, lift the assembly up in the direction of arrow
to remove the HDD assembly from the bay.
4
5. Remove the screws
6. Reverse the process to install a new disk and do not forget to replace the screws
and cover.
& , bracket and adhesive cover
5 6 7
4
5 7
8
.
8
6
