Control Room
The MC's Control Room section switches the output between Nuendo's Monitor bus-
ses (output busses going to speakers). The MC's Main Spkrs/Alt 1 Spkrs/Alt 2 Sp-
krs buttons switch the output between the first three monitor busses created. The
fourth Monitor bus is accessed by opening the Control Room window in Nuendo
(Devices->Control Room) and clicking the D button (bottom-right).
The Dim key lowers the volume to the selected Monitor bus by the specified Dim level
(default = -30 dB). The Dim level can be adjusted in the Nuendo Control Room window.
The Cut key cuts the output to the selected Monitor bus.
The Soft Knob controls the level of the selected Monitor bus. When the knob is touched
or adjusted the level appears in the LCD display to the right of the knob.
Monitor
The Monitors section controls the levels of Nuendo's four Studio busses, which can
also be selected as sources for the Control Room section. This allows dynamic adjust-
ments of the headphone feeds to the musicians. The name of the Studio bus being ad-
justed appears in the LCDs next to the two Soft Knobs. Move the knob to adjust the
output level for that Studio bus and the output level appears in the LCD. To switch be-
tween monitoring Studio busses 1/2 and Studio busses 3/4, press the up or down arrow
keys and the LCDs update to show which Studio busses are being controlled.
11.2.3

MC Control Room and Monitor Setup

Control Room Setup

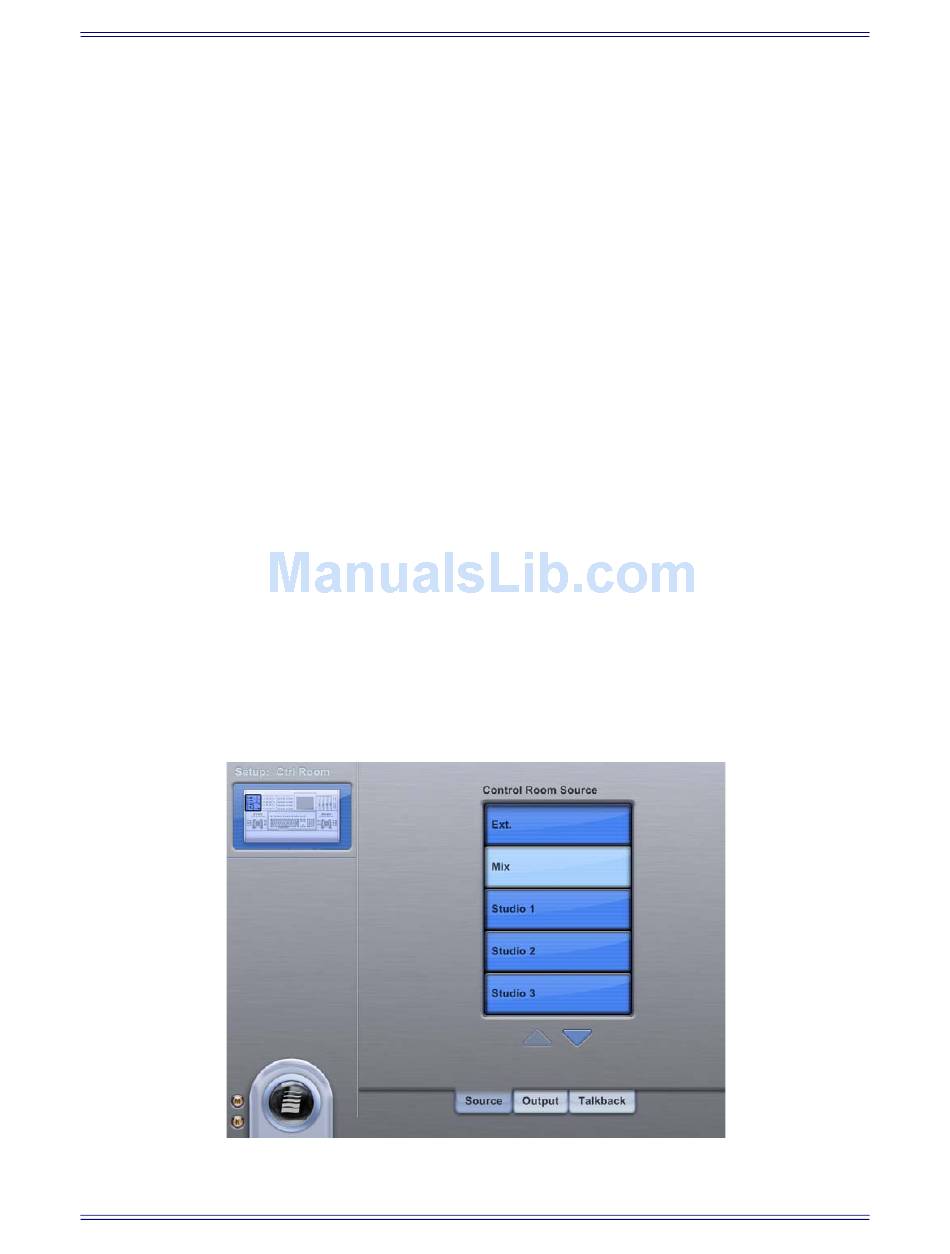

Figure 11-4 Source tab in Control Room Setup Touchscreen
