Euphonix Media Application Controller Operation Manual
8.2

Monitors

The Monitors section of the MC surface can control up to two monitor outputs per page,
labeled Monitor A and B in SME. Audio sources for Monitor A and B are configured
in SME's Main tab or the MC's Touchscreen (see page 74).
Touch-sensitive Knobs: These knobs control the level (displayed in the LED display
to the right of the knob) of their respective monitor outputs.
Up/Down Arrow Buttons: These buttons switch the knobs from controlling the first
two outputs to controlling the second two outputs.
Setup: This key opens the Monitor Setup Touchscreen. Toggle selected Monitor A and
B audio source(s) from the list displayed on the Touchscreen.
The top-right unmarked key is currently not implemented.

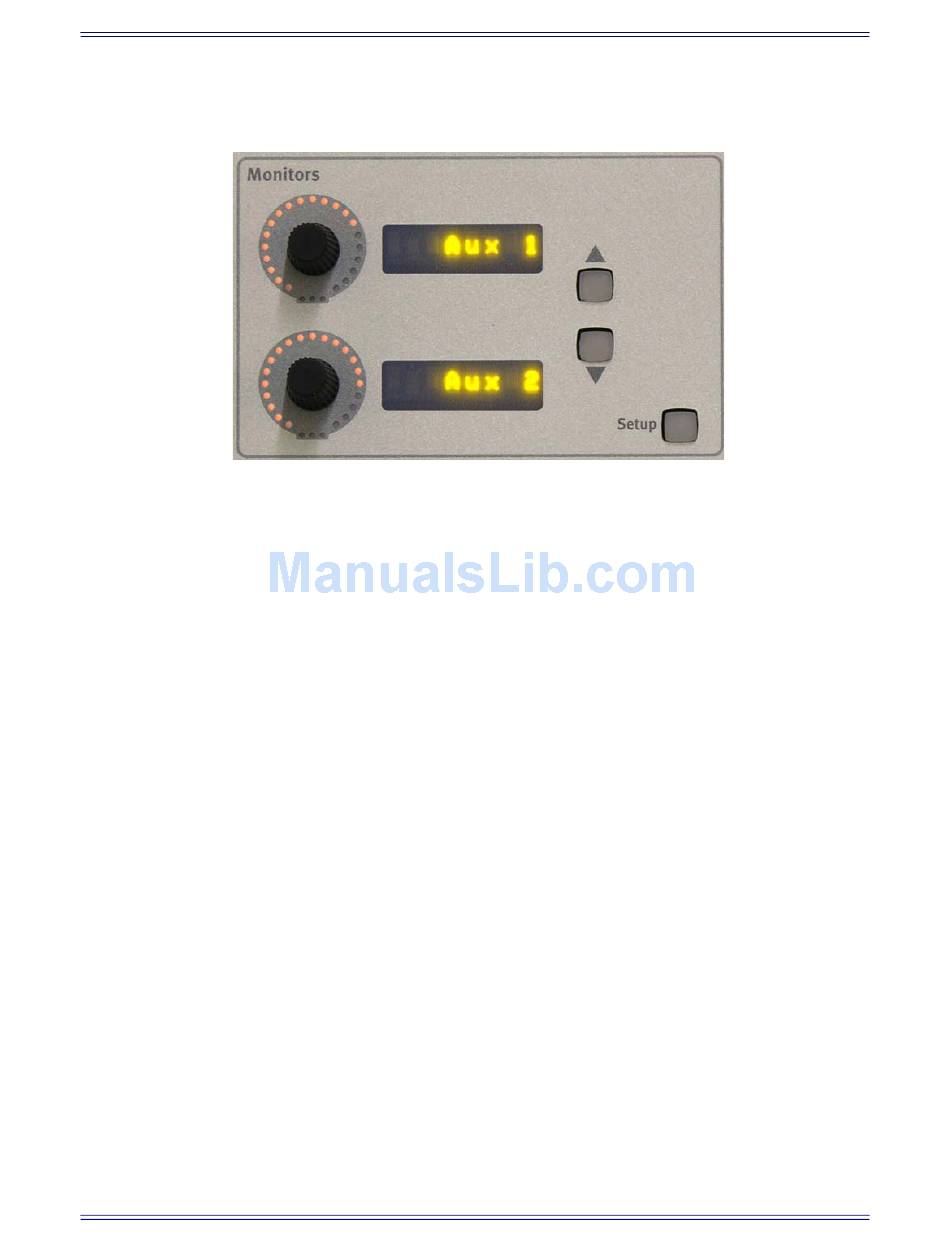

Figure 8-3 Monitors Section
71
Monitors and Control Room
