Main

Main tab controls:
• mapping of Sources created in the Sources tab (page 75) to Control Room,
Monitor A and Monitor B, also selectable from the MC Monitor section's
Touchscreen.
• monitor level sliders, control levels to Control Room, Monitor A, Monitor B,
and correlates to the two Monitors knobs in the MC's Monitors section.
• Cut: Cuts the Control Room signal completely; correlates to MC's Cut button.
• Dim: Select the checkbox to attenuate the signal to the Dim Level set in the
Config tab (page 80).
• Fix: Select the checkbox to set the signal to the Fixed Level set on the Config
tab; correlates to MC's Dim button (page 80).
• Phase: Select the checkbox to reverse the phase of the left channel (no surface
control for this parameter).
Only sections created in the Sources tab appear in the Source boxes (Figure 9-1). To
route a Source to a specific Monitor section, select it in the Source box for the desired
monitor output.
When the workstation and MC are connected, the changes made in this tab are reflected
in the Monitor and Control Room section on the surface, and vice versa.

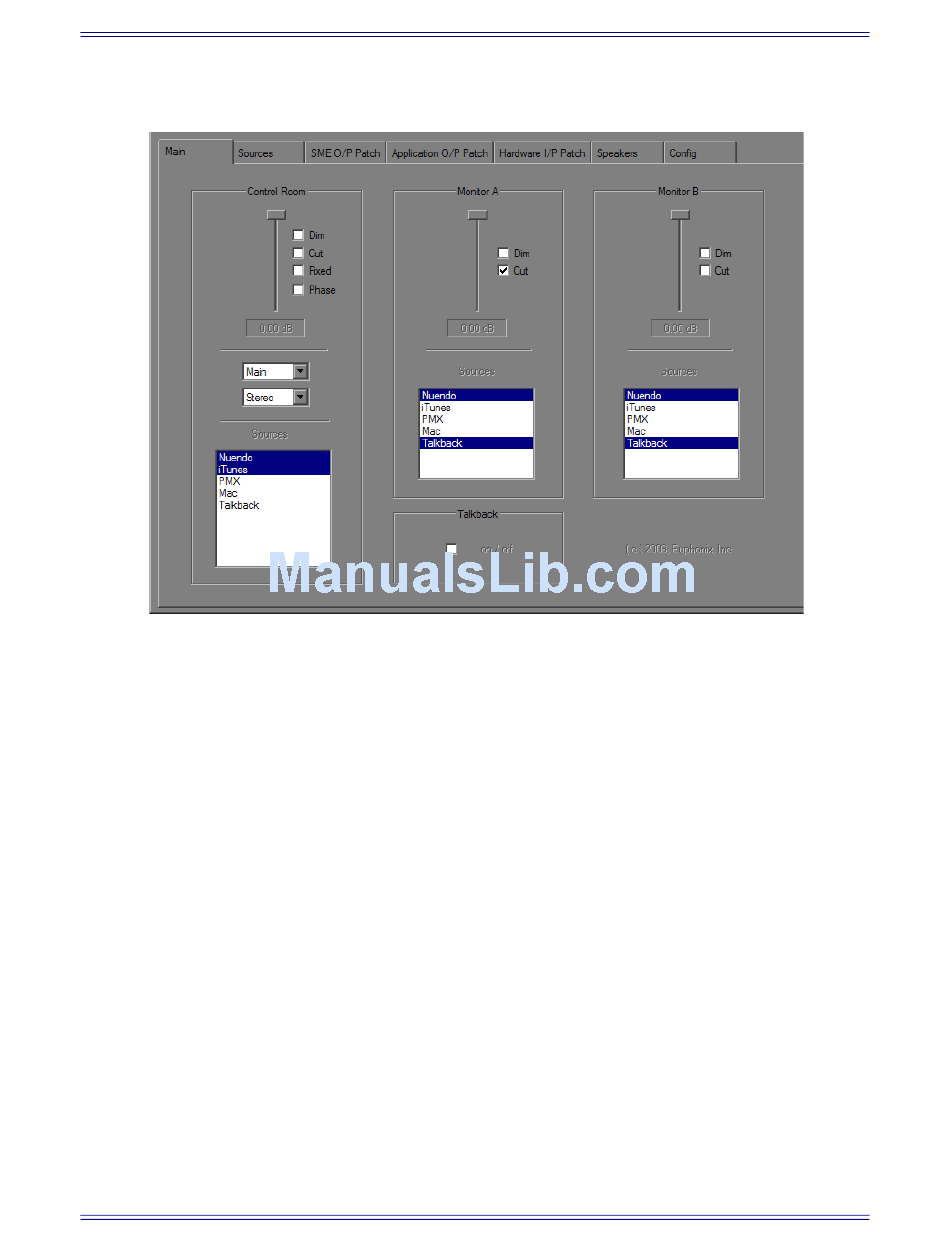

Figure 9-1 Main Tab
