Euphonix Media Application Controller Operation Manual Soft Keys

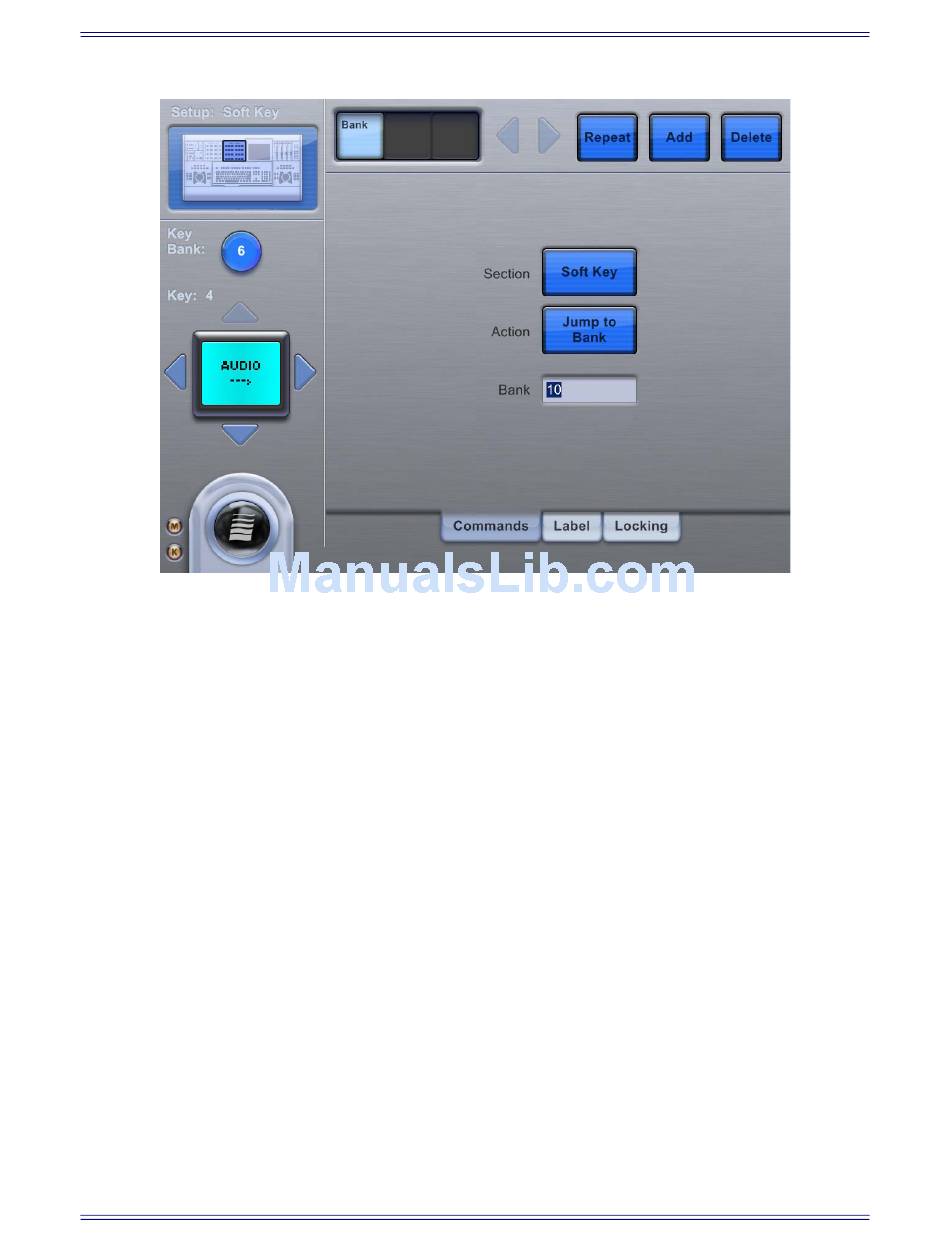

Figure 5-6 Setup-Bank Switch Commands Touchscreen
This Touchscreen sets a Soft Key to jump to a specific Soft Key bank and determines
which MC Soft Key sections are affected by that bank switch.
Touch the Action button to change the bank switch action. A popup menu selects the
next, previous, or another bank. The current bank is shown to the left above the image
of the Soft Key being edited.
When the Action button is set to Jump To Bank, enter the desired bank number in the
command box below the Action button.
Touch the Section button to choose which section should switch banks. A popup menu
chooses between the Left Edit, Right Edit, or Soft Key sections. This functionality al-
lows the Soft Key's command to change only one of the MC's Soft Key sections to an-
other bank (i.e., the Right Edit changes from Transport to Edit controls) while having
no effect on the other Soft Key sections.
Assigning a Bank Jump function to Soft Key does not automatically generate its label.
See Label on page 49 to assign an appropriate label to the Soft Key.
47
