10.3

Patching

The Patching tab routes the SME inputs from applications running on the Macintosh
that are using the Euphonix Monitor Core Audio driver, external inputs to the worksta-
tion's sound card, and the SME outputs.
The Input section (left) has eight selectable inputs from application outputs, and eight
selectable inputs from the audio device (sound card) installed in your workstation. Each
application used with SME must be set to use the Euphonix Monitor Core Audio driver.
WARNING: Only one application may use the Euphonix Monitor Core Audio driver at
The Output section (right) sets the sound card outputs to which the SME's Main, Alt 1,
Alt 2, Monitor A, and Monitor B outputs are routed. For example, to change a 5.1 out-
put from L-C-R-Ls-Rs-LFE to L-R-Ls-Rs-C-LFE, you can change the output routing
instead of physically repatching the outputs to your monitors.

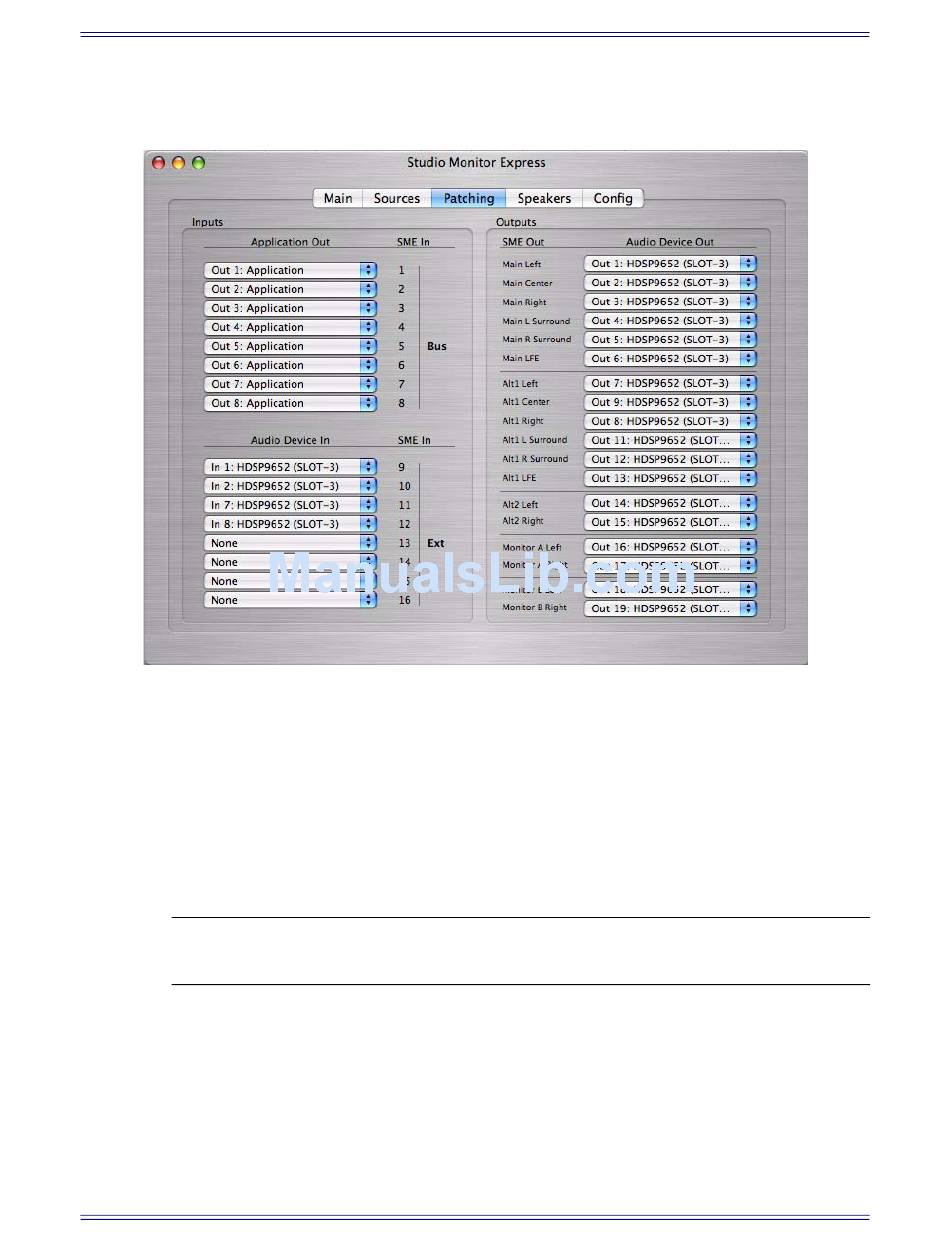

Figure 10-3 Patching Tab
a time.
86
Studio Monitor Express (Mac)
