Euphonix Media Application Controller Operation Manual
6.2

Assignable Knob

The Assignable Knob can control most knob or switch parameter values in Nuendo or
Logic Pro. In Nuendo, move the cursor over a parameter on the host screen to assign it
to the Assignable Knob. With Logic Pro, you must click the parameter to assign it to
the Assignable Knob. Repeat these functions to assign to other parameters in these
DAWs.
Press the knob top to lock the current parameter onto the Assignable Knob and light the
Lock LED. The cursor can now be moved to control other DAW parameters while the
Assignable Knob remains in control of the locked parameter. Press the knob top again to
unlock the parameter, which frees up the Assignable Knob to control another parameter.
NOTE: Pyramix does not currently support the Assignable Knob. Apple Logic Pro
users must click the parameter to control first; the Assignable Knob will then
function as described.
6.3

Changing Knobsets

If the Workstation Tracks Knobset Changes preference is set (Preferences-General
touchscreen), the DAW is notified whenever a knobset is selected on the MC or a
CM408T module. This allows the DAW to show the function on the host screen. When
entering a plug-in window, the DAW will open that plugin window if the Open plugins
on entering workstation when editing preference is selected and close it upon leaving
the Insert knobset if the Close plugins on workstation when exiting is selected.

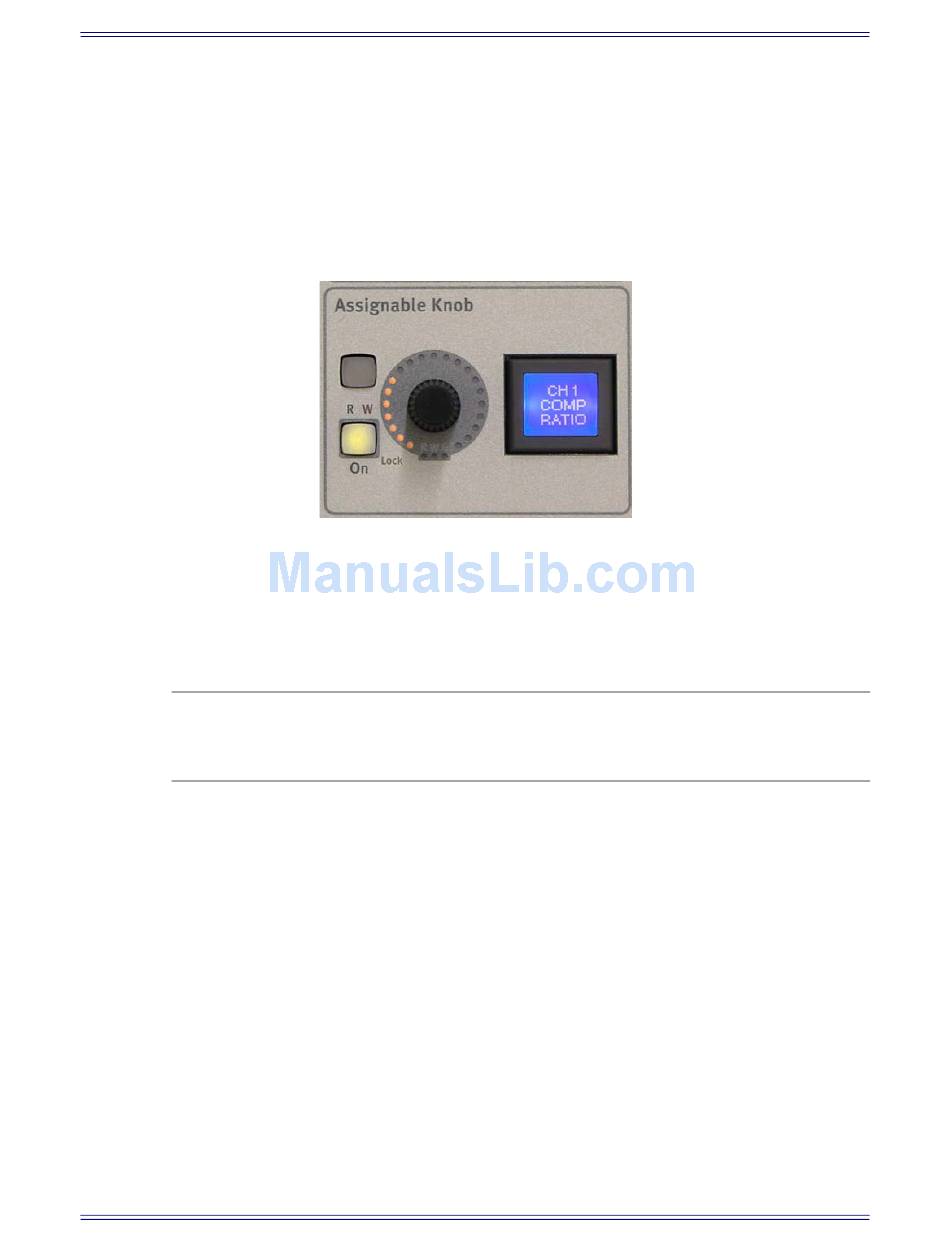

Figure 6-2 Assignable Knob
58
Soft Knobs
