Euphonix Media Application Controller Operation Manual
The Touchscreen in Figure 2-5 opens and displays all workstations available on
the network. Each workstation must have MC Client running to be available to
the MC.
2. Touch the desired Workstation Key on the left of the Touchscreen.
3. Touch the Workstation name in the list to assign it to the selected number.
4. To disconnect the MC from its current workstation, touch the Workstation key
mapped to that workstation, then touch None/Disconnect.
The assignment is relinquished and the MC disconnects from the workstation.
5. To view all Workstations, use the up/down arrows to scroll.
6. Repeat Steps 2 and 3 to assign additional Workstations.
7. Press the Strip Control Setup key again to exit Workstation assignment mode.
8. Press one of the Workstations keys (Figure 2-3) to connect to that Workstation.

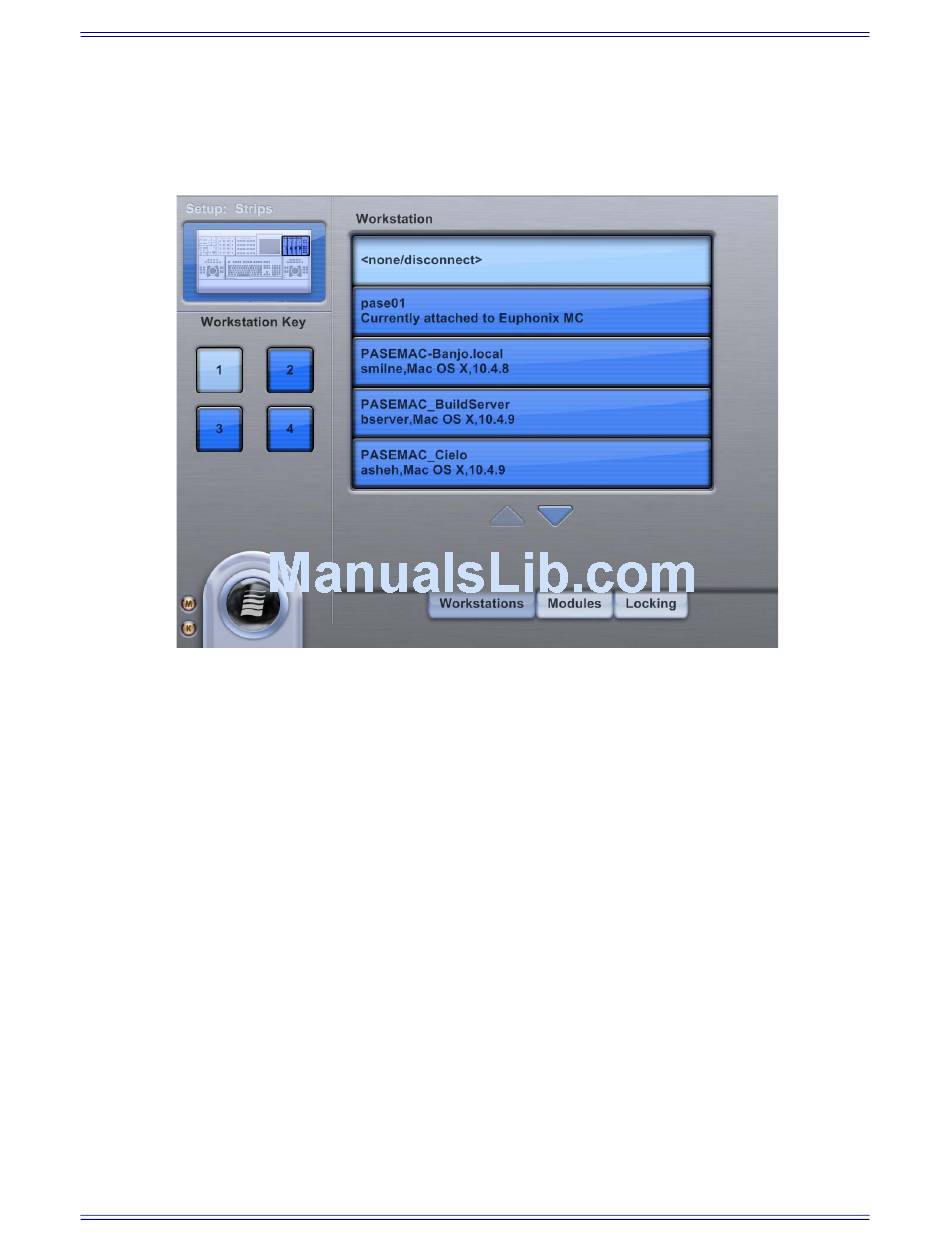

Figure 2-5 Workstation Touchscreen
24
Installation and Configuration
