Euphonix Media Application Controller Operation Manual
2.1.2

Rear Panel Connections

VGA KEYBOARD
VGA and
USB
Keyboard
DC In: Connect the included DC power supply here. The supply is world-compatible
(accepts 100–240 V, 50/60 Hz) and draws 150 W maximum.
WARNING: Attach power supply to the MC BEFORE plugging into AC power or the
LAN (RJ-45): Network port for connecting to router (Netgear RP614 in standalone
MC setups, or SonicWALL PRO 1260 for System 5-MC). Use CAT5 or better cable.
USB: Connect external storage devices for data backup and software updates. Also
used to connect Ontrak ADU-200 relay interface for multiple workstation setups.
Talkback Mic Output (XLR): Mic-level output for built-in talkback microphone. The
output must be connected to a preamp with 48V phantom power, to obtain line-level
output (phantom power is required because it is a condenser microphone).
Foot Switch (1/4-in Mono): The foot switch mirrors the operation of the Talkback
switch on the MC surface. Connect a standard two-conductor foot switch (like a
MIDI keyboard damper pedal) to the MC Foot Switch jack to toggle Talkback on/
off. (Only on new MCs from March 2007.)
Headphones (1/4-in Stereo): Through connection to front panel headphone connector.
Service VGA and Keyboard (DB15HD, PS2): VGA video and keyboard connection
(for service only).
USB
TALKBACK MIC
Talkback Mic Output

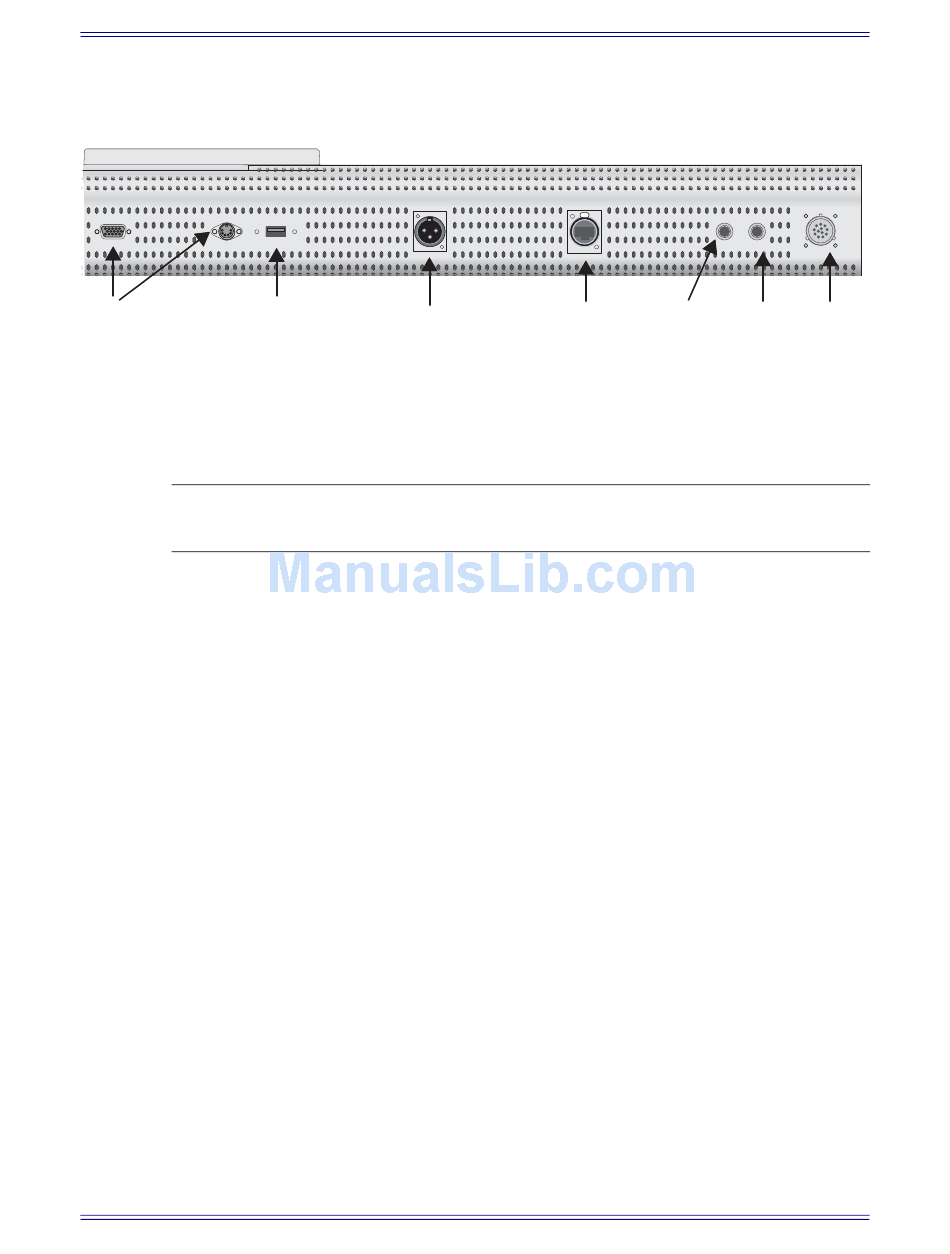

Figure 2-1 MC Rear Panel
unit may be damaged.
LAN LAN
LAN Foot Switch
16
Installation and Configuration
FOOT
SWITCH HEADPHONES
DC IN
Headphone DC In
