Web-based User Interface

The user interface provides access to various Switch configuration and management screens, allows you to view performance
statistics, and permits you to graphically monitor the system status.
Areas of the User Interface
The figure below shows the user interface. The user interface is divided into 3 distinct areas as described in the table below.
Area 2
Area Function
Presents a graphical near real-time image of the front panel of the Switch. This area displays the
Switch's ports and expansion modules. When the Switch is stacked a virtual representation of the
1
Switch stack appears in the right hand portion. Click on the ports in the front panel to manage the
port's configuration or view data for the port.
Select the menu or window to be displayed. The folder icons can be opened to display the
2 hyperlinked menu buttons and subdirectorys contained within them. Click the D-Link logo to go to
the D-Link website.
3 Presents the information or menu selected for configuration or display.
D-Link DES-3326S Layer 3 Switch

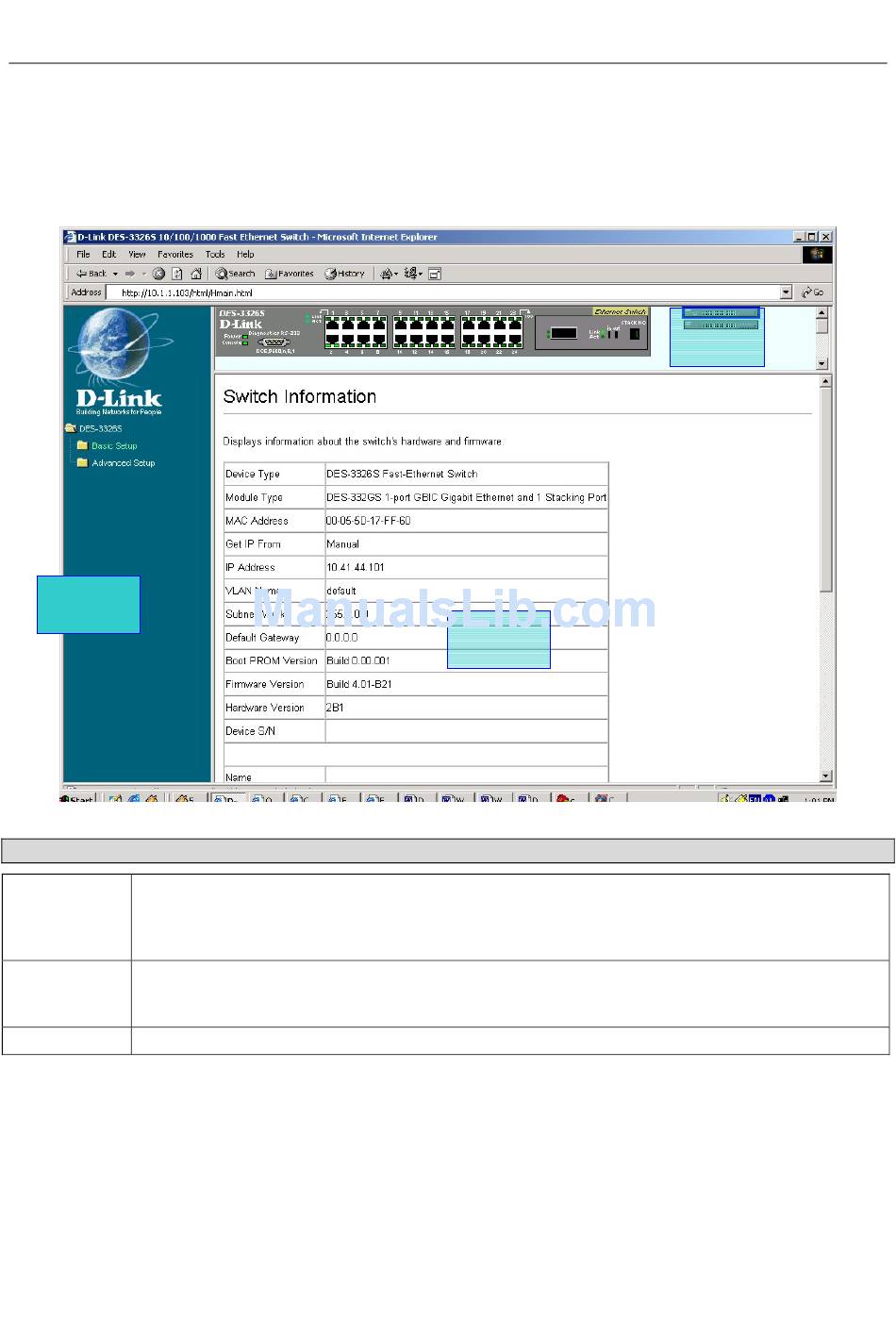

Figure 3- 1. Main Web-Manager window
32
Area 3
Area 1
