D-Link DES-3326SRM - Switch - Stackable Product Manual page 109

Radius Server Settings
Use this menu to configure the settings the switch will use to communicate with a Radius server. To add Radius server settings
click the New button, a separate configuration menu appears. To edit an existing Radius settings index, select it and click the
edit button
The parameters configured for adding and editing Radius settings are the same. See the table below for a description.

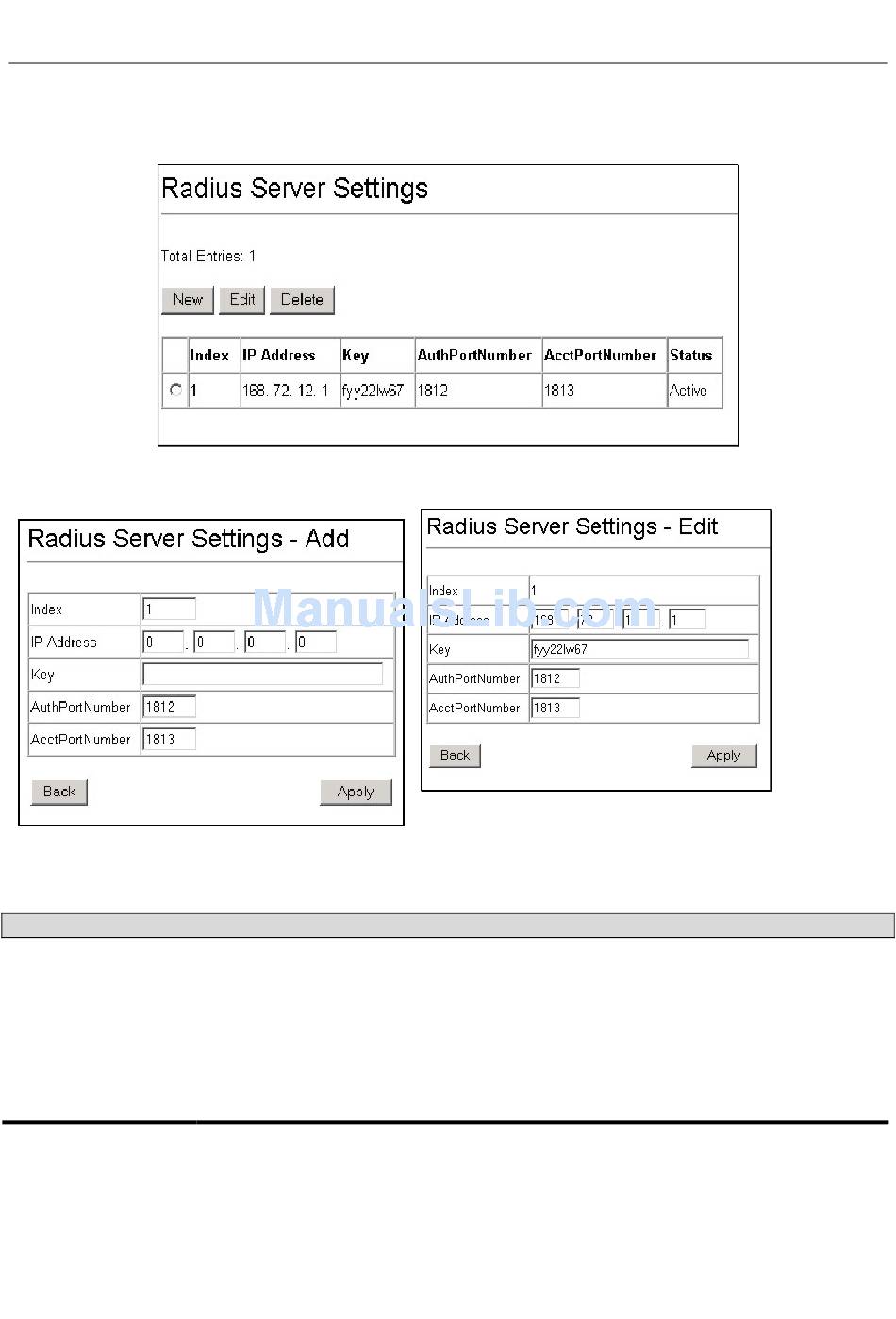

Figure 14- 26. Radius Server – Add
Configure the following Radius server settings when adding or editing:
Parameter
Index
IP Address
Key
AuthPortNumber
AcctPortNumber
D-Link DES-3326S Layer 3 Switch
Figure 14- 24. Radius Server Settings
Description
Radius server settings index. (Not available in the Edit menu).
Type in the IP address of the Radius server.
Type the shared-secret key used by the Radius server and the switch.
characters can be used.
Type the UDP port number for authentication requests. The default is 1812.
Type the UDP port number for accounting requests (if accounting server is being used).
The default is 1813.
Figure 14- 25. Edit Radius Server Settings
99
Up to 32
