The Protocol Independent Multicast − Dense Mode (PIM-DM) protocol can be individually configured for each IP interface on
the switch. The PIM-DM Interface Configurations dialog box will display all of the IP interfaces currently configured on
the switch.
To configure PIM-DM for a given IP Interface, click the corresponding click-box and then click the Edit button:
Configure these parameters for PIM-DM interfaces:
Parameter
Interface Name
IP Address
Hello Interval <30>
Join/Prune Interval <60 >
State <Disabled>
D-Link DES-3326S Layer 3 Switch

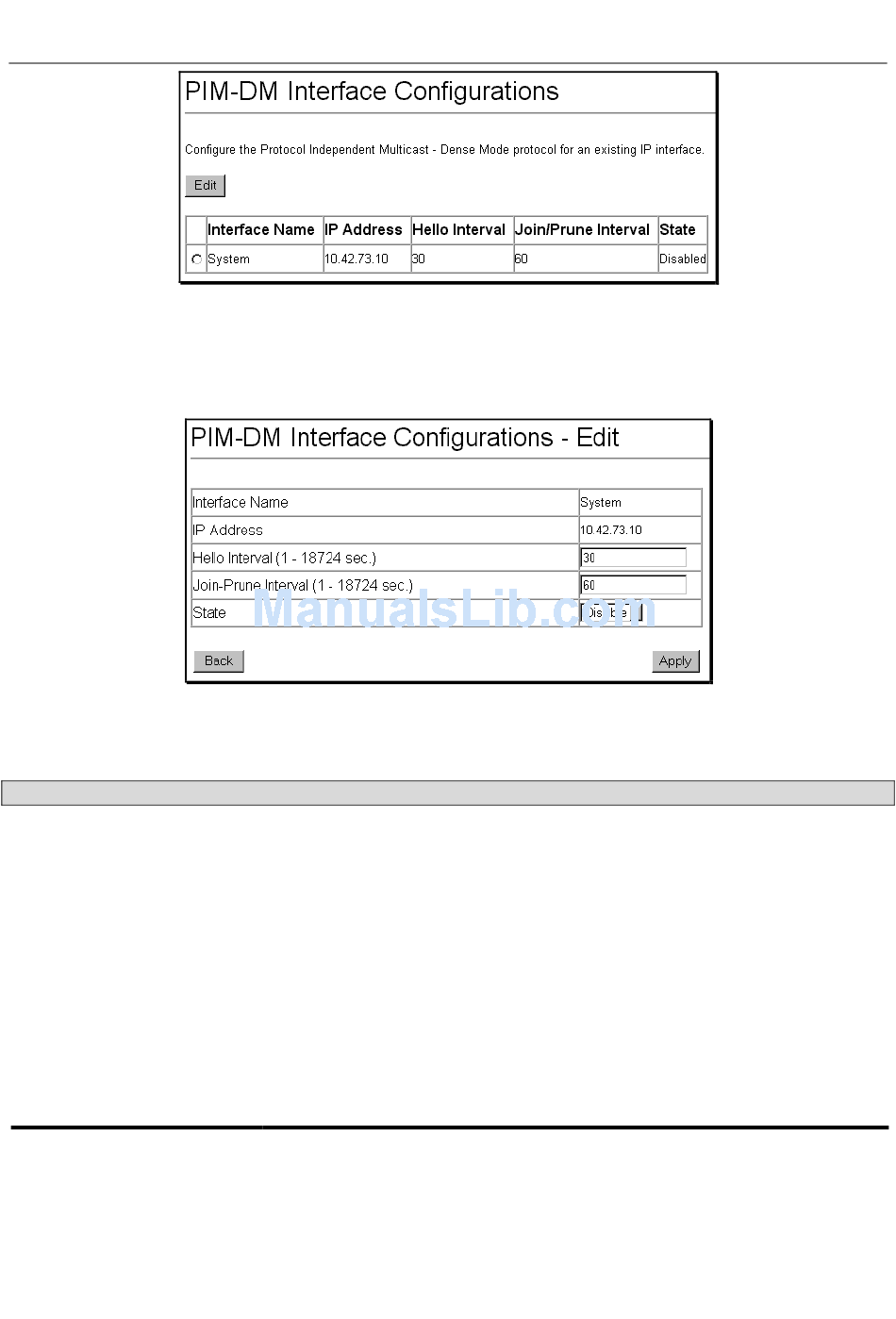

Figure 21- 8. PIM-DM Interface Configuration
Figure 21- 9. PIM-DM Interface Configuration − Edit
Description
Allows the entry of the name of the IP interface for which PIM-DM is to be
configured. This must be a previously defined IP interface.
Displays the IP address for the IP interface named above.
This field allows an entry of between 0 and 18724 seconds and determines the
interval between sending Hello packets to other routers on the network. The
default is 30 seconds.
This field allows an entry of between 0 and 18724 seconds. This interval also
determines the time interval the router uses to automatically remove prune
information from a branch of a multicast delivery tree and begin to flood
multicast messages to all branches of that delivery tree. These two actions are
equivalent. The default is 60 seconds.
This field can be toggled between Enabled and Disabled using the pull-down
menu, and is used to enable or disable PIM-DM for the IP interface. The default
is Disabled.
