DVMRP Neighbor Address Table
The following fields are displayed.
Parameter
Interface
Neighbor Address
Generation ID
Expire Time
DVMRP Next Hop Table
The following fields are displayed.
Parameter
Source IP Address
Source Mask
Interface Name
Type
D-Link DES-3326S Layer 3 Switch

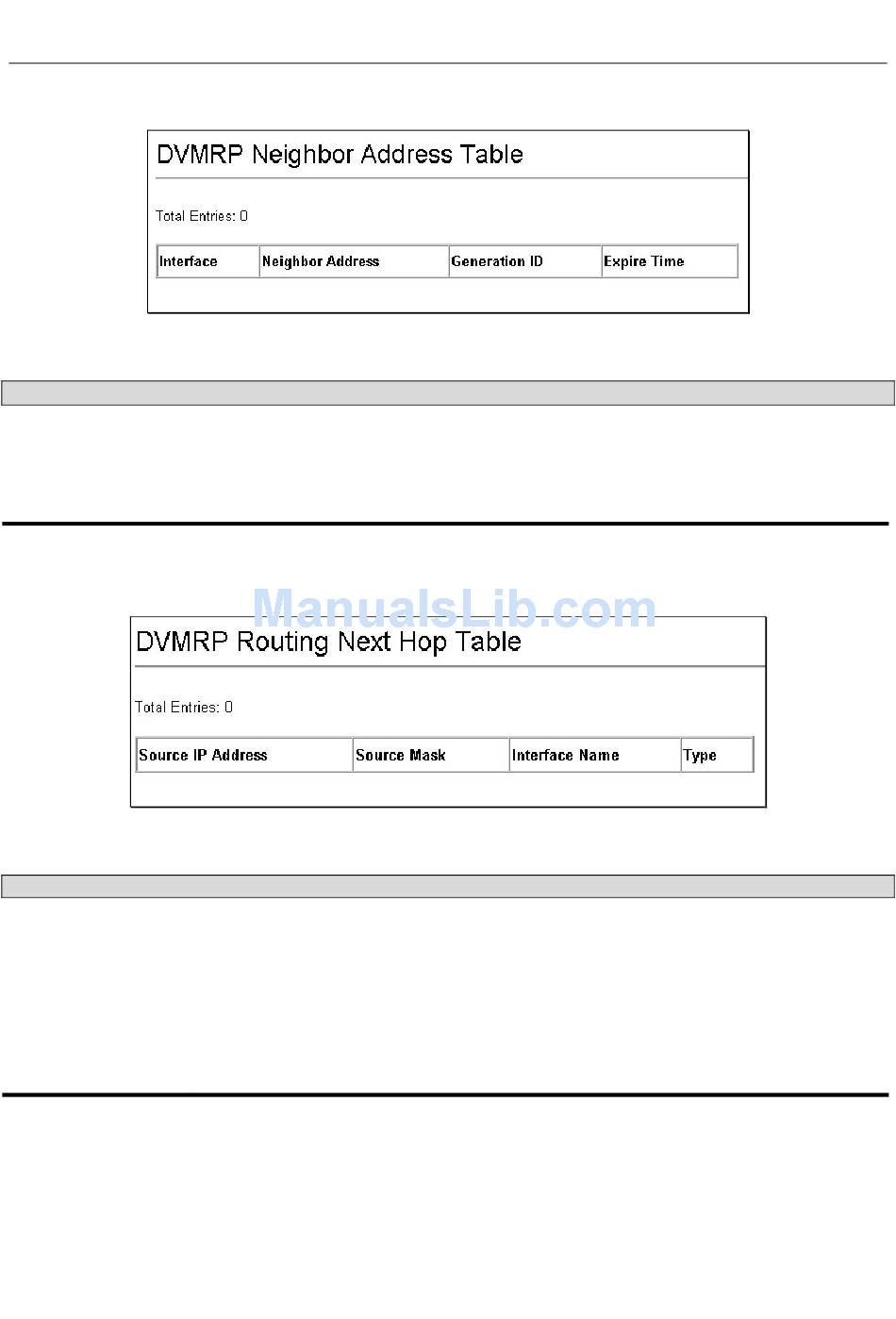

Figure 16- 12. DVMRP Neighbor Table
Description
The name of the IP interface the router resides on.
IP address of the DVMRP neighbor.
Indicates if the neighbor supports generation ID.
Time in seconds until the DVMRP neighbor information expires.
Figure 16- 13. DVMRP Next Hop Table
Description
The network address which, when combined with the corresponding next hop Source
Mask value, identifies the source for which this entry specifies a next hop on an outgoing
interface.
The network mask which, when combined with the corresponding next hop Source value,
identifies the source for which this entry specifies a next hop on an outgoing interface.
The name of the IP interface the router resides on.
Type is 0, or leaf, if no downstream dependent neighbors exist on the outgoing virtual
interface. Otherwise, type is branch.
