The packet analysis fields are described here:
Parameter
Update Interval
<Suspend>
Frames
Frames/sec
Unicast RX
Multicast RX
Broadcast RX
RX Bytes
RX Frames
TX Bytes
TX Frames
Port Error Packets
The Port Error Packets window displays the packet errors that the switch can detect and displays the results on a per port
basis.
To view the error statistics for a port, open the Network Monitoring folder and the Statistics subdirectory and click on the
Port Packet Analysis link:
Select the desired port by clicking on the front panel display in the upper part of the web page or use the Unit: and Port: drop-
down menus. The Interval field sets the interval at which the error statistics are updated.
D-Link DES-3326S Layer 3 Switch
Description
The interval (in seconds) that the table is updated. The default is 2 seconds.
The number of packets (or frames) received or transmitted by the switch with the size, in
octets, given by the column on the right.
The number of packets (or frames) transmitted or received, per second, by the switch.
Displays the number of unicast packets received by the switch in total number (Frames)
and the rate (Frames/sec).
Displays the number of multicast packets received by the switch in total number (Frames)
and the rate (Frames/sec).
Displays the number of broadcast packets received by the switch in total number (Frames)
and the rate (Frames/sec).
Displays the number of bytes (octets) received by the switch in total number (Total), and
rate (Total/sec).
Displays the number of packets (frames) received by the switch in total number (Total), and
rate (Total/sec).
Displays the number of bytes (octets) transmitted by the switch in total number (Total), and
rate (Total/sec).
Displays the number of packets (frames) transmitted by the switch in total number (Total),
and rate (Total/sec).

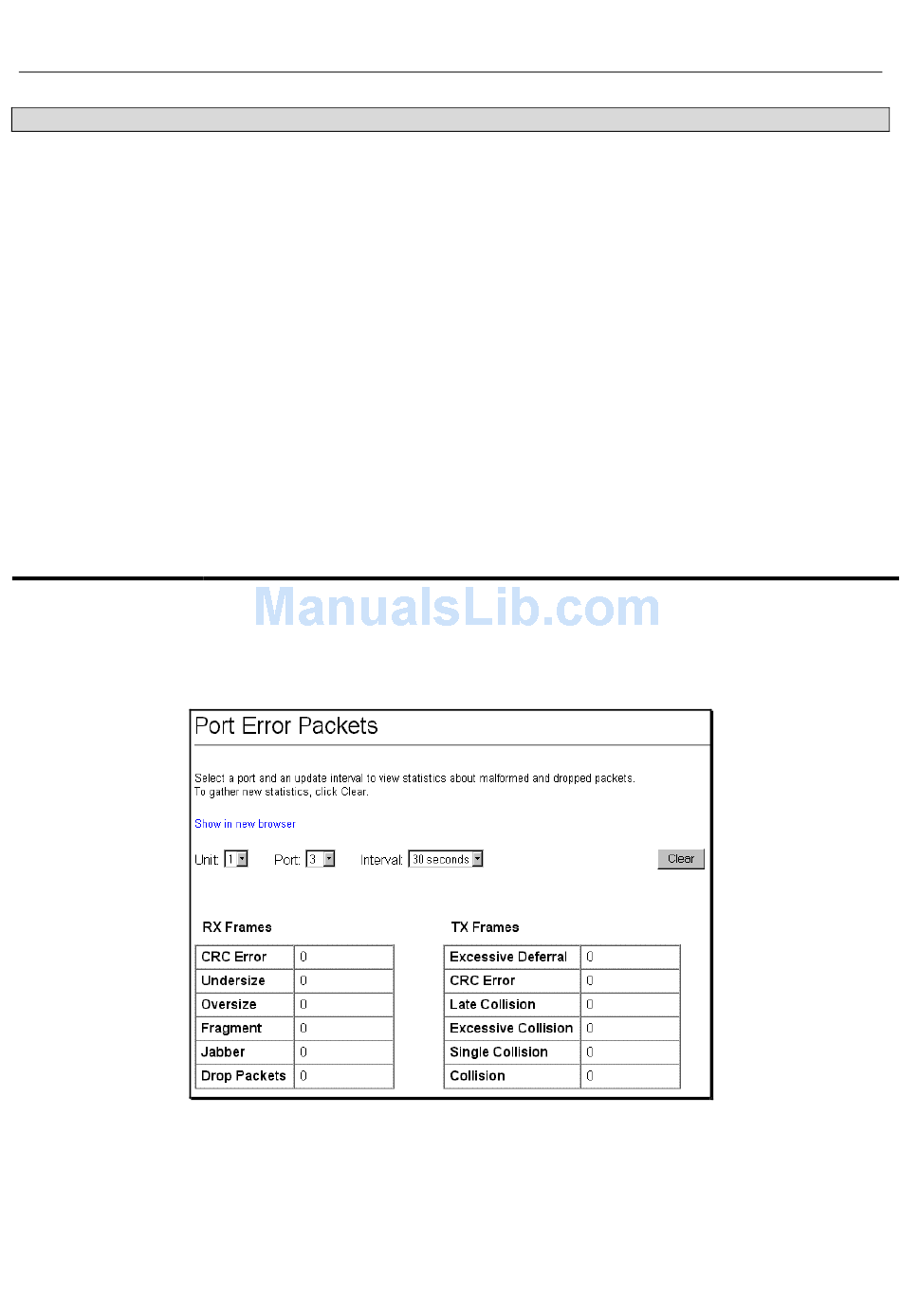

Figure 16- 4. Port Error Packet Statistics window
