OSPF Neighbor Table
The following fields are displayed.
Parameter
Neighbor ID
IP Address
Neighbor Options
Neighbor Priority
Neighbor State
State Changes
OSPF Virtual Neighbor Table
The following fields can be set or are displayed.
Parameter
Transit Area ID
Virtual Neighbor ID
IP Address
Virtual Neighbor Options
Virtual Neighbor State
State Changes
D-Link DES-3326S Layer 3 Switch

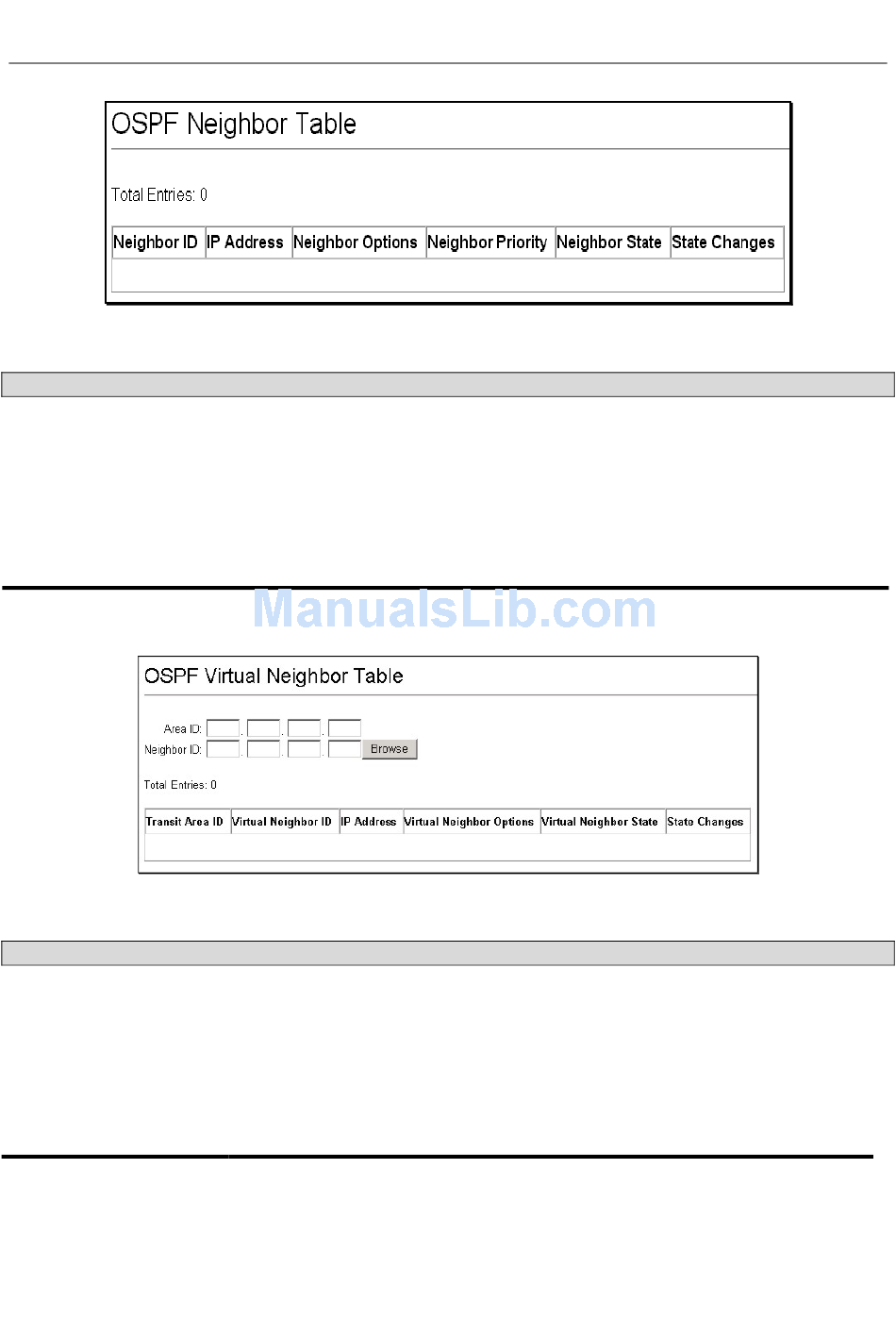

Figure 16- 9. OSPF Neighbor Table
Description
The router ID of a neighboring router.
The IP address of the neighboring router.
This field indicates whether the neighbor router can accept OSPF optional operation within
its OSPF domain. For example, TOS routing.
The priority value of the neighboring router.
Indicates the relationship between the switch and the neighbor router.
The number of times the neighbor router has changed state.
Figure 16- 10. OSPF Virtual Neighbor Table
Description
The area ID of the transit area that the virtual link resides on.
The router ID of the neighboring router via the virtual link.
The IP address of the neighboring router.
This field indicates whether the neighbor router can accept OSPF optional
operation within its OSPF domain. For example, TOS routing.
Indicates the relationship between the switch and the neighbor router.
The number of times the neighbor router has changed state.
117
