Stacking LED Indicators

Stacking LED indicators include the Stack ID indicator on the front panel and the Link/Act indicators on the front of the DES-
332GS stacking module.
Each stacking module has Link and Act LED indicators on its front panel for the IEEE 1394 IN/OUT pair and the GBIC port.
Link The Link LED lights to confirm a valid link.
Act The ACT LED blinks to indicate activity on the link.
The Stack Number seven-segment LED displays the Unit number assigned to the
STACK NO. Switch. A zero (0) in the display indicates that the stacking module is in the process
of determining the stack status and has not yet resolved the Switch's Unit number.
D-Link DES-3326S Layer 3 Switch

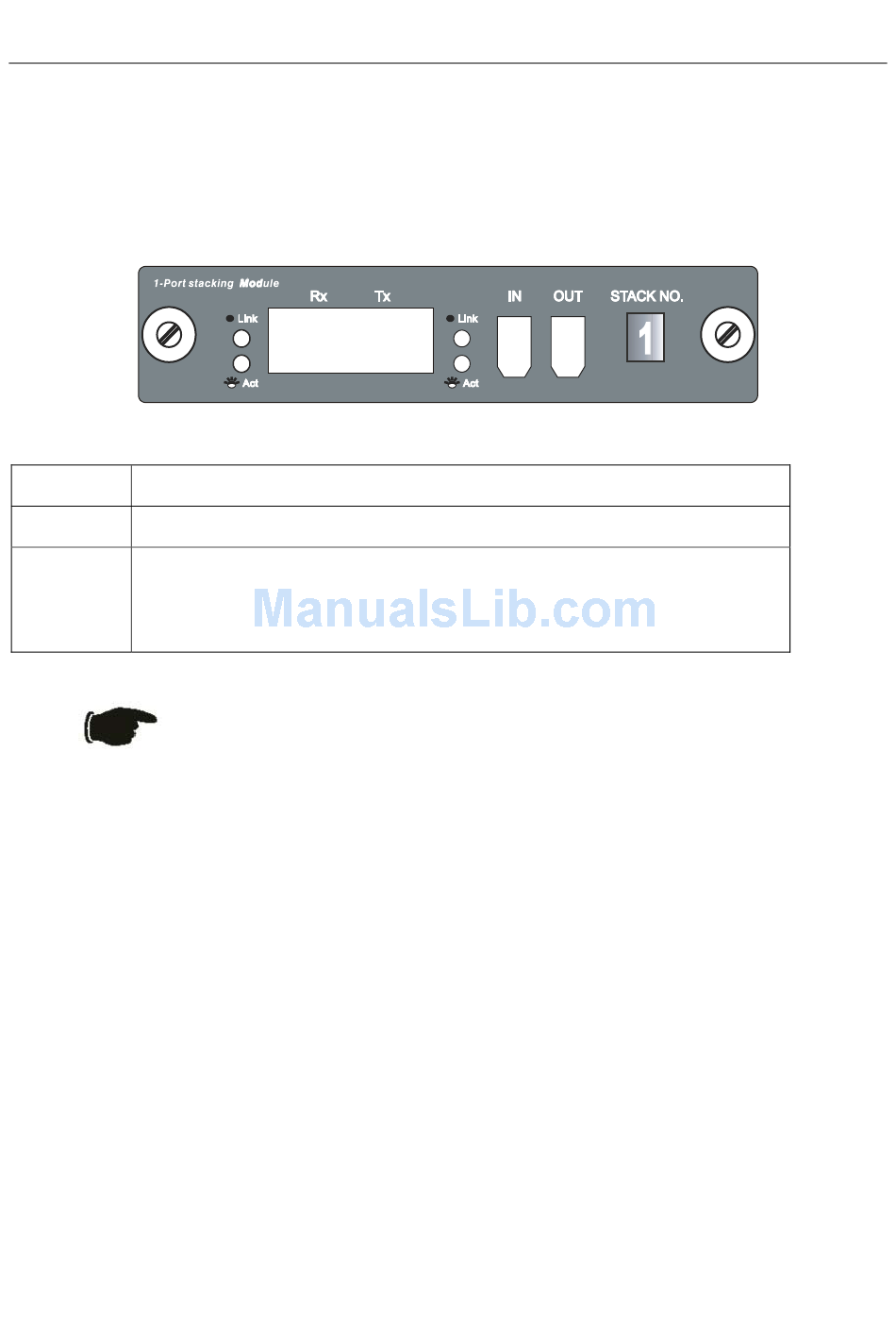

Figure 1-2. Front panel of stacking module
NOTICE: Do not connect the stacked Switch group to the network until
you have properly configured all Switches for stacking. An improperly
configured Switch stack can cause a broadcast storm.
