DVMRP Information

To view DVMRP information, open the Network Monitoring folder and use the links located in a separate DVMRP
subdirectory. DVMRP information can be viewed in the following menus:
DVMRP Routing Table
DVMRP Neighbor Address Table
DVMRP Next Hop Table
DVMRP Routing Table
The Source Address and Source Mask fields allow the entry of an IP address and corresponding subnet mask to search the
table. Click Find and the DVMRP Routing table will be searched for the IP address and subnet mask above.
The following fields are displayed.
Parameter
Source Address
Source Mask
Next Hop Router
Hop
Learned
Interface Name
Expire
D-Link DES-3326S Layer 3 Switch

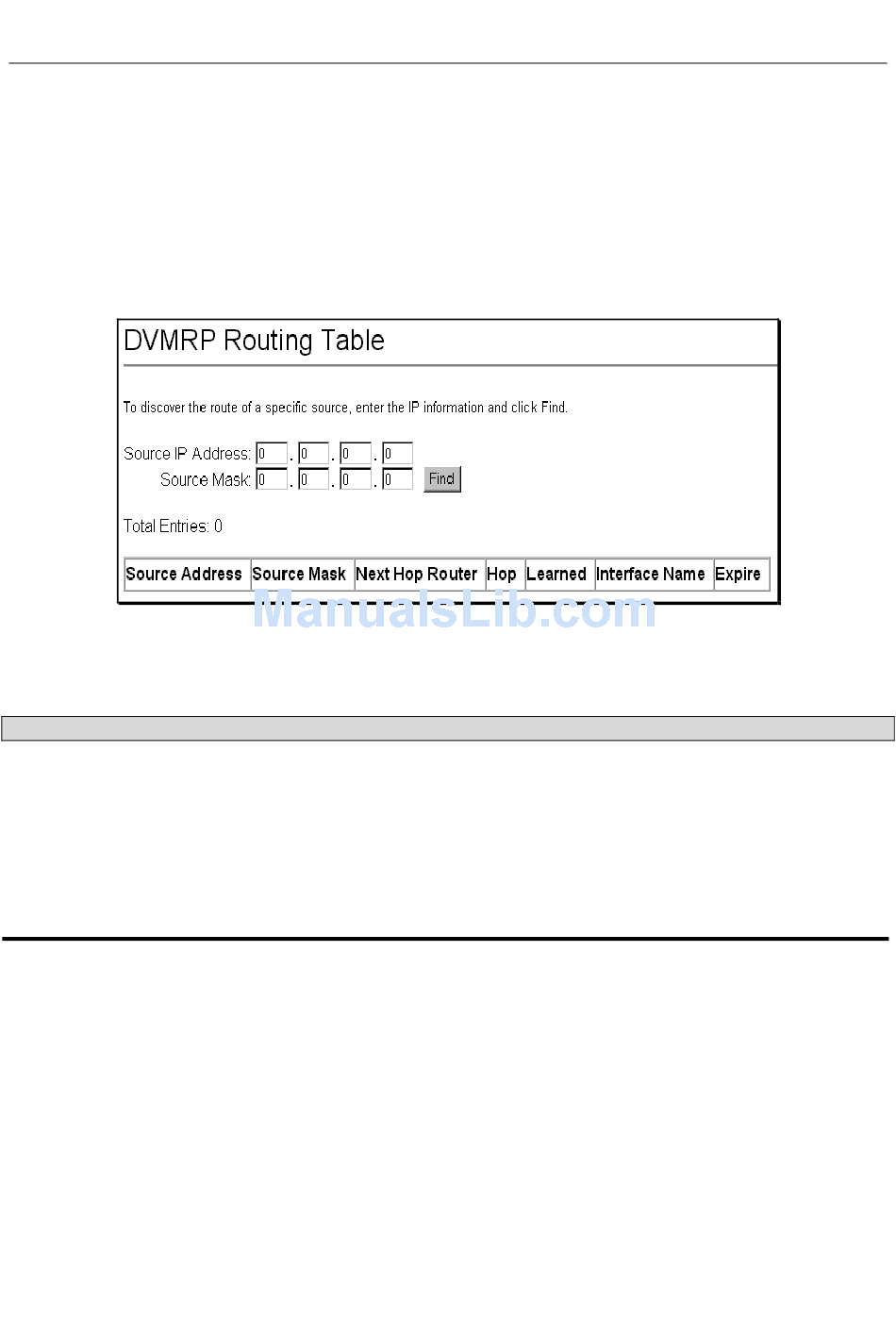

Figure 16- 11. DVMRP Routing Table
Description
The IP address of the DVMRP router.
The subnet mask corresponding to the IP address above.
The IP address of the next hop router.
The number of hops (routers) that are between the switch and the listed router.
Indicates whether this entry is dynamic (learned) or not.
The name of the IP interface the router resides on.
The total number of routers that the packets can cross.
