Ospf Virtual Interface Settings - D-Link DES-3326SRM - Switch - Stackable Product Manual

The following fields can then be configured for the OSPF interface:
Parameter
Interface Name
Area ID
Router Priority
Hello Interval
Dead Interval
State
Auth Type
Metric

OSPF Virtual Interface Settings

Click the OSPF Virtual Interface Settings link to view the current OSPF virtual interface settings. There are not virtual
interface settings configured by default, so the first time this table is viewed there will be not interfaces listed. A new menu
appears (see below).
To setup an OSPF Virtual Interface on the switch, click the Virtual Interface Configuration link under the OSPF folder:
To add a new OSPF virtual interface configuration set to the table, click the New button.
D-Link DES-3326S Layer 3 Switch
Description
Displays the of an IP interface previously configured on the Switch.
Allows the entry of an OSPF Area ID configured above.
Allows the entry of a number between 0 and 255 representing the OSPF priority of the
selected area. If a Router Priority of 0 is selected, the Switch cannot be elected as the
Designated Router for the network.
Allows the specification of the interval between the transmission of OSPF Hello packets,
in seconds. Between 5 and 65535 seconds can be specified. The Hello Interval, Dead
Interval, Authorization Type, and Authorization Key should be the same for all routers on
the same network.
Allows the specification of the length of time between the receipt of Hello packets from a
neighbor router before the selected area declares that router down. An interval between
5 and 65535 seconds can be specified. The Dead Interval must be evenly divisible by
the Hello Interval.
Allows the OSPF interface to be disabled for the selected area without changing the
configuration for that area.
This field can be toggled between None, Simple, and MD5 using the space bar. This
allows a choice of authorization schemes for OSPF packets that may be exchanged
over the OSPF routing domain. None specifies no authorization. Simple uses a simple
password to determine if the packets are from an authorized OSPF router. When
Simple is selected, the Auth Key:[ ] field allows the entry of a 8 character password that
must be the same as a password configured on a neighbor OSPF router. MD5 uses a
cryptographic key entered in the MD5 Key Table Configuration menu. When MD5 is
selected, the Auth Key ID:[
the MD5 configuration above.
neighboring router.
This field allows the entry of a number between 1 and 65,535 that is representative of
the OSPF cost of reaching the selected OSPF interface. The default metric is 1.

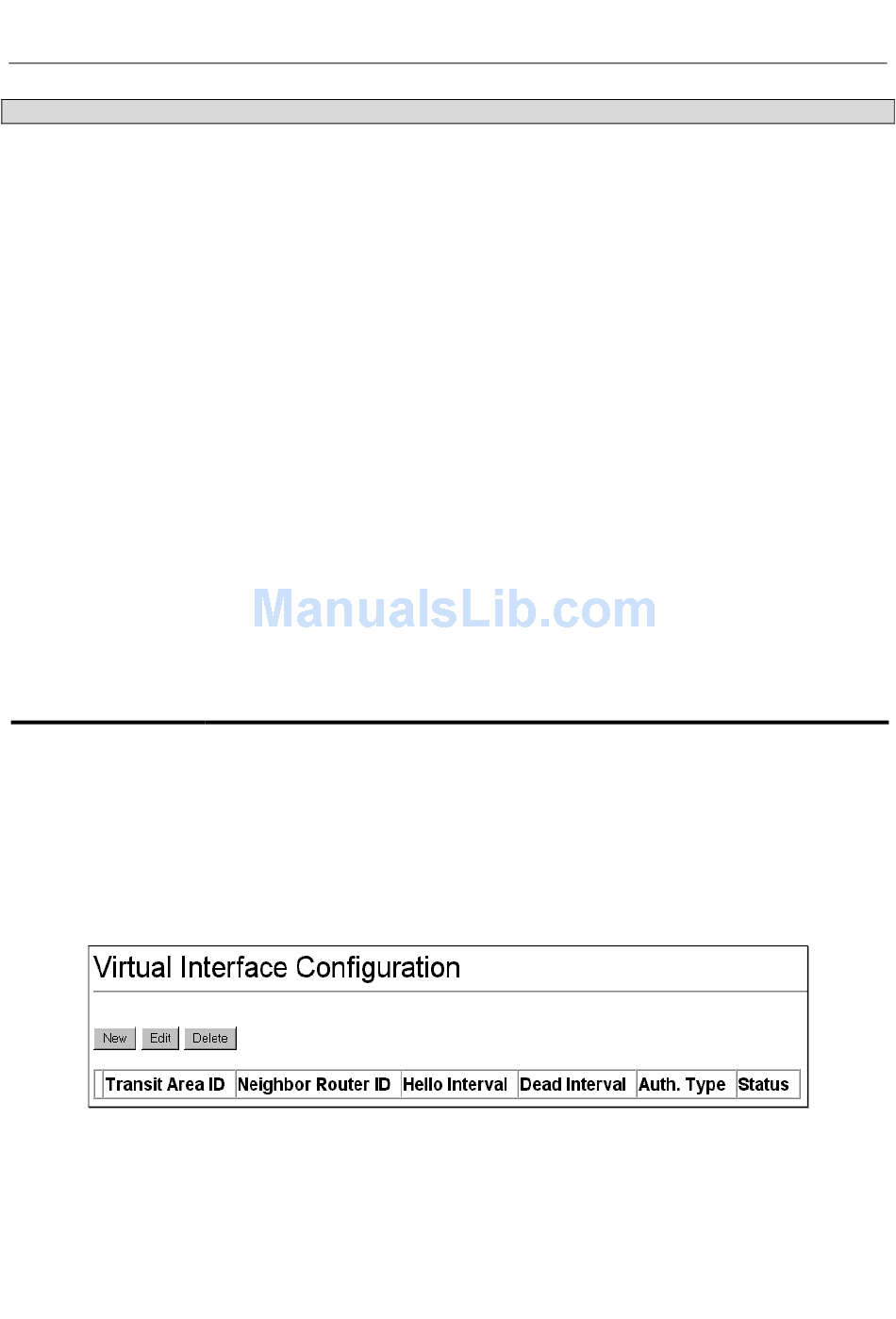

Figure 24- 10. Virtual Interface Configuration
] field allows the specification of the Key ID as defined in
This must be the same MD5 Key as used by the
