• Configure—For initially configuring a system, entering new information, or changing existing
settings. (For more information, see "Configure" on page 25.)
• Wizards—For initially configuring a simple system. (For more information, see
"Wizards" on page 69".)
• Diagnose—For generating an XML-formatted diagnostic report. (For more information, see
"Diagnose" on page 77".)
• Update—For updating MSA controller and module firmware. (For more information see
"Update" on page 79.)
Views
As shown in Figure
determines which system components are shown, as well as their associated tasks:
• Storage with iSCSI view—Displays all system components and their available tasks
• Storage view—Displays storage-related items only; no targets or initiators are shown.
• iSCSI view—Displays iSCSI-related items only; no arrays, logical drives, or hard drives are shown.

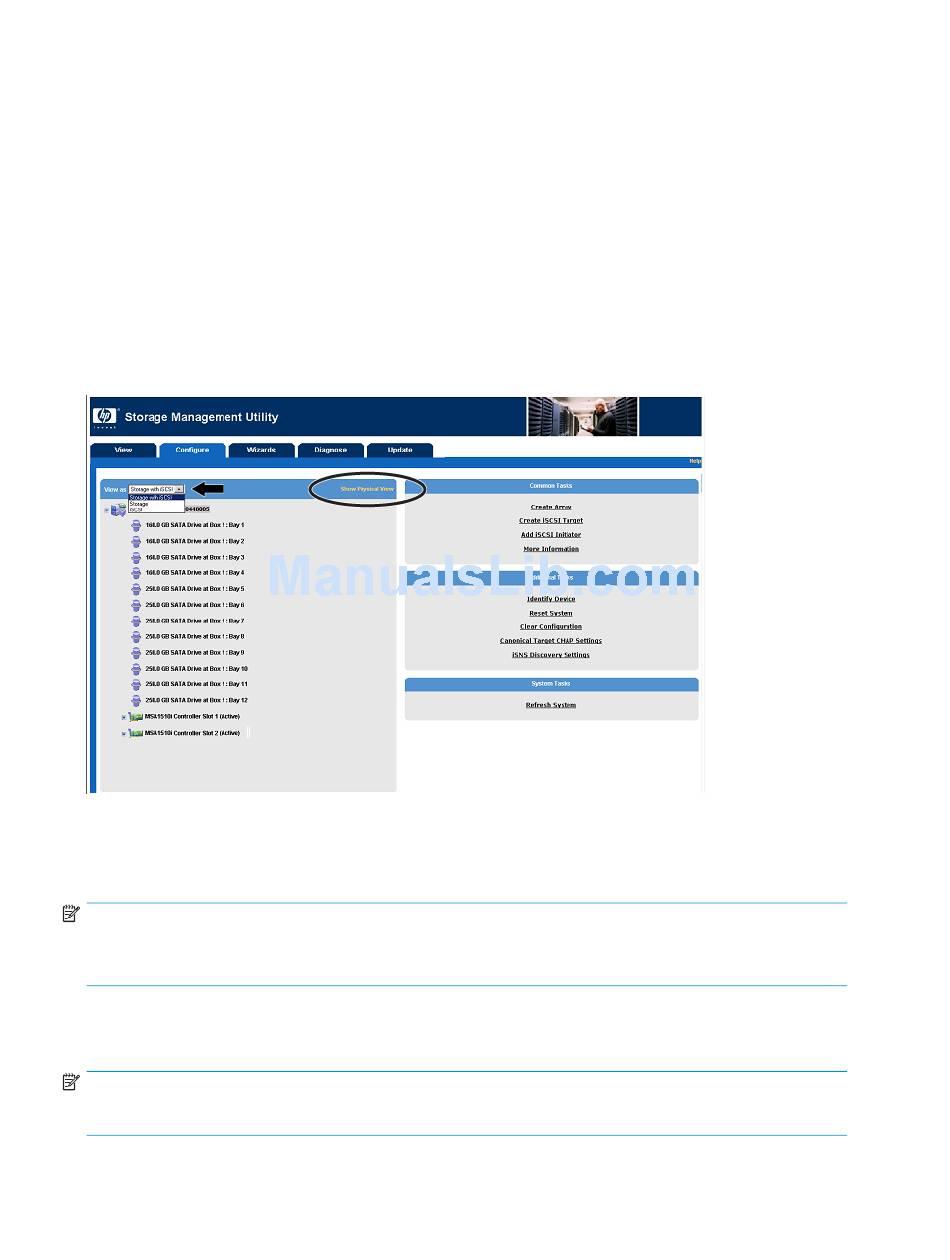

Figure 8 View as drop-down box
Also shown in
configured storage.
NOTE:
The Show Physical View/Show Logical View toggle affects the view only when storage components
are shown.
• Physical view—Displays a physical representation of the hard drives and configured storage.
• Logical view—Displays a logical representation of the hard drives and configured storage.
NOTE:
In any view, click + or - to expand or contract the items in the system component list.
26
Configure
8, expand the View as drop-down box to select a viewing option. Your selection
Figure 8, click Show Physical View/Show Logical View to control the display of the
(Figure 8).
