Accessing the SMU

1.
Install, connect, and apply power to the storage and other network devices, as detailed in your
system user documentation.
2. Obtain and record the IP address assigned to the primary management port (MA0). (Worksheets
may be provided with you system installation instructions.)
To determine the IP address, press the arrow buttons on the front of the array controller and scroll
through the messages until the following message is displayed on the controller LCD panel:
603 Port MA0 IP <address>
NOTE:
• If the IP address message is not displayed on the LCD panel, an IP address was not
assigned to the management port. Check the cable connections, view the module LEDs,
and read the system installation, maintenance and service, or other user documents
for troubleshooting information.
• If necessary, you can change the management IP address through
the controller LCD panel management menu. For more information, see
"Changing the management port IP address through the MSA1510i controller display
3.
From a server or workstation with access to the storage device, open your Web browser and enter
the address obtained in
For example: http://10.10.1.254
NOTE:
For additional security (at a reduced performance level), access the SMU using the secure
mode. For example: https://10.10.1.254

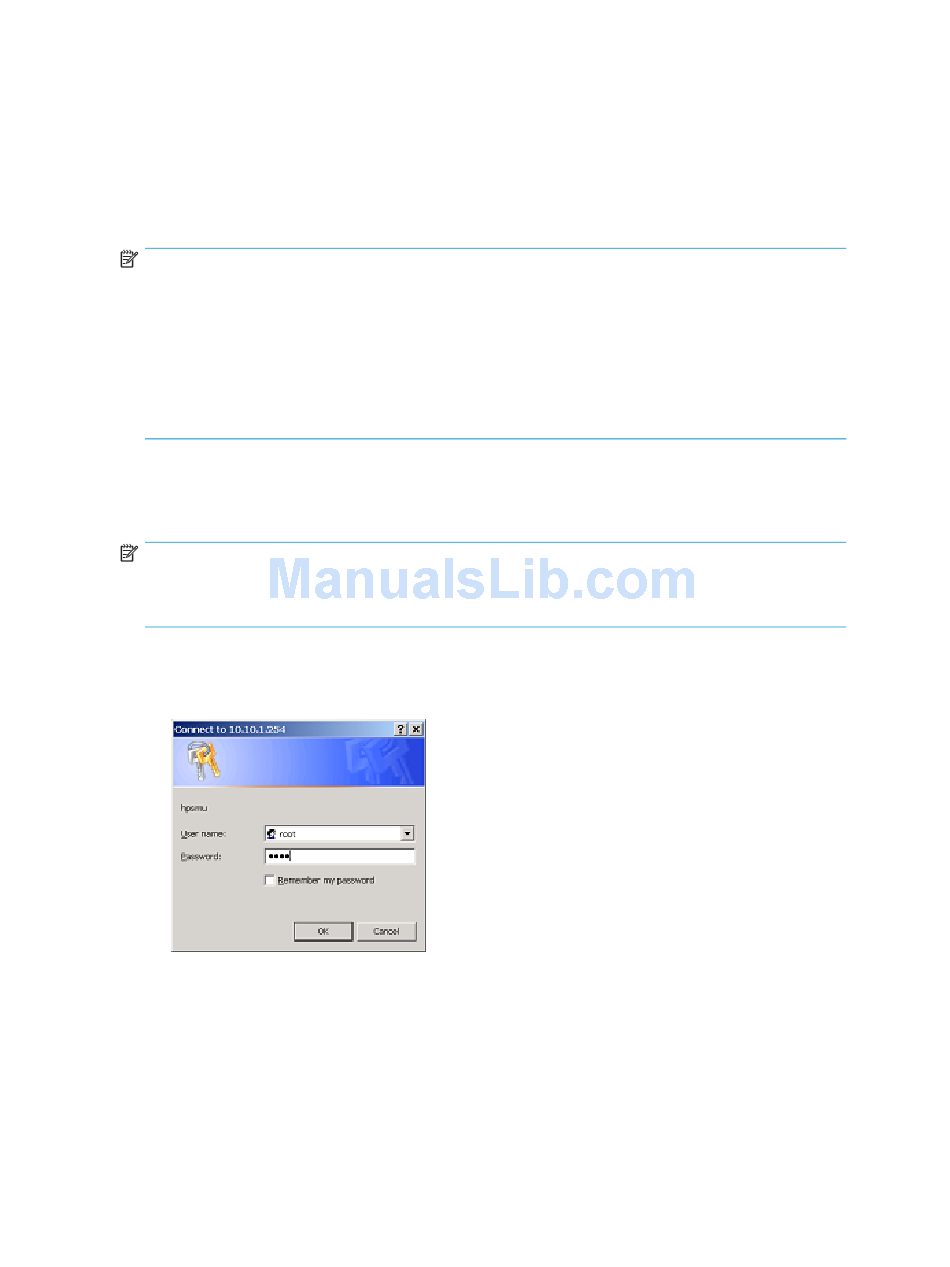

4.
Enter the username and password. Default settings are:
• Username: root
• Password: root
Step 2.
HP Storage Management Utility user guide
panel" on page 16.
15
