Replacing the Hard Disk Drive

1. Remove the two screws on each side of the case. (Figure 2-12)
2. Gently disconnect the cable from the hard disk drive.
3. Connect the replacement hard disk drive with the cable.
4. Insert the replacement hard disk drive into the case.
5. Fasten the screws of each side.
Note: The hard disk drive with different height must use the different
case to house itself. Contact your dealer for details about these
replacements.

Inserting the Hard Disk Drive Module

1. Insert the hard disk drive module into the bay
2. Make sure it slides into the bay properly and mates with the connector
firmly.

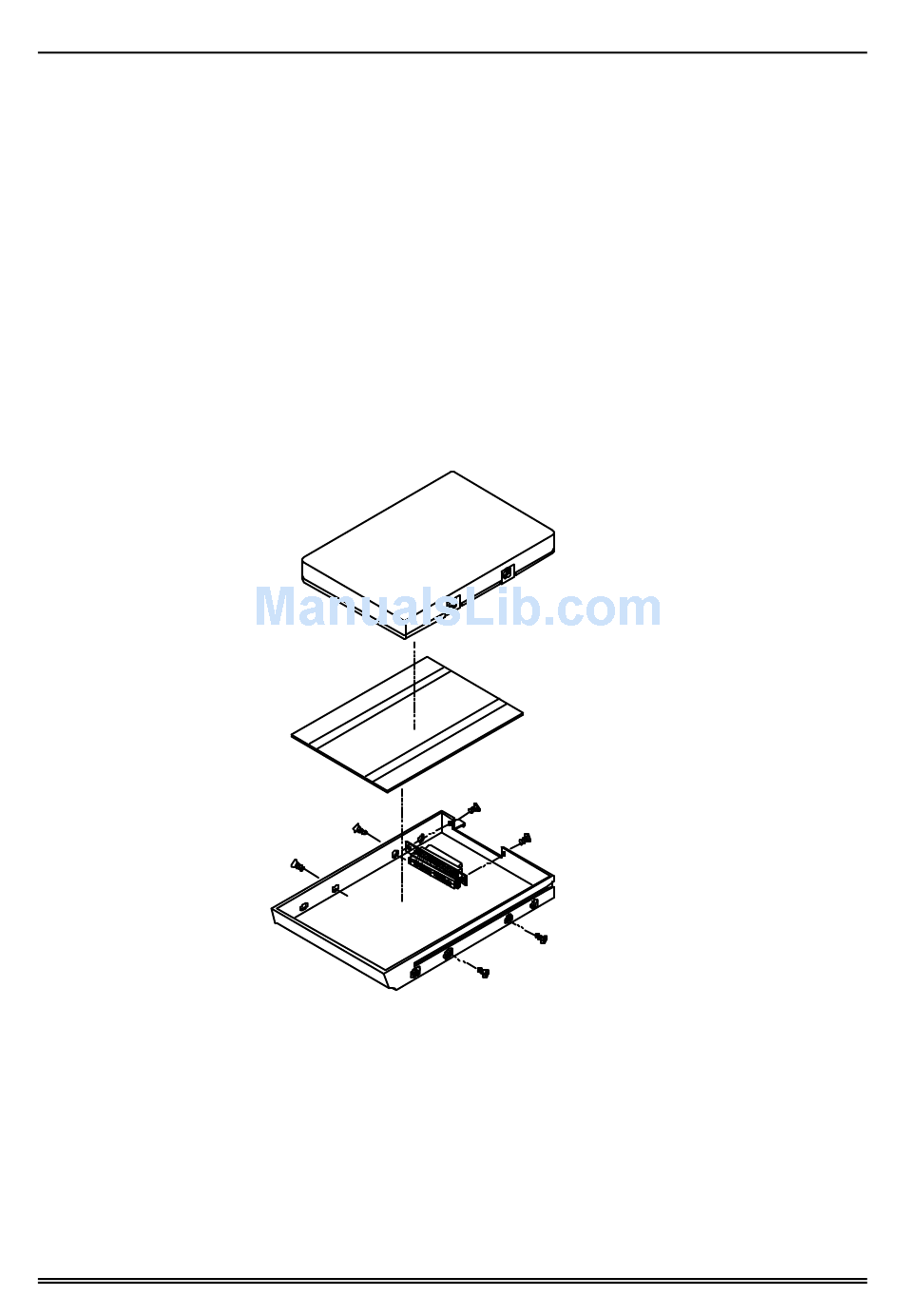

Figure 2-12
