Accessing the Memory Sockets

1. Turn the system power off.
2. Press the two keyboard latches to elevate the keyboard from its normal
position.
3. Carefully lift the keyboard assembly out to expose the mainboard.
Locate the memory sockets (Figure 2-8).
Note:
l
The memory socket Bank 1 is a reverse type, make sure you install
the memory module with the reverse side to fit its connector.
l
Please ensure that each edge of the memory module (SDRAM) has
no component mounted on (see Figure 2-7). It is recommended to
use the RAM module that complies with Intel unbuffered SO-DIMM
(67.6mmX31.75mm). Please consult your dealer for detailed
information.
67.6mm
Non-component area
(The edges of the memory module
are the non-component areas.)

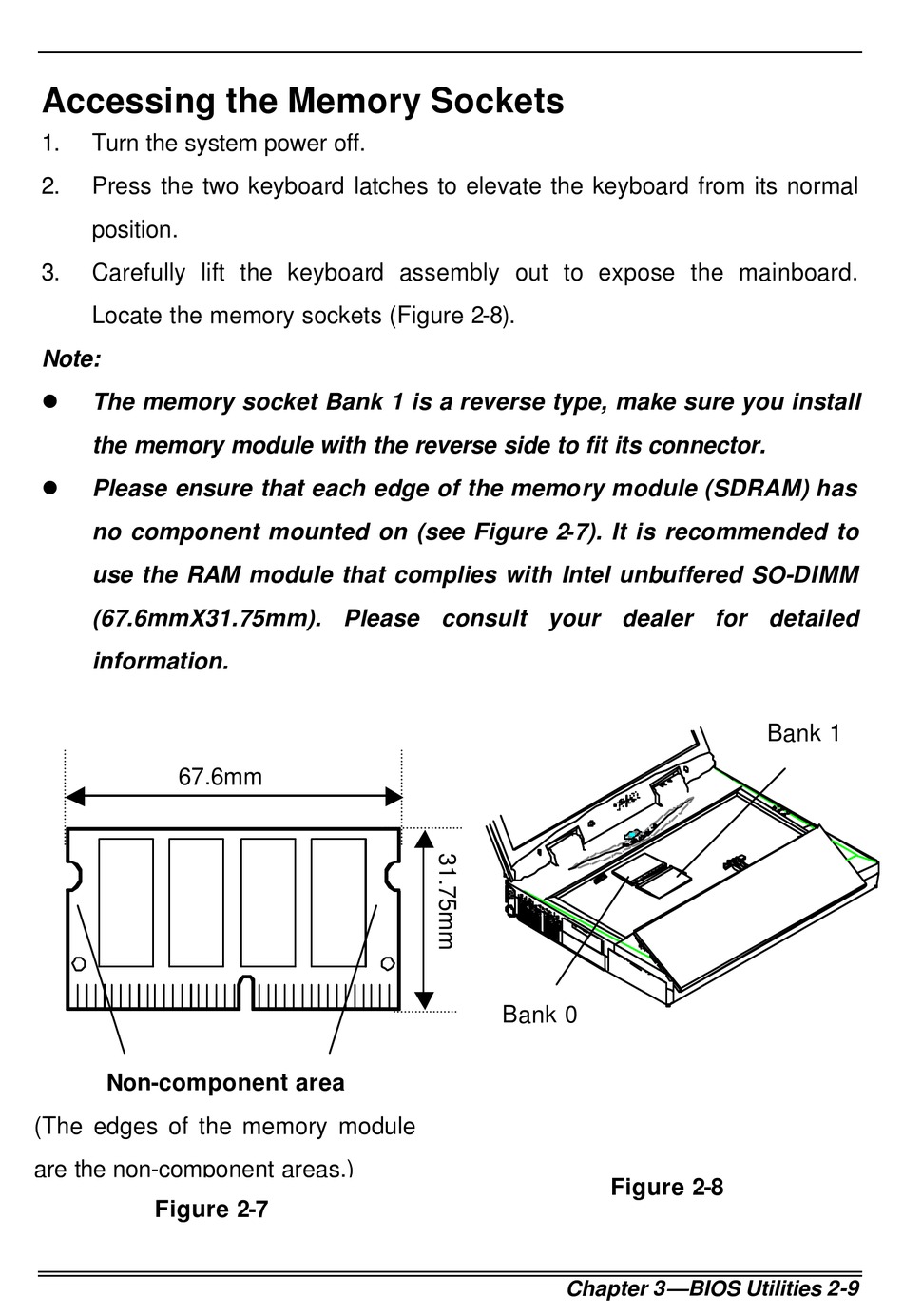

Figure 2-7
Bank 0
Figure 2-8
Chapter 3—BIOS Utilities 2-9
Bank 1
