Replacing Hard Disk Drive

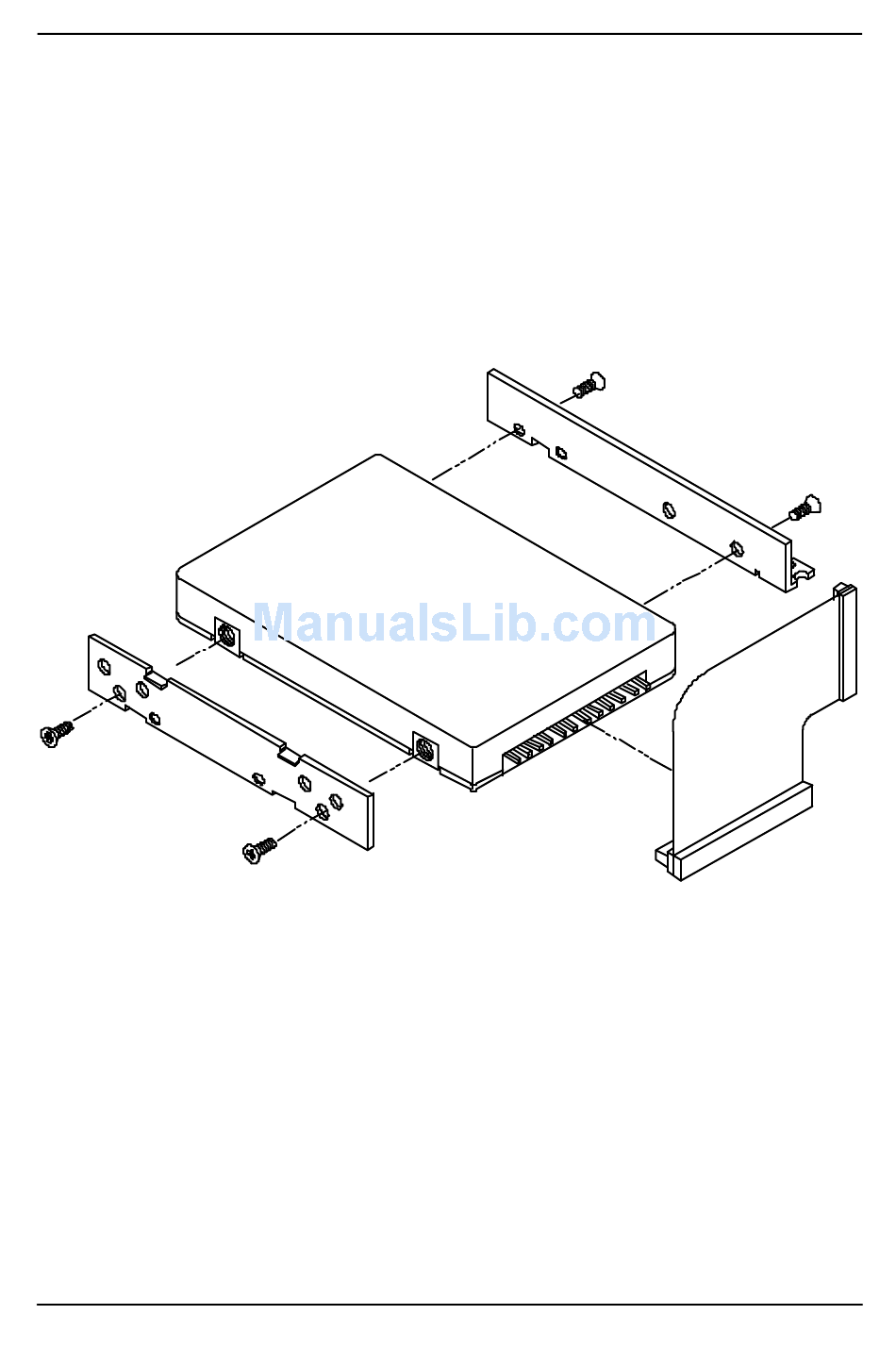

To put the hard disk into the hard disk bay, firstly remove the piece of steel in
the bay and assemble the hard disk as illustrated below.
To remove the hard disk, two screws on each side of the case need to be
removed so that the hard disk drive can be taken out of the case to replace with
another one (Figure 2-11). The location of the two screws may be varied
depending on different hard disk models. Gently disconnect the cable from
the hard disk drive when taking it out of the case. Be careful not to bend any
pins or crimp the cable.
Figure 2-11
