Replacing Hard Disk Drive - EUROCOM 5100-C DeskNote Lite User Manual

2-9

Replacing Hard Disk Drive

The hard disk drive is contained in a case. To take the hard disk drive out
of the case and replace with another one, you need to remove the two
screws on each side of the case (Figure 2-11). The location of the two
screws may be varied depending on different types of hard disk model.
Gently disconnect the cable from the hard disk drive when taking it out of
the case. Be careful not to bend any pins or crimp the cable.

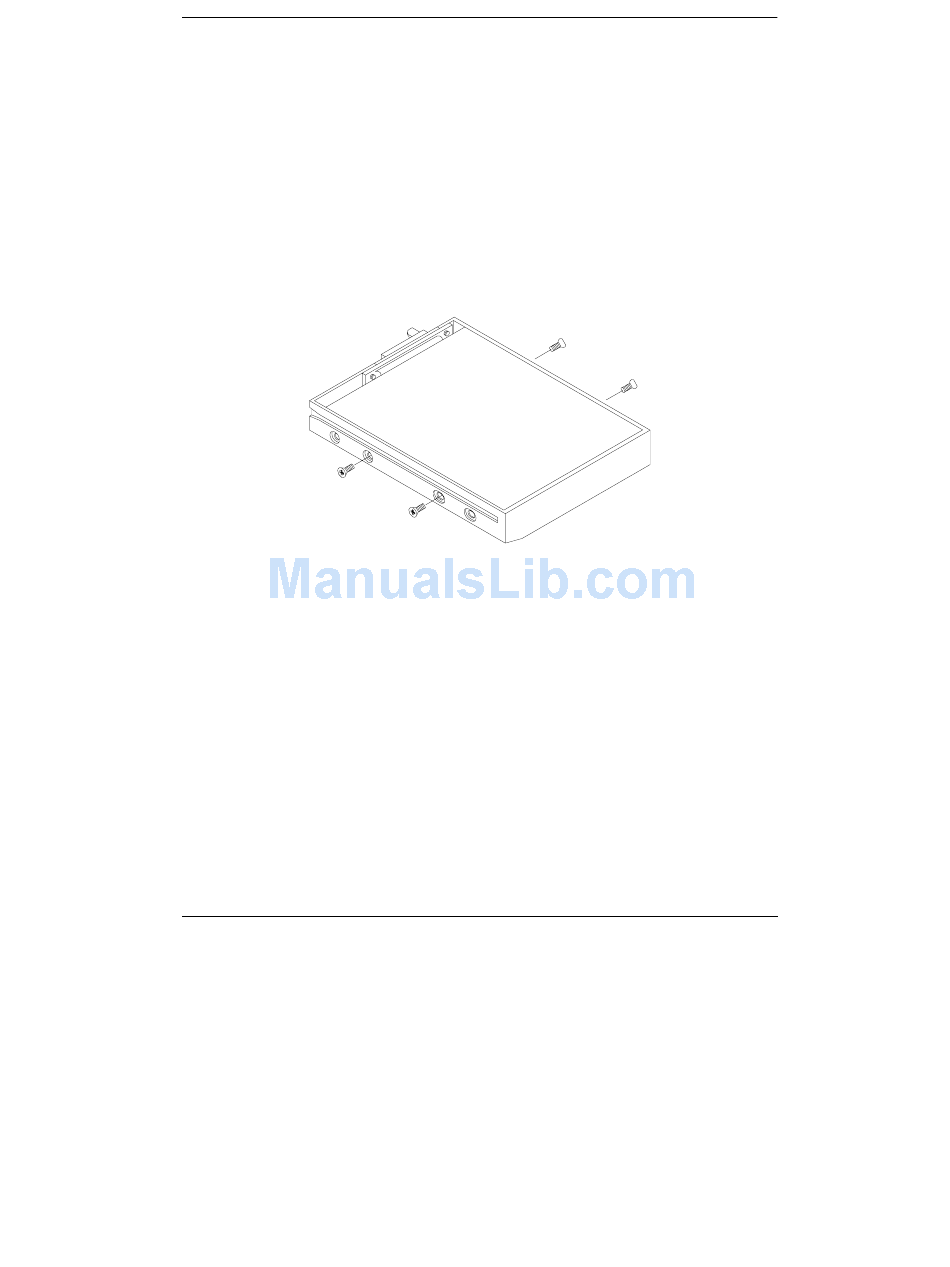

Figure 2-11
Chapter 2: Operation
