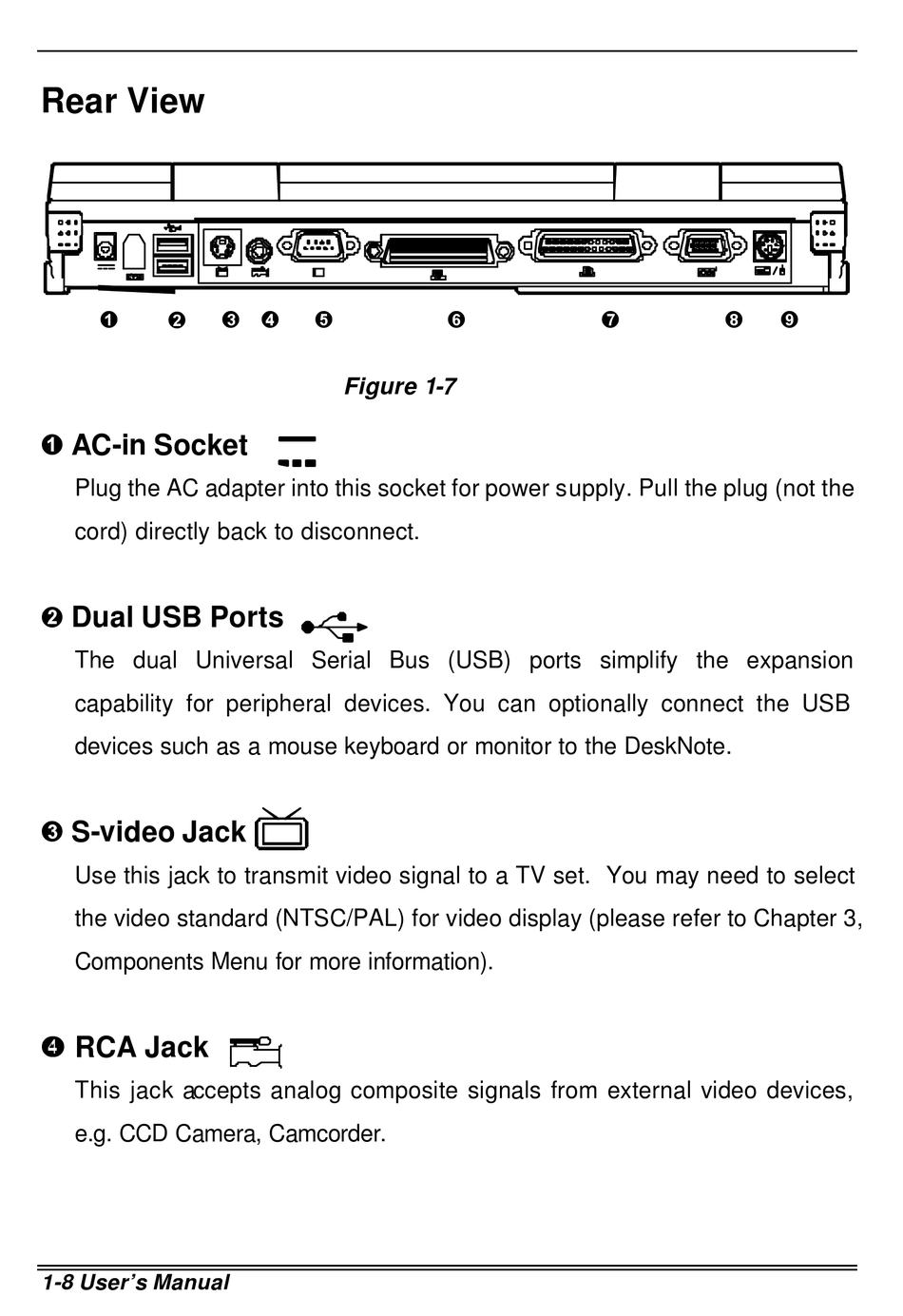

Rear View

Ê Ë
Ê AC-in Socket
Plug the AC adapter into this socket for power supply. Pull the plug (not the
cord) directly back to disconnect.
Ë Dual USB Ports
The dual Universal Serial Bus (USB) ports simplify the expansion
capability for peripheral devices. You can optionally connect the USB
devices such as a mouse keyboard or monitor to the DeskNote.
Ì S-video Jack
Use this jack to transmit video signal to a TV set. You may need to select
the video standard (NTSC/PAL) for video display (please refer to Chapter 3,
Components Menu for more information).
Í Í RCA Jack
This jack accepts analog composite signals from external video devices,
e.g. CCD Camera, Camcorder.
1-8 User's Manual
Ì Í Î
Figure 1-7
Ï Ð Ñ Ò
