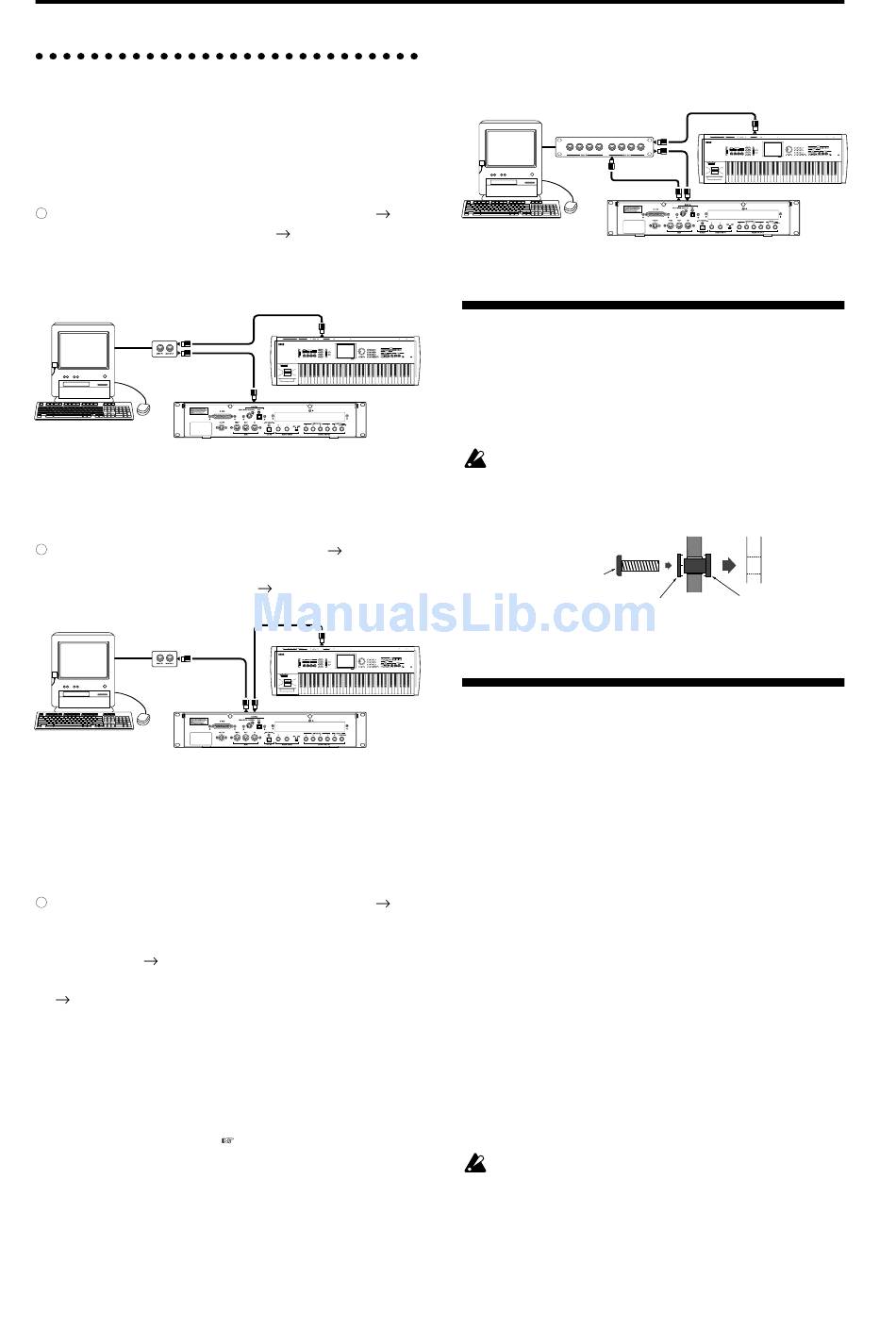

Connecting a sequencer (computer)
Basic settings for using the TRITON-Rack as the
MIDI tone generator for monitoring and playback
when recording on an external sequencer or com-
puter
MIDI OUT connector of the MIDI keyboard
computer with MIDI interface
For details on connecting the computer and MIDI
interface, and making MIDI port settings, refer to
the owner's manual for your MIDI interface.
Computer
MIDI
interface
MIDI IN
MIDI OUT
When recording the MIDI output of the TRITON-
Rack's controllers, arpeggiator, and RPPR into the
external sequencer or computer
MIDI OUT connector of the TRITON
connector of the TRITON-Rack, MIDI OUT con-
nector of the TRITON-Rack
of the MIDI interface
Computer
MIDI
interface
MIDI IN
When recording the MIDI output of the TRITON-
Rack's controllers, arpeggiator, and RPPR into the
external sequencer or computer, and using the TRI-
TON-Rack as the monitor and playback MIDI tone
generator during recording
MIDI OUT connector of the MIDI keyboard
MIDI IN connector of the MIDI interface (multi-
port), MIDI OUT connector of the MIDI interface
(multi-port)
MIDI IN connector of the TRITON-
Rack, MIDI OUT connector of the TRITON-Rack
MIDI IN connector of the MIDI interface
(multi-port)
Make the appropriate settings for the Local Control
parameter of the TRITON-Rack and for the Echo
Back* parameter of the external sequencer (com-
puter), so that the TRITON-Rack's controllers,
arpeggiator, and RPPR are not applied to the tone
generator in duplicate. ( PG p.228)
14
TRITON-Rack
MIDI OUT
MIDI IN
MIDI keyboard etc.
TRITON-Rack
MIDI IN
MIDI IN connector
MIDI OUT
MIDI keyboard etc.
MIDI OUT
MIDI IN
TRITON-Rack
* Echo Back is a function by which data received at
MIDI IN is re-transmitted without change from
MIDI OUT.
Computer
MIDI interface
(multi-port)
MIDI IN
Rack installation
If you intend to mount the TRITON-Rack in a rack,
insert insulating washers and insulating bushings into
the holes of the TRITON-Rack's faceplate, as shown
below.
If you place the TRITON-Rack directly on a table
for use, please do not place other racks or a com-
puter etc. on top of it.
Front panel
Bolt
Insulating washer
About separately sold options
The TRITON-Rack can be upgraded withg user install-
able options, which add feartures.
If the separately sold EXB-SCSI option is installed, you
can connect SCSI devices such as hard disks or CD-
ROM drives.
If the separately sold EXB-DI option is installed, you
can connect ADAT Optical format compatible mixers,
amps, or recorders.
By installing the optional EXB-mLAN, you can connect
the TRITON-Rack to the new digital network designed
specifically for musical applications --- mLAN. This
allows a single IEEE 1394 cable to handle MIDI input/
output signals and all audio output signals of the TRI-
TON-Rack (which would otherwise require eight
cables), for easy connection to another mLAN-compati-
ble device or computer. mLAN makes it easy to con-
struct sophisticated systems that exchange large
volumes of high-quality digital audio data and MIDI
data.
For details on installing the EXB-SCSI, EXB-DI, or
EXB-mLAN refer to PG p.243.
A CD-ROM drive can be connected to only load.
You cannot save to a CD-ROM drive from the SCSI
port.
MIDI OUT
MIDI IN
MIDI OUT
MIDI OUT
MIDI IN
MIDI keyboard etc.
TRITON-Rack
TRITON-Rack
EIA standard case
Insulating bushing
