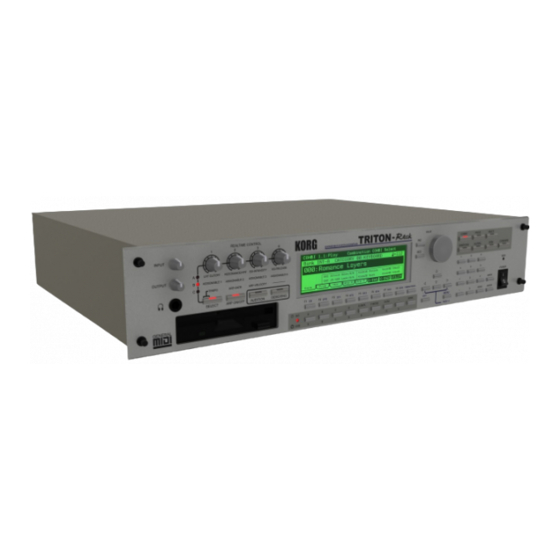

Korg Triton-Rack Easy Start

Korg expandable hi module/sampler. Uploaded by: Larry Frazier
Hide thumbs

EasyStart
Incredible "Classic" TRITON sound: 32MB of
waveform ROM, expandable with up to 8
EXB-PCM expansion boards and EXB-MOSS
World -class Effects: 102 algorithms, 5 inserts,
2 masters, 3-Band EQ
Same powerful Sampling as TRITON
"Classic": 16 MB RAM (expandable to 96 MB),
48kHZ sampling rate, Slicing, Time Stretching,
Cross-fade Looping
Audio and MIDI Connections
Listening to the Demo Songs
Playing Programs and working with the Audition Riff function
Selecting Programs by Category, Playing Combinations
The Arpeggiators
The Effects
Sampling overview
Multi Mode
RPPR
TRITON Rack Main Features and available options
Disk Load procedures
TRITON Rack Main Features
EasyStart CONTENTS
Demo/Song mode for playback of TRITON-
created songs, plus 16-channel Multi-timbral
operation with 200 Multi locations!
Dual polyphonic Arpeggiators, 237 User
locations, syncable to clock and effects
Audition Riff function provides up to 300 riffs
to easily try out sounds from the front panel!
Built-in Floppy Drive and S/PDIF output
Digital options: EXB-DI and EXB-mLAN
2
2
2
3
3
4
4
5
5
6
7

Advertising

   Also See for Korg Triton-Rack

   Related Manuals for Korg Triton-Rack

No related manuals

   Summary of Contents for Korg Triton-Rack

  • Page 1

    EasyStart TRITON Rack Main Features Demo/Song mode for playback of TRITON- Incredible “Classic” TRITON sound: 32MB of created songs, plus 16-channel Multi-timbral waveform ROM, expandable with up to 8 operation with 200 Multi locations! EXB-PCM expansion boards and EXB-MOSS Dual polyphonic Arpeggiators, 237 User World -class Effects: 102 algorithms, 5 inserts, locations, syncable to clock and effects 2 masters, 3-Band EQ...

  • Page 2

    TRITON Rack EasyStart Audio and MIDI Connections Connect power supply connect audio cables from L/MONO1 and RIGHT outputs to powered monitor system, or use headphones (front panel phone jack). Connect MIDI cable from controller keyboard MIDI OUT to TRITON Rack MIDI IN. Power up TRITON Rack, controller, monitor system set controller to transmit on MIDI channel 1.

  • Page 3

    TRITON Rack EasyStart Selecting Programs by Category Select by Category function available in Program and Combi modes – for quick access to related sounds Press PROG key select and play from controller - any Program press F8 key (below UTILITY) press F7 key to highlight Select by Category press F8 key (below OK) to display Programs by Category...

  • Page 4

    1000 multisamples/4000 samples; compatible with AIFF, WAVE, AKAI S1000/3000, Korg sample formats Additional Features: Sampling time: Fully expanded, the TRITON-Rack allows for up to 17 minutes/28 seconds of sampling time. Visual Waveform Editing: TouchView display makes viewing and editing sample data easy! Zoom in and out; quickly-set loop editing points;...

  • Page 5

    Assign patterns to each note of a controller keyboard and trigger in real time, record 1 RPPR set per Multi; 150 preset patterns, 100 user patterns; approximately 140,000 note internal memory in Multi Press DISK key load “RPPRDEMO.SNG” from the TRITON-Rack TNRFD-00P disk (disk load procedure is on the back page of this guide). Press MULTI key make sure that “000: FEVER”...

  • Page 6

    In addition to S/PDIF digital output, you can add 6 channels of ADAT-compatible output with the optional EXB-DI Digital Interface Board. The TRITON-Rack is the first Korg product to offer optional support for mLAN – the new and powerful digital network designed for musical applications.

  • Page 7

    A word about the TNRFD01P disk: This disk contains the sample data used for the demo song “Deep Cut” (DCUT_SMP.KSC). Navigate to this “.KSC” (Korg Script) file and load the data as above in order to have this sample data playback in the song. Note that this will overwrite internal sample data you’ve loaded, unless you set the “KSC Allocation: Clear”...
