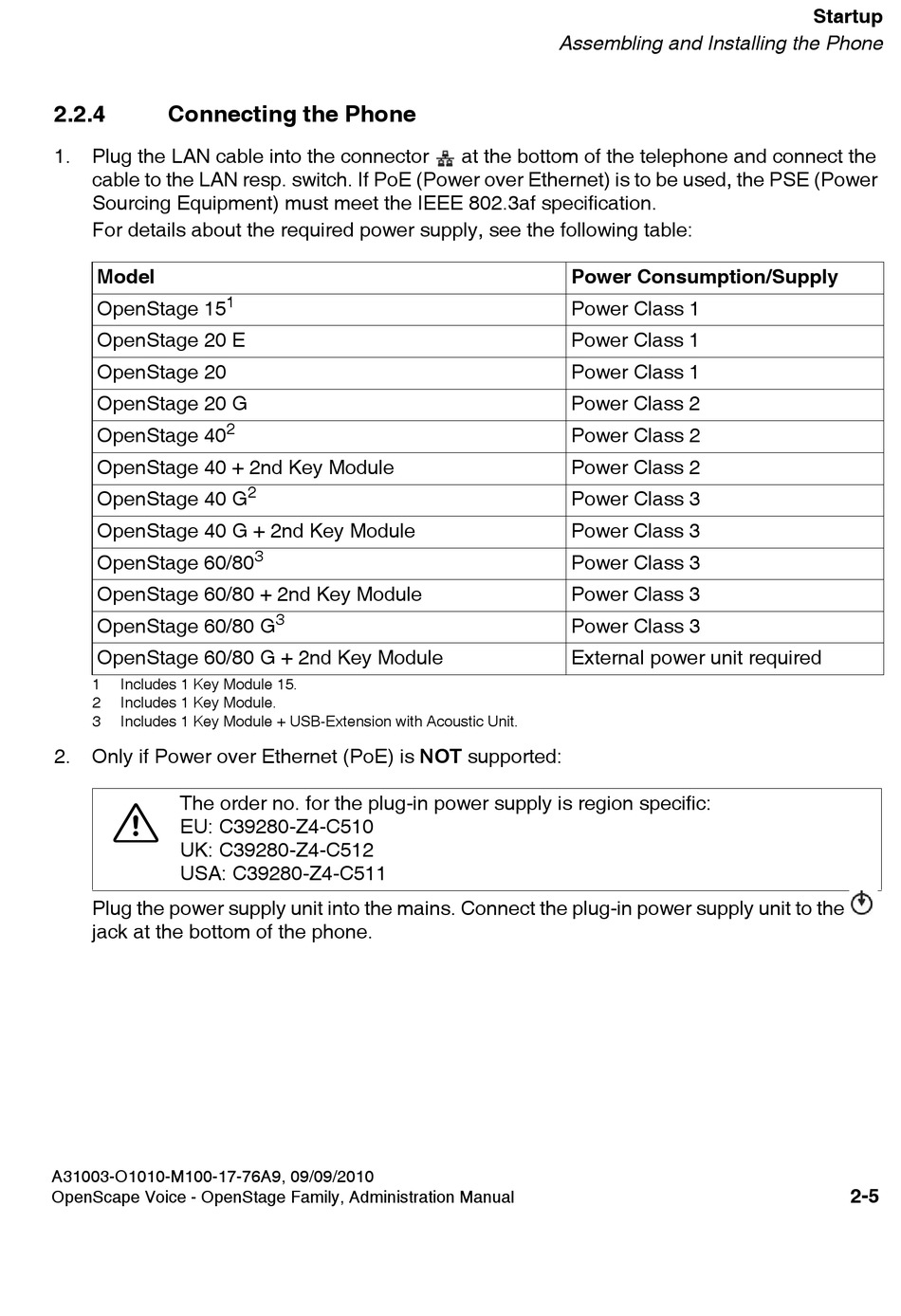

Connecting the Phone

1. Plug the LAN cable into the connector
cable to the LAN resp. switch. If PoE (Power over Ethernet) is to be used, the PSE (Power
Sourcing Equipment) must meet the IEEE 802.3af specification.
For details about the required power supply, see the following table:
Model
OpenStage 15
OpenStage 20 E
OpenStage 20
OpenStage 20 G
OpenStage 40
OpenStage 40 + 2nd Key Module
OpenStage 40 G
OpenStage 40 G + 2nd Key Module
OpenStage 60/80
OpenStage 60/80 + 2nd Key Module
OpenStage 60/80 G
OpenStage 60/80 G + 2nd Key Module
1 Includes 1 Key Module 15.
2 Includes 1 Key Module.
3 Includes 1 Key Module + USB-Extension with Acoustic Unit.
2. Only if Power over Ethernet (PoE) is NOT supported:
The order no. for the plug-in power supply is region specific:
7
EU: C39280-Z4-C510
UK: C39280-Z4-C512
USA: C39280-Z4-C511
Plug the power supply unit into the mains. Connect the plug-in power supply unit to the
jack at the bottom of the phone.
