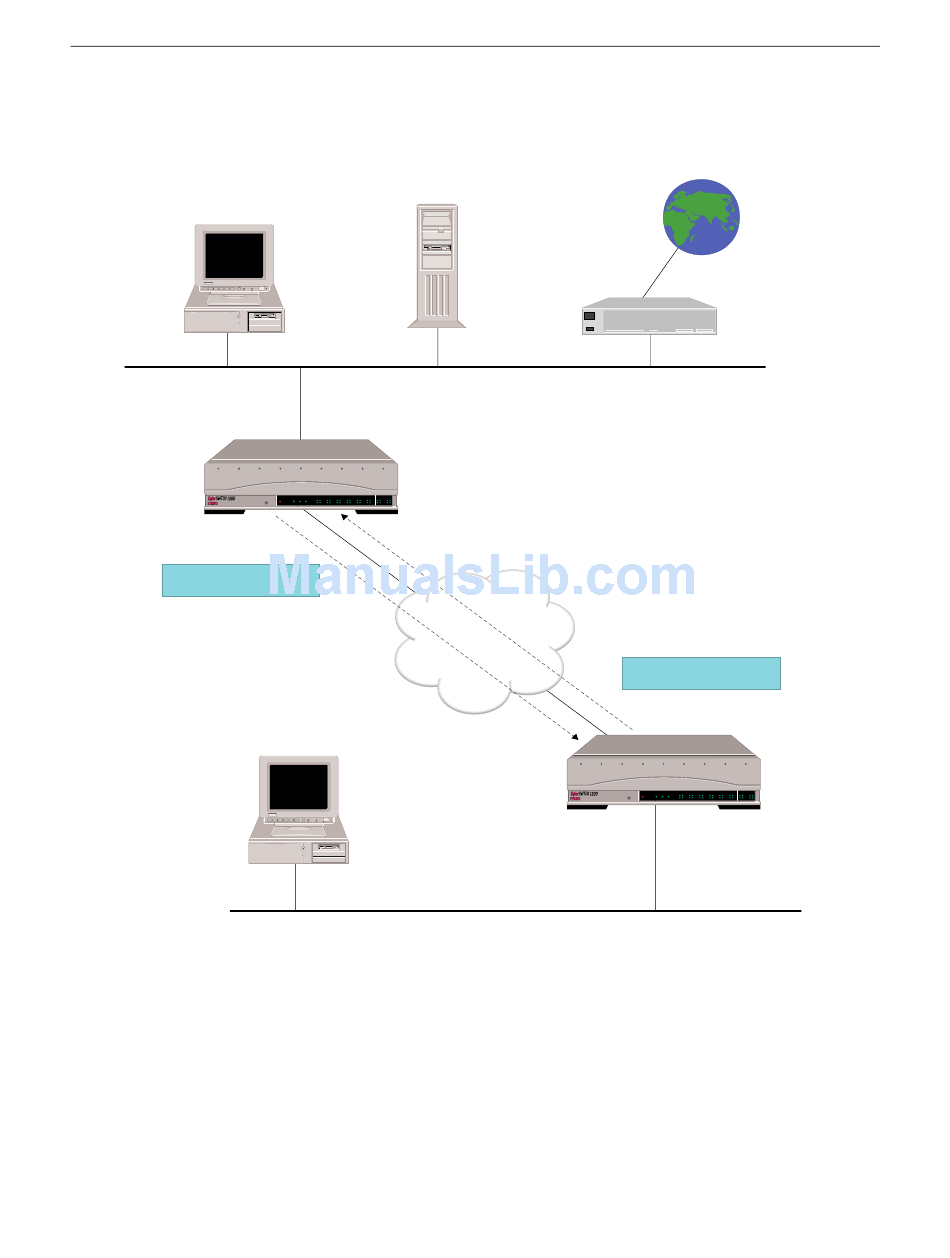

EXAMPLE NETWORKS
Host #1
128.1.1.8
CSX1200
"SITE1"
SITE1 needs static route
to SITE2
128.3.3.4
LAN 2
We now need to enter the metric value for this route. The metric value is the administrative distance
to the destination of the entry. The administrative distance is typically measured by the number of
hop counts (number of routers) between the system and the destination, but it is up to you to assign
a proper value to each route entry. If multiple routes exist to the same destination, the route with
the least metric value will be chosen as its primary route. Care must be taken when assigning the
metric value of "0", because it is interpreted that the destination is reachable directly and therefore
no intermediate router will be used. Press <return> to accept the default metric value of 2.
