DGS-3100 Series Gigabit Stackable Managed Switch User Manual
The Add ACL Profile Page contains the following fields:
Field
L2 ACL
L3 ACL
3. Define the L2 ACL or L3 ACL fields.
4. Click
filtering masks.
175

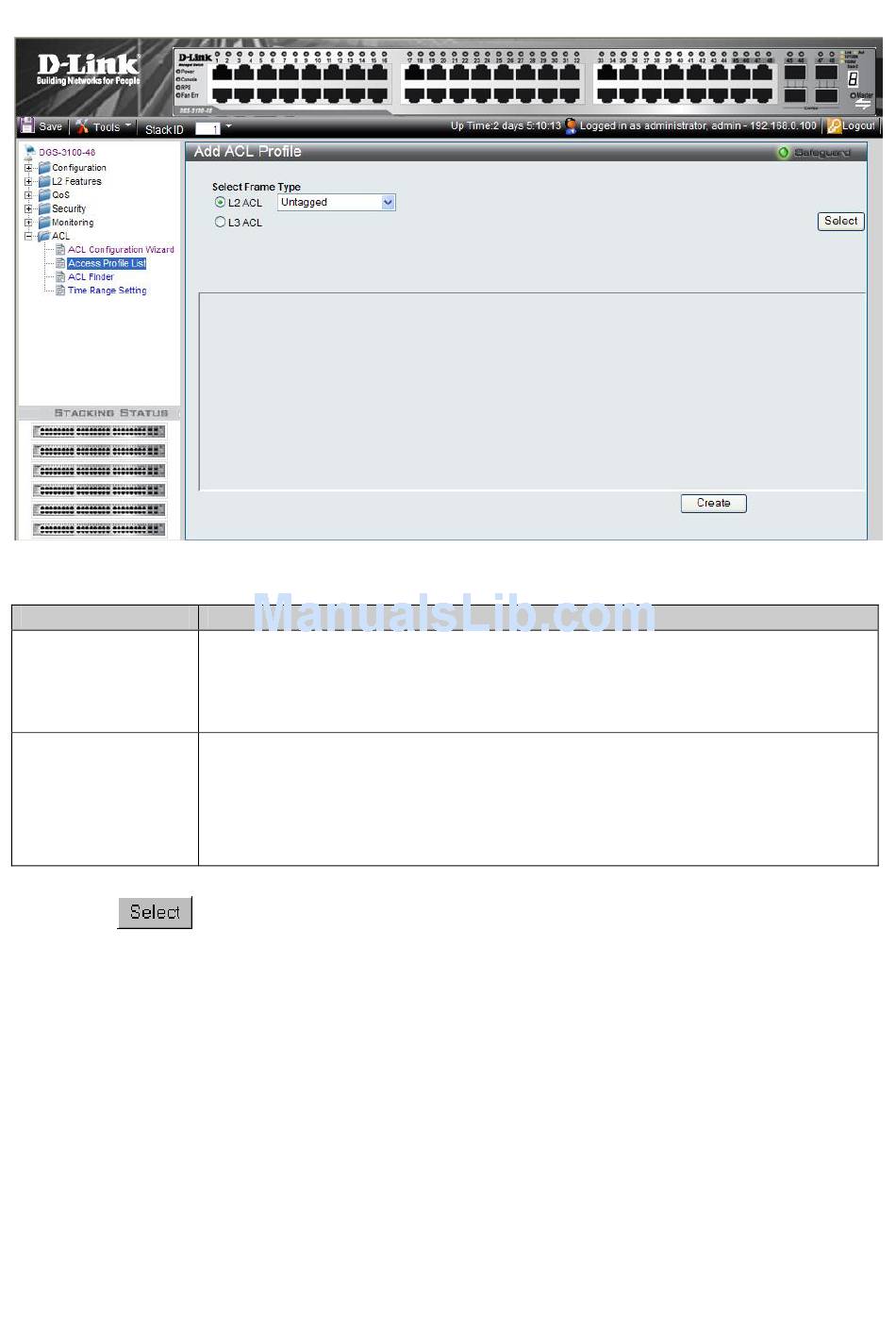

Figure 8-3 Add ACL Profile Page
Description
Defines the ACL profile Layer 2 protocols. The possible values are:
Tagged — Defines the profile Layer 2 to match 802.1Q fields in the Layer 2 header.
Untagged — Defines the profile Layer 2 to check the Layer 2 header without the 802.1Q
fields .
Defines the ACL profile Layer 3 protocols. The possible fields are:
ICMP — Specifies ICMP as the Layer 4 protocol the the access profile checks.
IGMP — Specifies IGMP as the Layer 4 protocol the the access profile checks
TCP — Specifies TCP as the Layer 4 protocol the the access profile checks.
UDP — Specifies UDP as the Layer 4 protocol the the access profile checks.
The Add ACL Profile Page updates accordingly, enabling selection of the packet field to create
