Defining Trunking

The Trunking Configuration Page contains information for assigning ports to LAGs and defining LAG parameters. To
assign ports to LAGs:
1. Click L2 Features > Trunking. The Trunking Configuration Page opens:

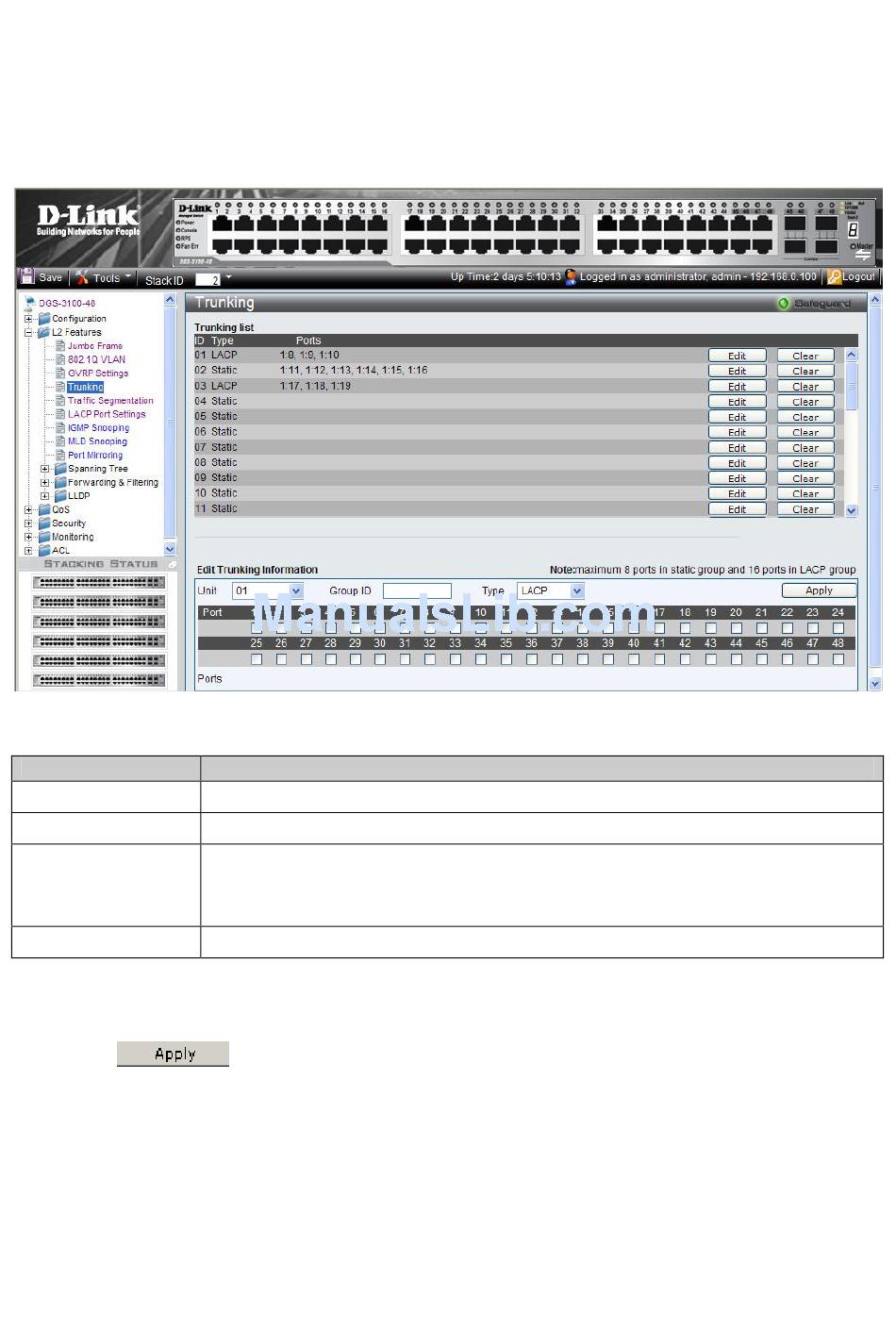

The Trunking Configuration Page contains the following fields:
Field
Unit
Group ID
Type
Ports
2. Select a stacking unit in the Unit field.
3. Define the Group ID and Type fields.
4. Check the ports to be added to the LAG. The port numbers are displayed in the Ports field.
5. Click
71
Figure 3–8. Trunking Configuration Page
Description
Defines the stacking member's Unit ID for which LAG parameters are displayed.
Displays the LAG number.
Defines the LAG type. The possible field values are:
Static — The LAG is static; LACP is disabled on the LAG. (This is the default value).
LACP — LACP is enabled on the device..
Displays the ports which are included in the LAG.
. The LAG settings are saved, and the device is updated.
