Discover Targets; Add Static Ip Address - HP StorageWorks 6100 - Enterprise Virtual Array User Manual

2. Run the Xtend SAN iSCSI application to discover and configure the EVA iSCSI targets.
The Xtend SAN iSCSI Initiator can discover targets either by static address or iSNS.
For static address discovery:
a. Click Discover Targets, and then click Discover by DNS/IP

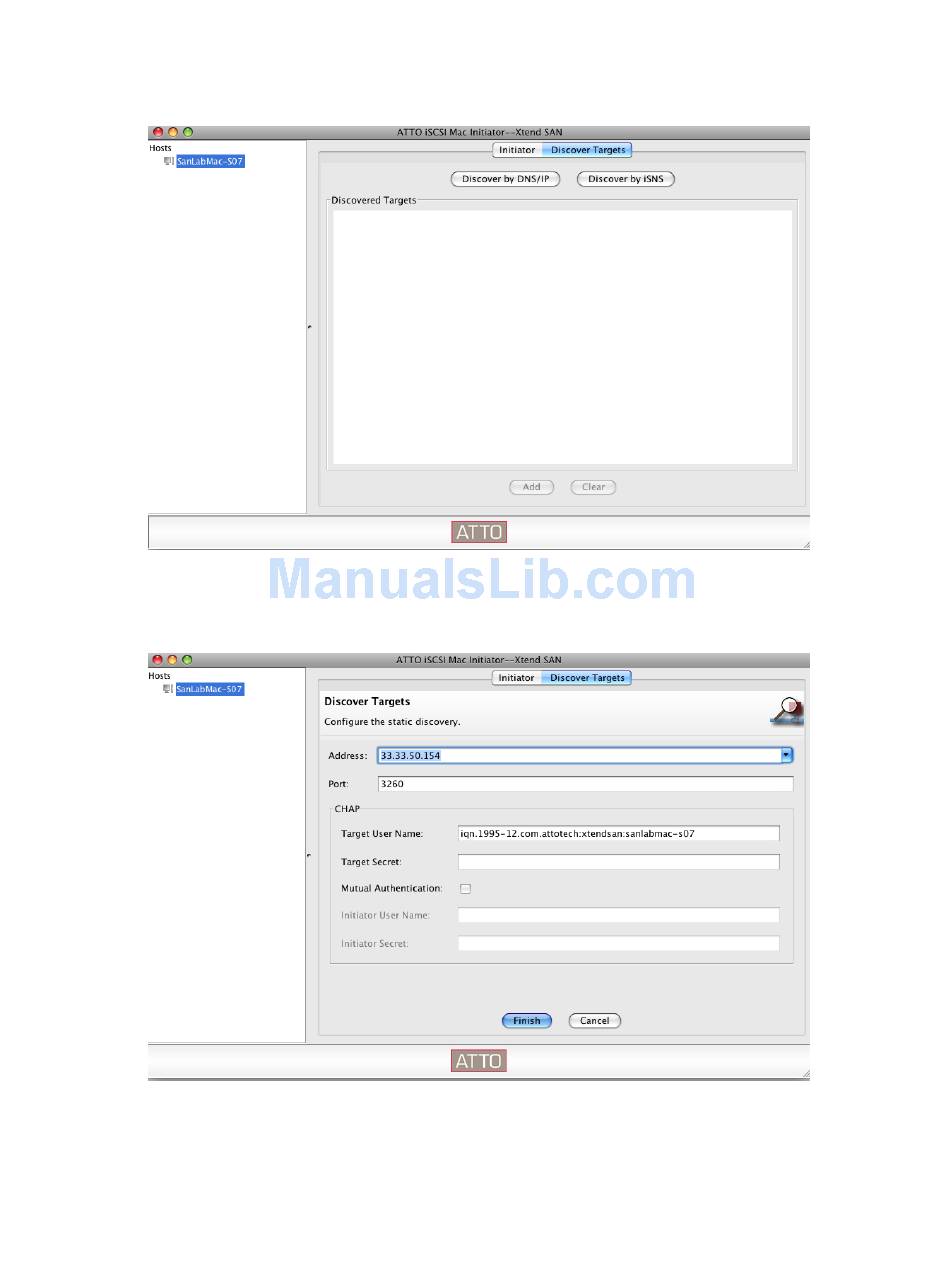

Figure 36 Discover targets
.
b. Enter the static IP address of the mpx iSCSI port in the Address box, and then click Finish
(Figure 37).
Figure 37 Add static IP address
.
c. Select a target from the Discovered Targets list and then click Add
62 MPX200 iSCSI configuration rules and guidelines
(Figure 36).
(Figure 38).
