3-site configuration with four MPX200 routers

The configuration shown in

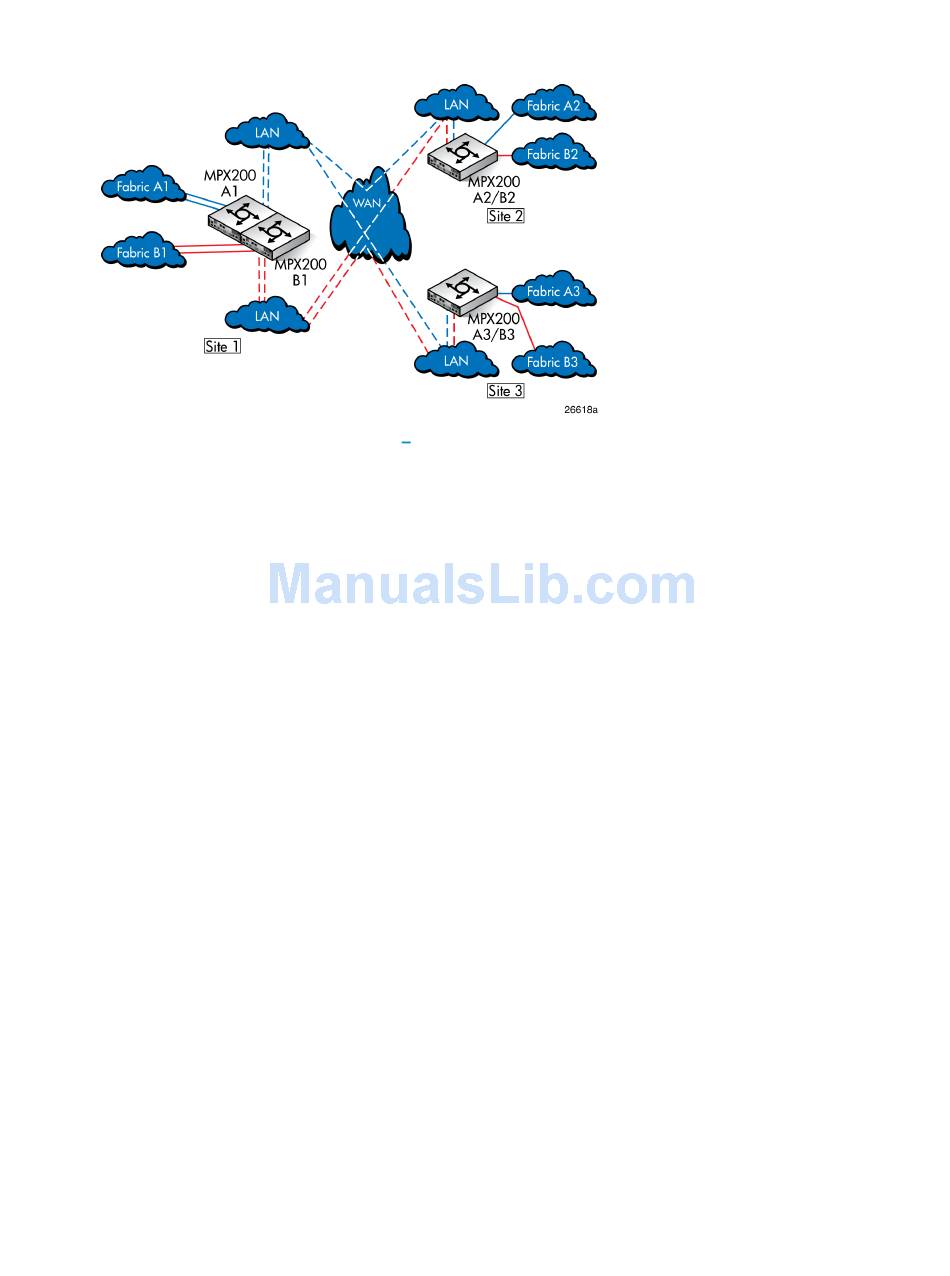

Figure 69 HP Continuous Access EVA 3 site configuration with four MPX200 routers
.

3-site configuration with six MPX200 routers

The configuration shown in
configuration shown in
Figure 69 provides long-distance link redundancy between all three sites.
Figure 70 provides the same long-distance link redundancy as the
Figure 69, with the addition of redundant MPX200 routers at sites 2 and 3.
MPX200 Multifunction Router 109
