Chapter 5
Remove the board extender now, before you connect the Battery Backup Unit.
Save the board extender for future use if you move the adapter to another system.

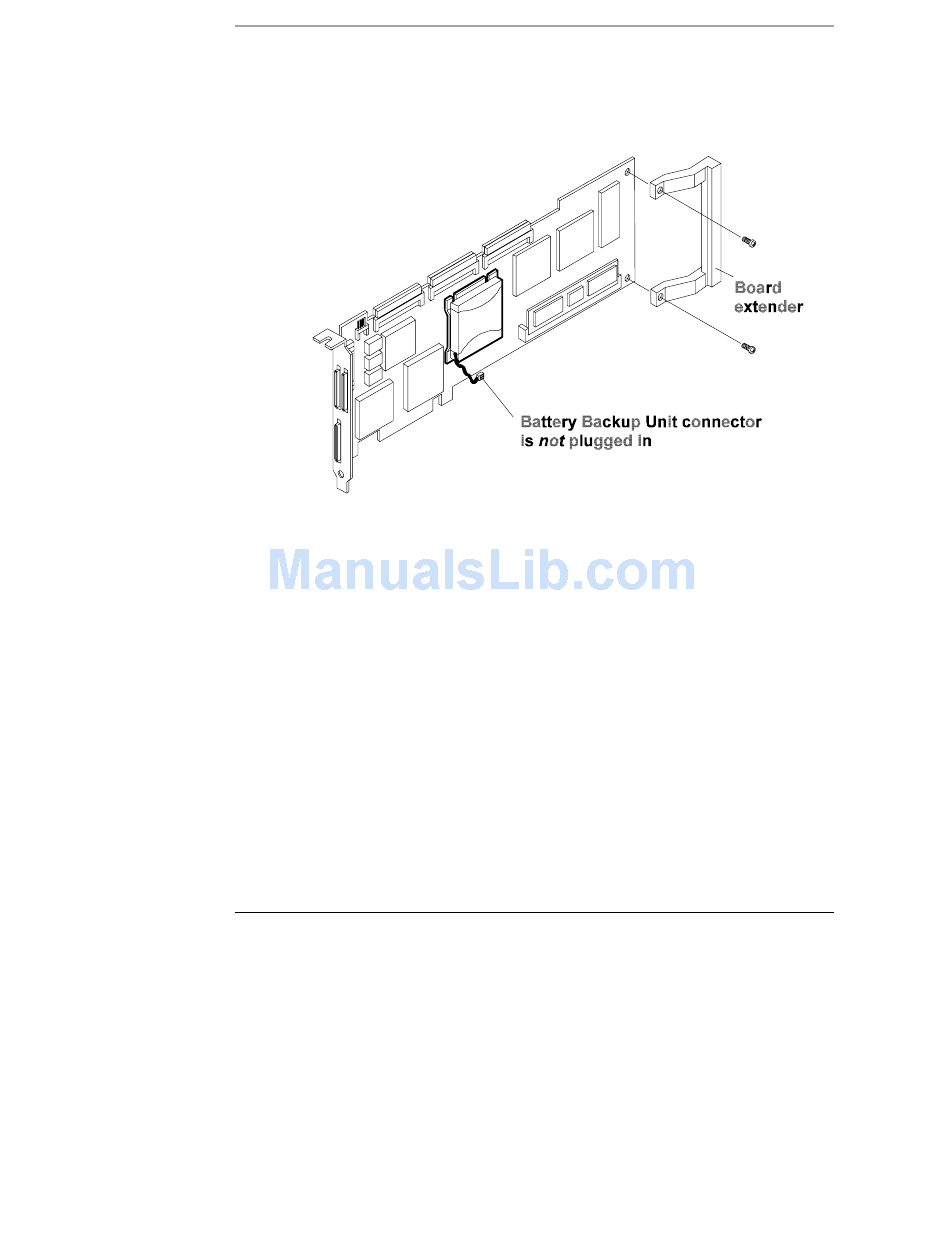

Figure 5-1. Remove Board Extender Before Installing the Adapter in

Install Additional Memory

For the HP NetRAID adapter, cache memory resides in a 4 MB battery-backed
60-ns FPM (Fast-Page Mode) DRAM SIMM. You can install an additional 16 or
32 MB of cache memory, using the D6029A SIMM Upgrade for HP NetRAID.
For the HP NetRAID-3Si adapter, cache memory resides in a 16 MB battery-
backed 60-ns DO (Extended Data Output) DRAM SIMM.
To install additional cache memory:
1. Verify that the Battery Backup Unit is not plugged in on the HP NetRAID
or HP NetRAID-3Si adapter.
2. Install the new SIMM according to the instructions supplied with the
additional memory.
44
HP NetServer LXr Pro Systems
Installation and Configuration
