Workstation Speaker; Removing The Workstation Speaker; Installing The Workstation Speaker - HP Z400 - Workstation Maintenance And Service Manual

Workstation speaker

This section describes how to remove and install the workstation speaker.

Removing the workstation speaker

To remove the workstation speaker:
1. Power down the workstation (see
2. Disconnect power from the workstation (see
3. Remove the side access panel (see
4. Remove the front bezel (see
5. Disconnect the speaker cable from the system board
6. Remove the two screws as shown
7. Slide the speaker away from the chassis and remove it from the chassis

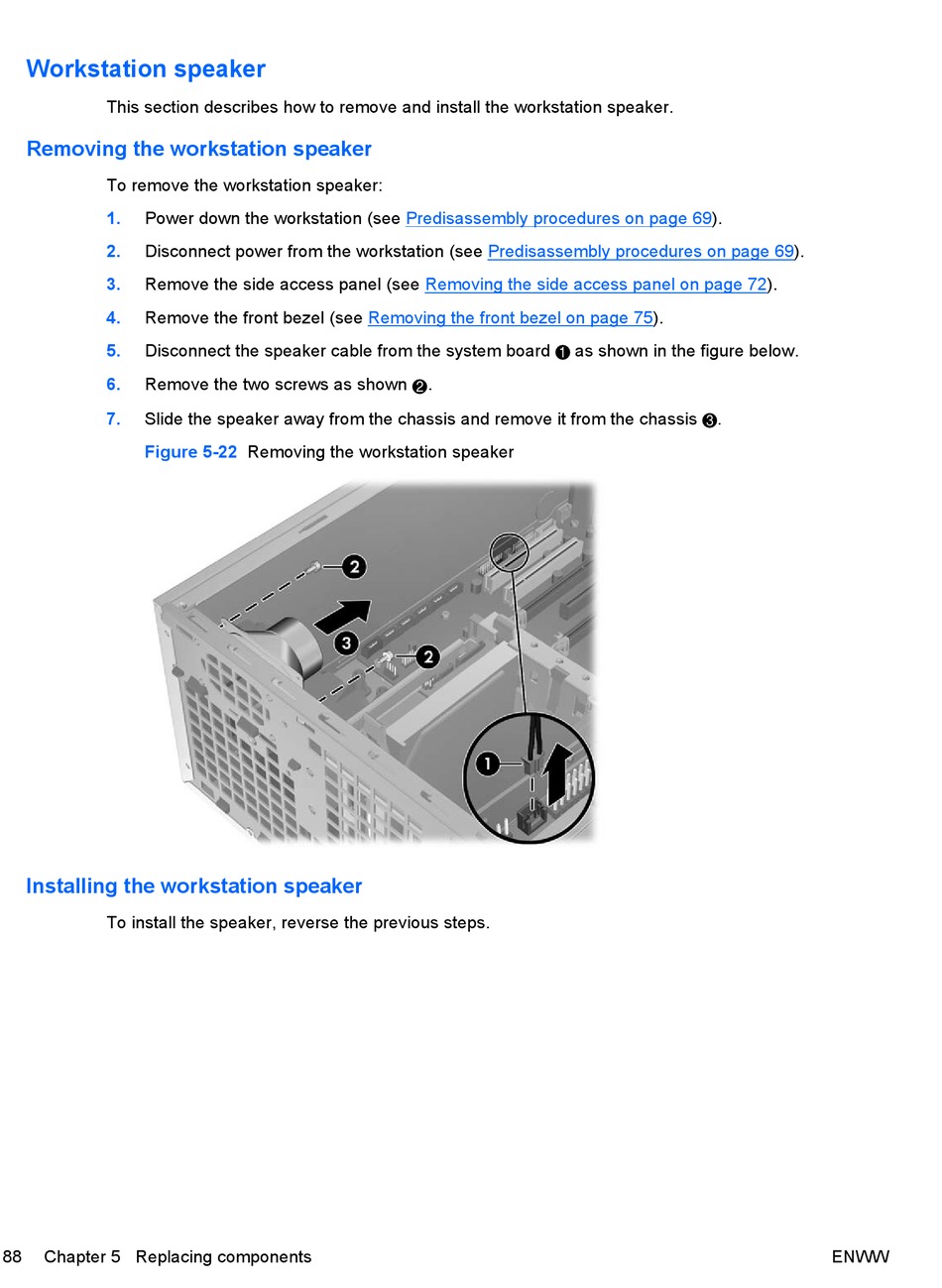

Figure 5-22

Installing the workstation speaker

To install the speaker, reverse the previous steps.
88 Chapter 5 Replacing components
