Entry/Exit Port Slider Replacement Guide

Introduction

About This Manual
This manual describes the procedure for replacing the entry/exit (E/E) port slider in
Spectra 12K and Spectra 64K libraries, and how to test the assembly after it has been
installed.
About the E/E Port Slider
The E/E port slider enables the E/E port to move in and out to load and unload tape
cartridges.

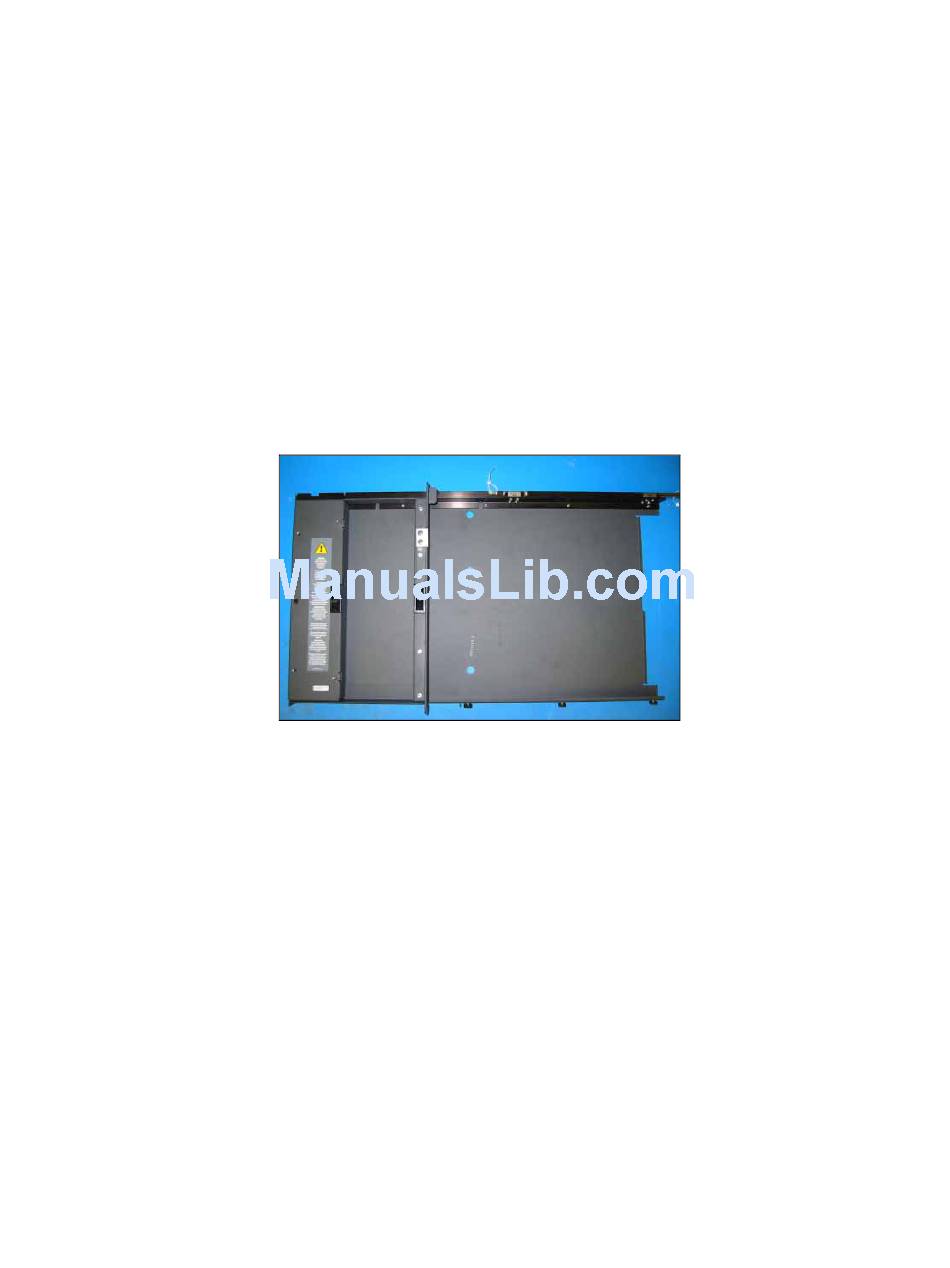

Figure 1 The E/E port slider.
Estimated Time Required
This procedure should take approximately two hours.
4
