Spectra Logic Spectra 64K Supplementary Manual page 19

5. Replace the E/E port motor.

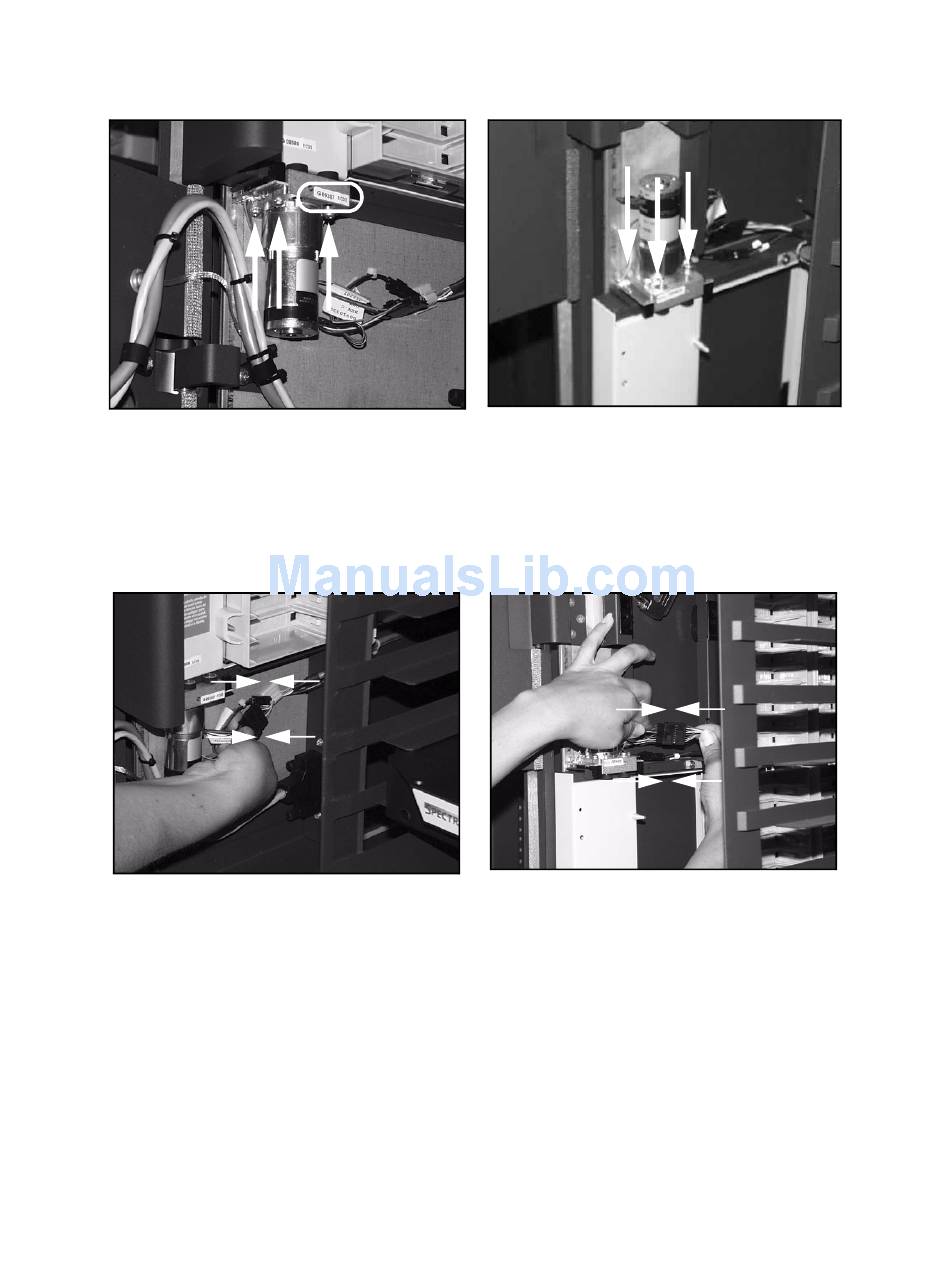

Figure 23 The E/E port motor screws and the EC number
circled (Spectra 12K library shown).
6. Connect the new E/E port motor power source and motor cables (Figure 25 and
Figure 26).
Figure 25 The E/E port motor power source and motor
cables (Spectra 12K library shown).
7. Gently move the E/E port door back and forth to ensure a smooth motion. If the
motion is not smooth, return to Step 1 and repeat the procedure.
Entry/Exit Port Slider Replacement Guide
Figure 24 The E/E port motor screws (Spectra 64K
library shown).
Figure 26 The E/E port motor power source and motor
cables (Spectra 64K library shown).
19
