Tests

Install New Picker
1. Make sure that you are logged in as a Super User.
2. Select Toolbars, then select Maintenance.
3. Select the Diagnostics icon; the Diagnostics screen displays.
4. From the Diagnostics screen, select Advanced.
5. From the Available Tests list, select Install New Picker (Figure 33).

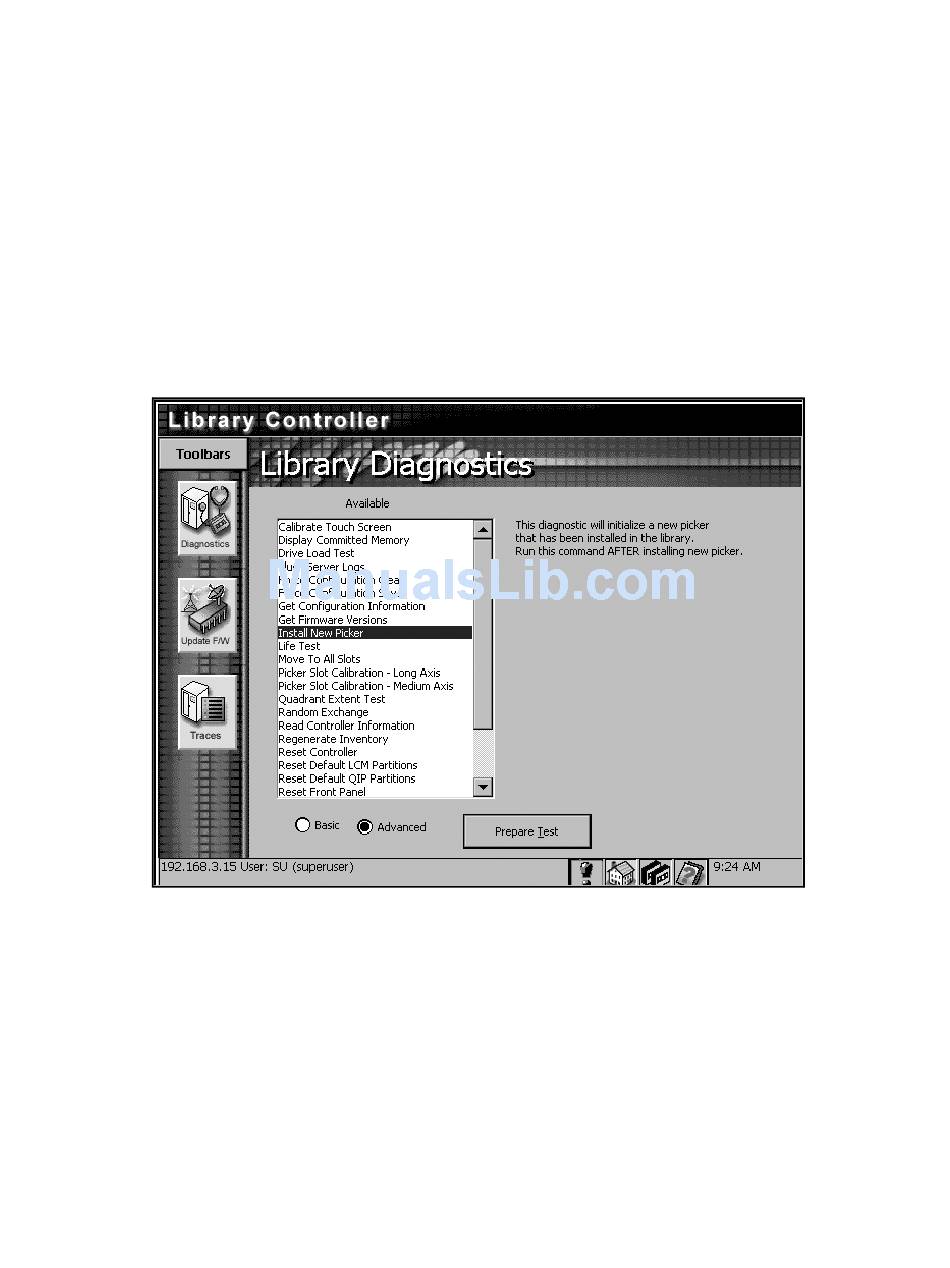

Figure 33 The Diagnostics screen, showing the Available tests menu.
6. Select Prepare Test.
7. From the Diagnostics Configuration window, select Run Test (there are no
parameters for this test).
8. Once the picker has finished running the test, a message will appear reading
Install New Picker Succeeded; select OK to clear this message.
If this message does not appear, proceed as normal.
9. Proceed to Open the Entry/Exit Port on page 25.
Entry/Exit Port Slider Replacement Guide
24
