8. Remove the five screws using a 2.5 mm hex screwdriver. You will need to move the
slider back and forth to gain access to all the screws. You may also need to use the
holes within the slider to access some of the screws as shown in Figure 19.
9. Using a flat-head screwdriver, remove the Stop that keeps the E/E port from sliding
all the way out (Figure 20), but do not remove the slider yet.
Caution:
Do not pull out the E/E port without holding on to the slider.
The slider is equipped with ball bearings that may fall out if the
slider and E/E port are removed separately.
Entry/Exit Port Slider Replacement Guide

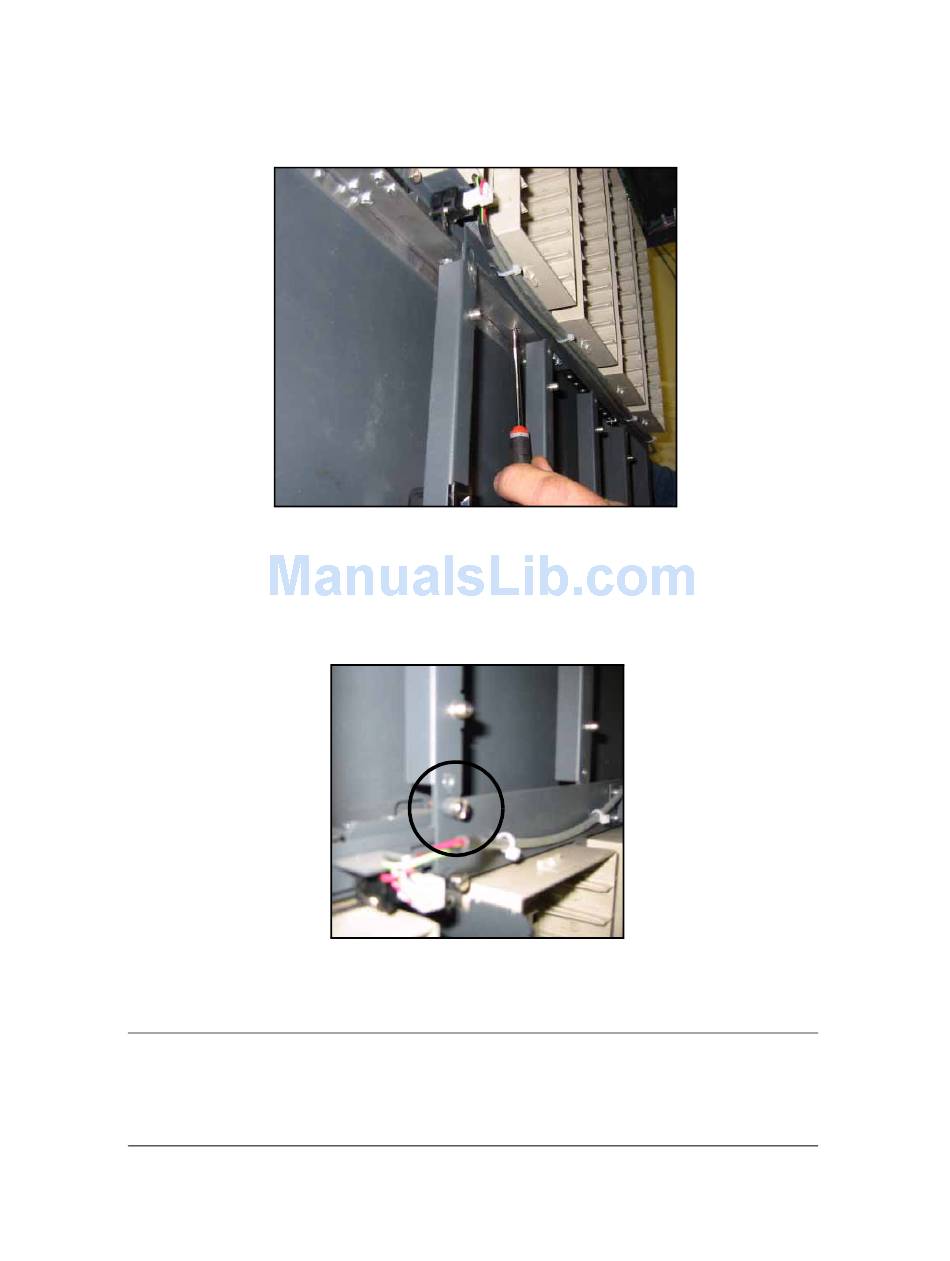

Figure 19 Use the holes on the slider to access screws.
Figure 20 Remove the Stop.
