Spectra Logic Spectra 64K Supplementary Manual page 21

2. Carefully slide the robotic rack assembly all the way into the library (Figure 29).
3. Using the #2 Phillips screwdriver, tighten the screws that hold the robotic rack
assembly to the chassis: first the bottom, then the top (Figure 30).
Entry/Exit Port Slider Replacement Guide

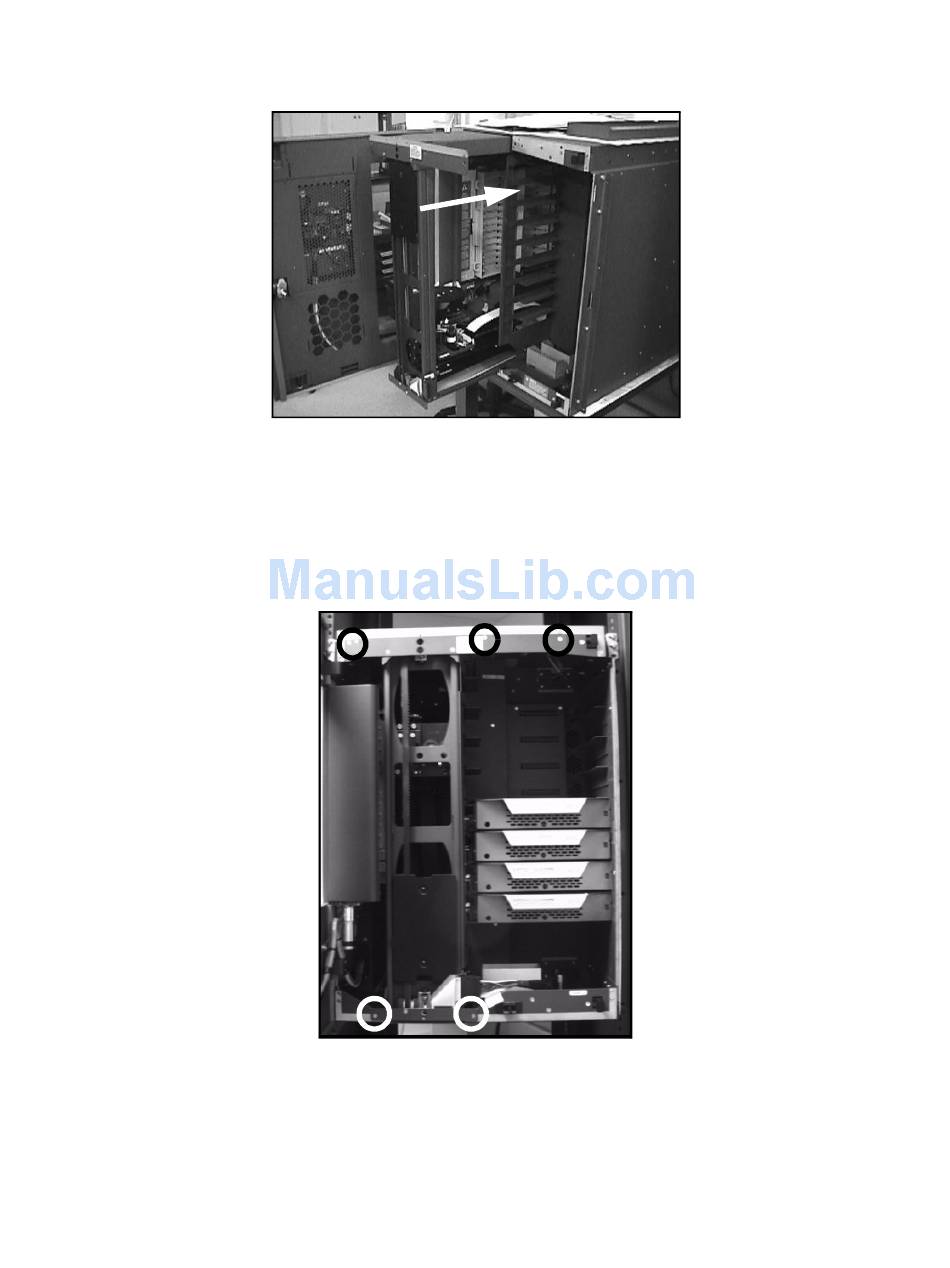

Figure 29 The robotic rack assembly is moved all the way into
the library (Spectra 12K library shown).
Figure 30 The robotic rack with the screws
circled (Spectra 12K library shown).
21
