5. Pull the E/E port out and remove the cartridge pack (Figure 17).
6. Remove the four plastic magazines directly behind the E/E port, and remove the
five magazines directly above the E/E port, if you are replacing the top slider, or
directly below the E/E port, if you are replacing the bottom slider.
Note:
Remove the magazine closest to the E/E port first. Make a note of
where each magazine location. They will need to go back in the
exact same location from where they were removed.
7. Note the location of the screws holes that indicate where the five screws that hold
the slider in place are located. You will need to remove these five screws in order
to remove the slider (Figure 18).
Entry/Exit Port Slider Replacement Guide

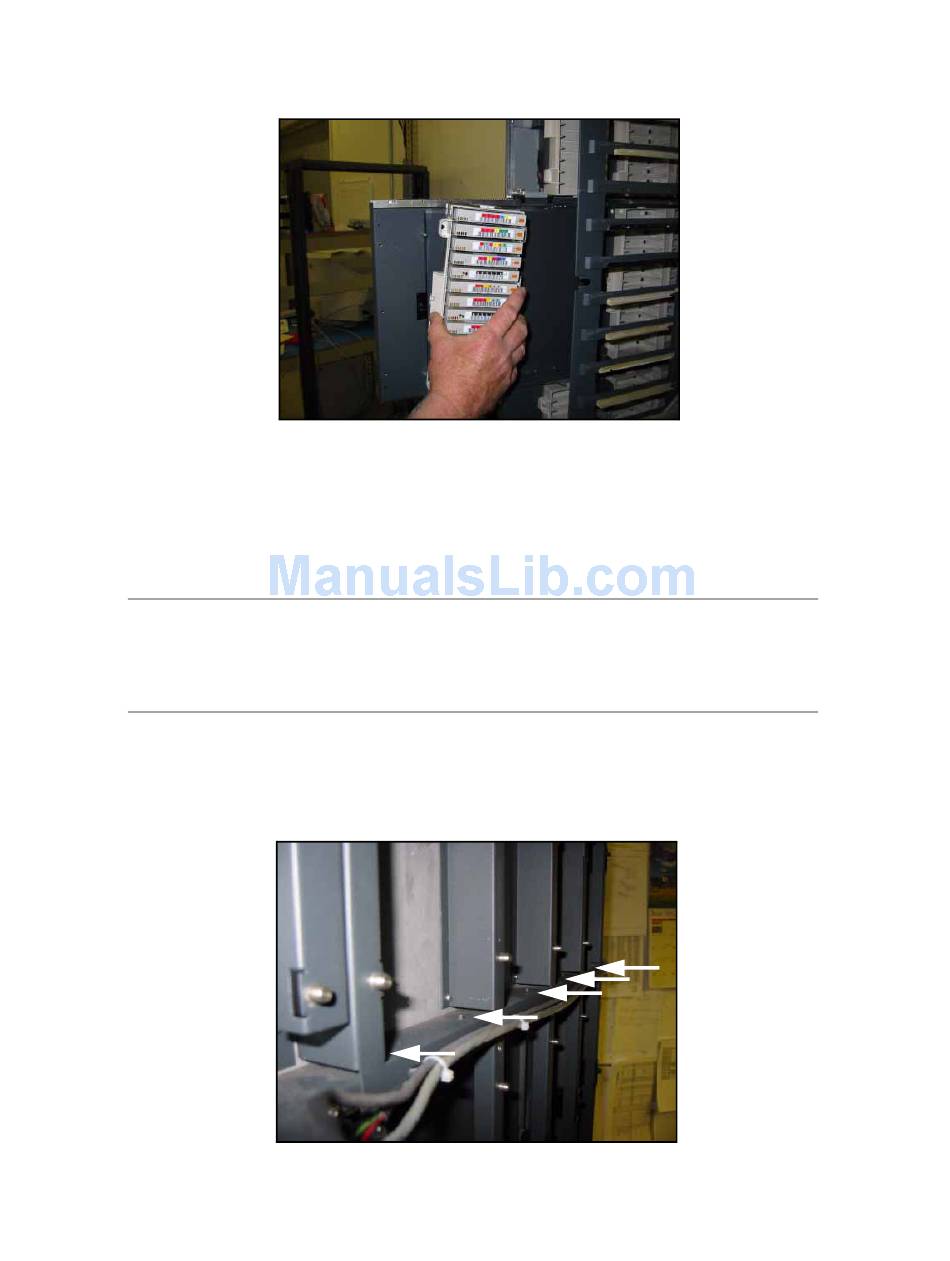

Figure 17 Pull out E/E port and remove magazine pack.
Figure 18 Location of screws.
