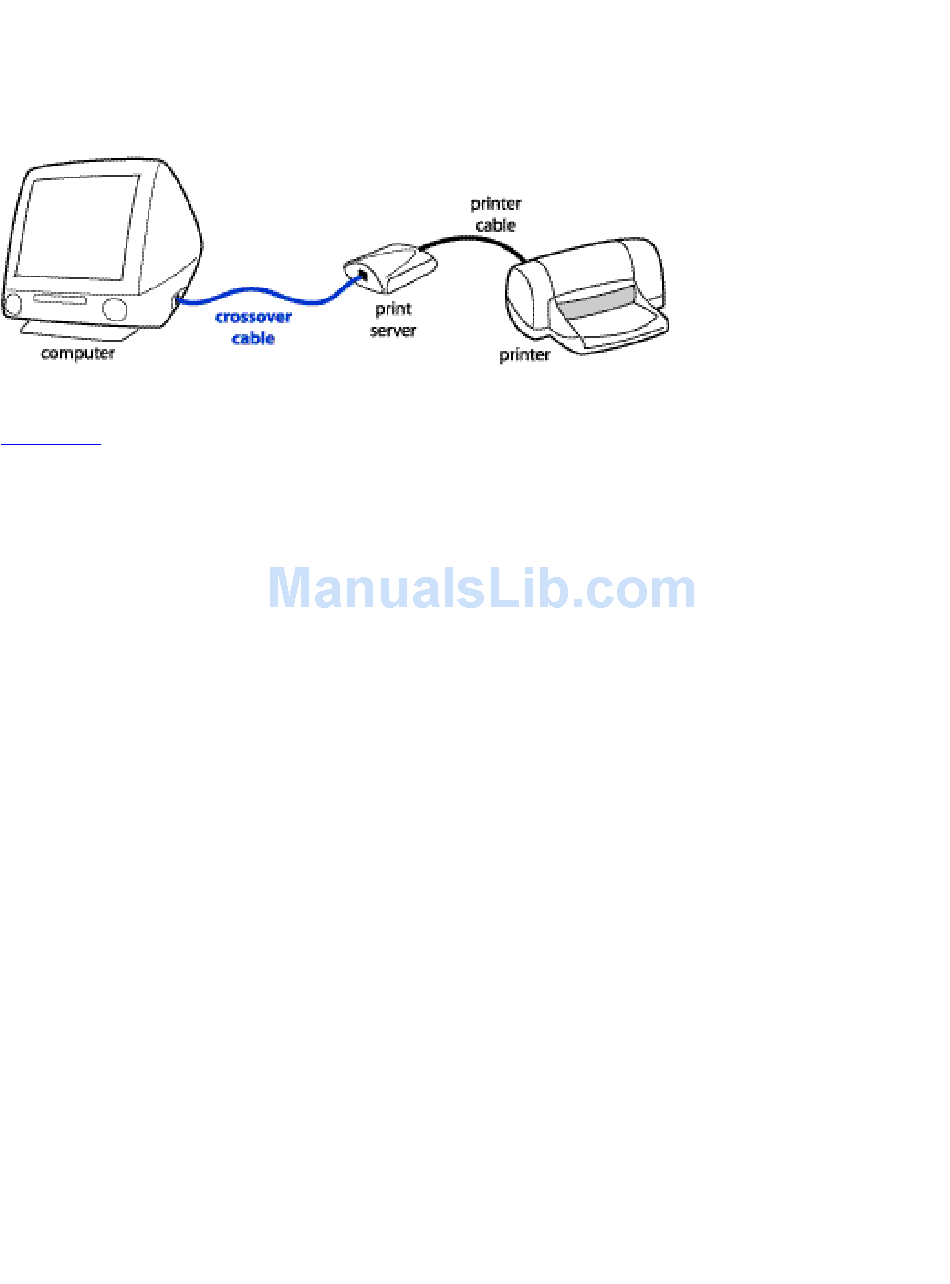

available as HP part number C6080-60015. Connect it from the network connector on the Macintosh to
the network connector on the print server, as shown in the illustration below. If your print server is an
external model, connect a printer cable between the print server and the printer. The illustration shows a
typical print server and printer; yours may look different, but the basic cabling scheme will be the same.
Note that we have omitted power cords from this drawing to keep things simple.
Crossover connection for fast direct printing
