ProSafe 20-AP Wireless Controller WC7520 Reference Manual

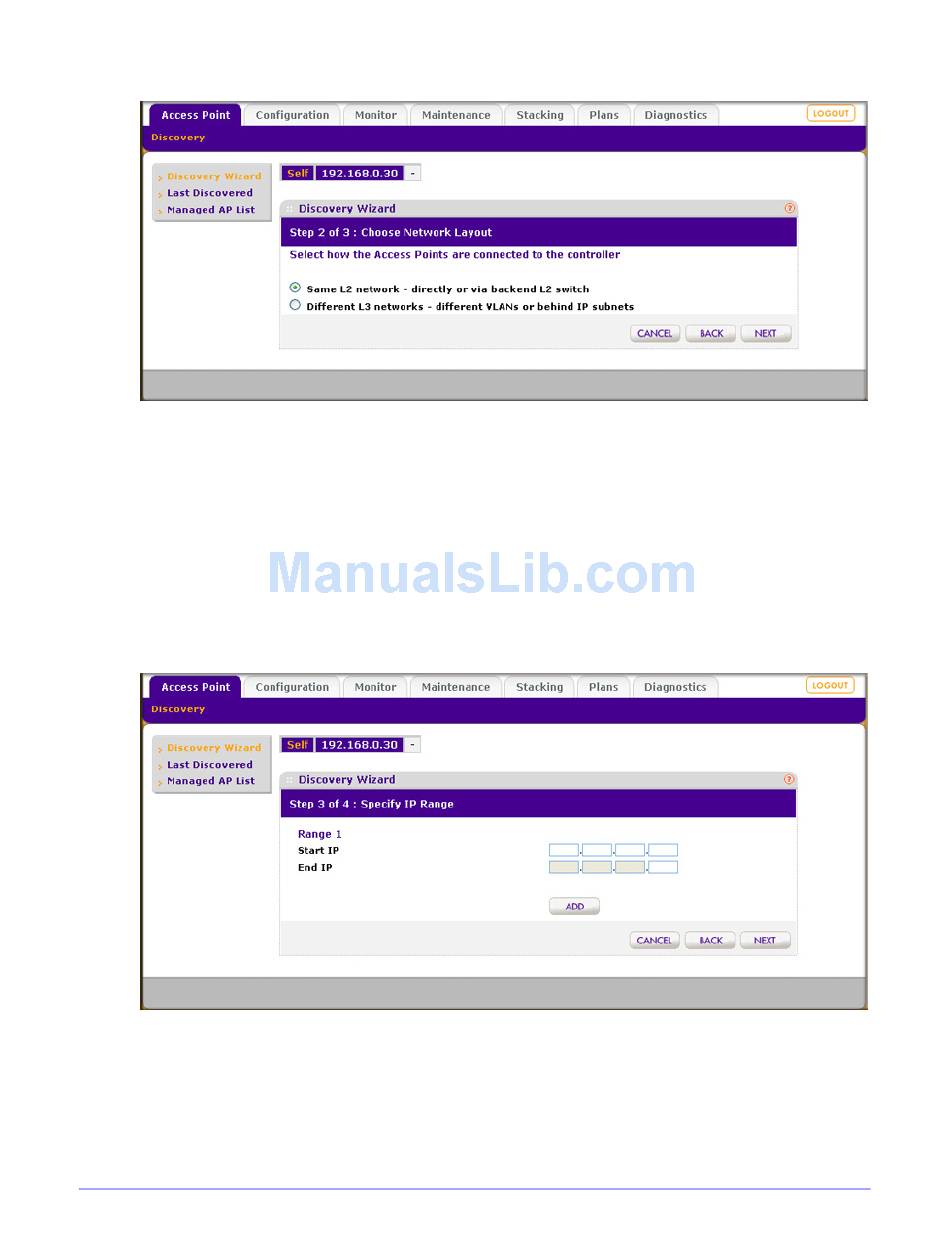

Figure 20. Discovery Wizard: Choose Network Layout
4. Select the radio button that specifies the network layout of the access points and click Next.
• Same L2 network. Discover all access points on the LAN that are in the same IP
subnet and are connected to the wireless controller either directly or through a
backend layer 2 switch.
• Different L3 networks - different VLANs or behind IP subnets. Discover access points
that are in different IP subnets and that are connected to the wireless controller through a
router
5. If prompted, fill in the Start IP and End IP fields to specify a range of IP addresses in which
the wireless controller must discover access points.
Figure 21. Discovery Wizard: Specify IP Range
• As an option, click Add to add an additional IP address range for the wireless
controller to search in. You can add a maximum of three IP ranges.
• You can search a maximum of 255 IP addresses at a time. Do several searches if you
have access points in several networks.
