Defining and Editing Buildings and Floors

This section explains how you can define your buildings and floors, and make modifications
after you have defined them. You can add a maximum of three buildings.
To define a building:

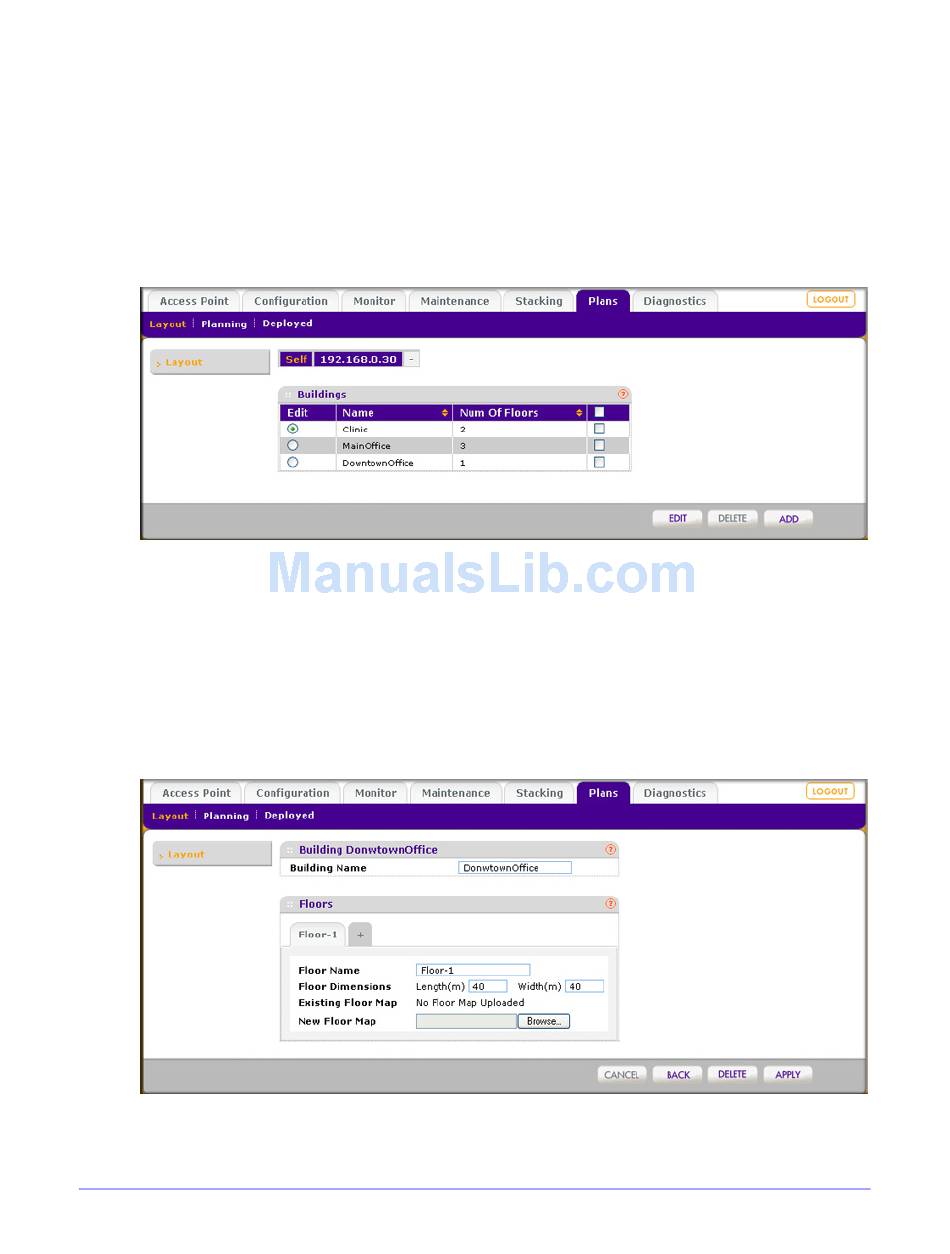

1. Select Plans > Layout. The Layout Buildings screen displays.
.
Figure 13.
2. The Buildings table shows the names of the previously defined buildings and their number of
floors.
3. To add a building, click Add. The Add Building popup window displays.
4. Enter a name for your building in the Building Name field, and then click Add. The new
building is added to the Buildings table. The name is an alphanumeric string up to 64
characters in length.
5. To define the floors of the building, select the radio button that corresponds to the building,
and then click Edit. The Layout Floors screen displays.
Figure 14.
Chapter 3: RF Planning | 38
